Model
Hotpoint CTX14EYSDRWH
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX14EYSDRWHRefrigerator
3 diagrams147 parts
Parts Sections (3)

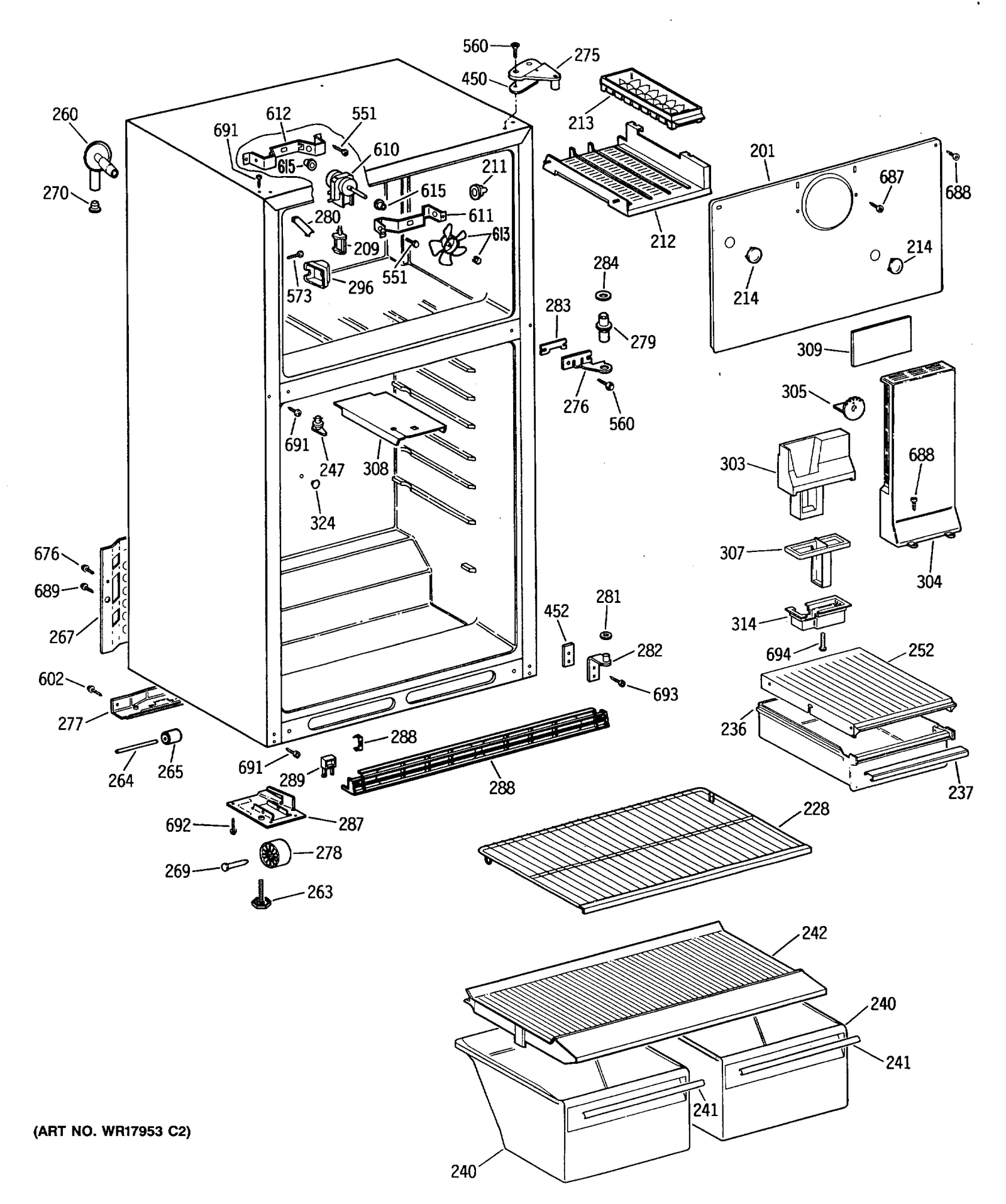

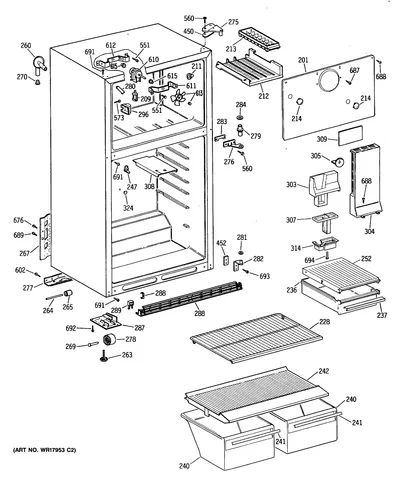

Diagram
Parts List
Parts in Parts List
76 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 14 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 201 |  | WR14X0379NLA FOAM STRIP SE ADH | Discontinued |
| 201 | | COVER EVAP ASM | - |
| 209 | | WR02X7015NLA SUPPORT TWIST FZ SHELF | Discontinued |
| 209 | | WR2X8243replaces WR02X8243 SUPPORT TWIST FZ SHELF | - |
| 211 |  | WR2X8429replaces WR02X8429 SUPPORT SHLF | $6.88 Parts Dr |
| 212 | | SHELF ICE TRAY | - |
| 213 |  | WR30X311replaces WR30X0276 TRAY ICE WHITE | $5.09 Part Advantage |
| 214 | – | WR01X1332 RIVET-PLASTIC | - |
| 214 |  | WR02X11760replaces WR02X7148 PLUG BUTTON | $5.09 Part Advantage |
| 228 |  | WR71X10378replaces WR71X2089 SHELF ASM STATIONARY | $151.30 Part Advantage |
| 228 |  | WR87X28948replaces WR85X0287 LOW SIDE REPL KIT | $180.32 Part Advantage |
| 233 | | WR2X7018replaces WR02X7018 SPACER TRACK | - |
| 236 | – | WR32X1113 MEAT PAN | - |
| 237 | – | WR38X2015 HANDLE MT. PAN | - |
| 240 |  | WR32X10340replaces WR32X1154 PAN VEG TWIN LOW | $65.26 Part Advantage |
| 241 | | HANDLE VEG PAN | - |
| 242 |  | WR32X10398replaces WR32X1094 COVER PAN LOW | $51.49 Part Advantage |
| 247 | | WR02X8242NLA SUPPORT TWIST CONTROL | Discontinued |
| 252 | – | WR32X1227 MT. PAN COVER | - |
| 260 | | WR02X8228NLA GROMMET WATER FILL | Discontinued |
| 263 |  | WR2X7877replaces WR02X7877 GLIDER ADJ | $9.70 RepairClinic |
| 264 | | WR02X8214NLA AXLE WHEEL REAR | Discontinued |
| 265 | | WR2X8245replaces WR02X8245 WHEEL MOBILITY REAR | $32.22 RepairClinic |
| 267 | | COVER ACCESS ASM RECIP. | Discontinued |
| 269 | – | WR02X8213 AXLE WHEEL FRT | - |
| 270 |  | WR2X8247replaces WR02X8247 PLUG BUTTON WATER FILL | - |
| 275 | | WR13X598replaces WR13X0598 HINGE TOP & SHIM ASM | - |
| 276 | – | WR13X0597 HINGE CTR & SHIM ASM | - |
| 276 | | WR13X0650NLA HINGE CTR | Discontinued |
| 277 | | RAIL REAR | - |
| 278 | – | WR02X8244 WHEEL, FRONT | - |
| 279 | | WR02X8232NLA PIN HINGE CTR | Discontinued |
| 280 | – | WR02X8465 CAP CORNER (WH) | - |
| 281 |  | WR1X1797Dreplaces WR01X1797 WASHER HINGE .495ID | - |
| 282 | | WR13X596replaces WR13X0596 HINGE BTM ASM | - |
| 283 | – | WR02X8240 SHIM HINGE CTR | - |
| 284 |  | WR1X1794replaces WR01X1794 SPACER DOOR FZ | $6.91 Parts Dr |
| 287 | | WR2X8708replaces WR02X8708 GUSSET RH | - |
| 287 | | WR2X8709replaces WR02X8709 GUSSET LH | - |
| 288 | | WR02X7646NLA CLIP BASE GRILLE | Discontinued |
| 288 | – | WR74X0197 GRILLE BASE ASM | - |
| 289 | | WR2X8220replaces WR02X8220 CAP GRILLE | - |
| 296 | – | WR02X8225 COVER IM RECEPTACLE | - |
| 303 |  | WR2X8462replaces WR02X8462 DUCT FOAM | $26.17 Parts Dr |
| 304 | | WR17X2629NLA DUCT AIR FZ | Discontinued |
| 305 | – | WR02X8431 ACTUATOR AIR | - |
| 307 | | DIFFUSER AIR FF | Discontinued |
| 308 | | WR2X8248replaces WR02X8248 INSUL ELECT | - |
| 309 | – | WR02X8246 GASKET AIR DUCT | - |
| 314 | | WR2X8464replaces WR02X8464 DIFFUSER ORIFICE | - |
| 324 |  | WR2X7051replaces WR02X7051 PLUG BUTTON | - |
| 450 | | WR2X8871replaces WR02X8871 SHIM HINGE TOP | - |
| 452 | | WR02X8870NLA SHIM HINGE BTM | Discontinued |
| 551 | | WZ04X0244NLA SCREW-FRONT | Discontinued |
| 560 | | WR01X1249NLA SCREW | Discontinued |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 573 | – | WZ04X0254 SCREW | - |
| 602 |  | WR1X1591replaces WR01X1591 SCR 1/4-14 X 3/4 | - |
| 610 | | MOTOR EVAP FAN | Discontinued |
| 611 | | WR02X8216NLA BRACKET EVAP FAN FRT | Discontinued |
| 612 | | WR02X8217NLA BRACKET EVAP FAN REAR | Discontinued |
| 613 |  | WR60X114replaces WR02X3198 COMP. RING, EVAP. FAN | $14.23 Part Advantage |
| 613 | | WR60X114replaces WR60X0114 FAN BLADE EVAP MOTOR | $14.23 Part Advantage |
| 615 | | GROMMET EVAP FAN | Discontinued |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 687 | – | WZ05X0194 SCREW | - |
| 688 |  | WR01X10448replaces WR01X1793 SCR 8-19 HI/LO 1 | $5.72 Part Advantage |
| 691 | | WR01X1644NLA SCR 10-32 GX HXW 1/2 S | Discontinued |
| 692 |  | WZ4X416replaces WZ04X0416 SCR 8-18 AB HXW 3/4 | $14.95 ApplianceParts Pro |
| 693 |  | WR1X1754Dreplaces WR01X1754 SCREW 12-24 | - |
| 694 | | WR1X1749replaces WR01X1792 SCREW | - |
| 750 |  | WR1X1786replaces WR01X1786 SCR 10-32 TR 1/2 | $7.37 ApplianceParts Pro |
| 760 | – | WR01X1717 SCR | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
