Model
Hotpoint CTX14EYSJRWH
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX14EYSJRWHRefrigerator
3 diagrams143 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
35 parts

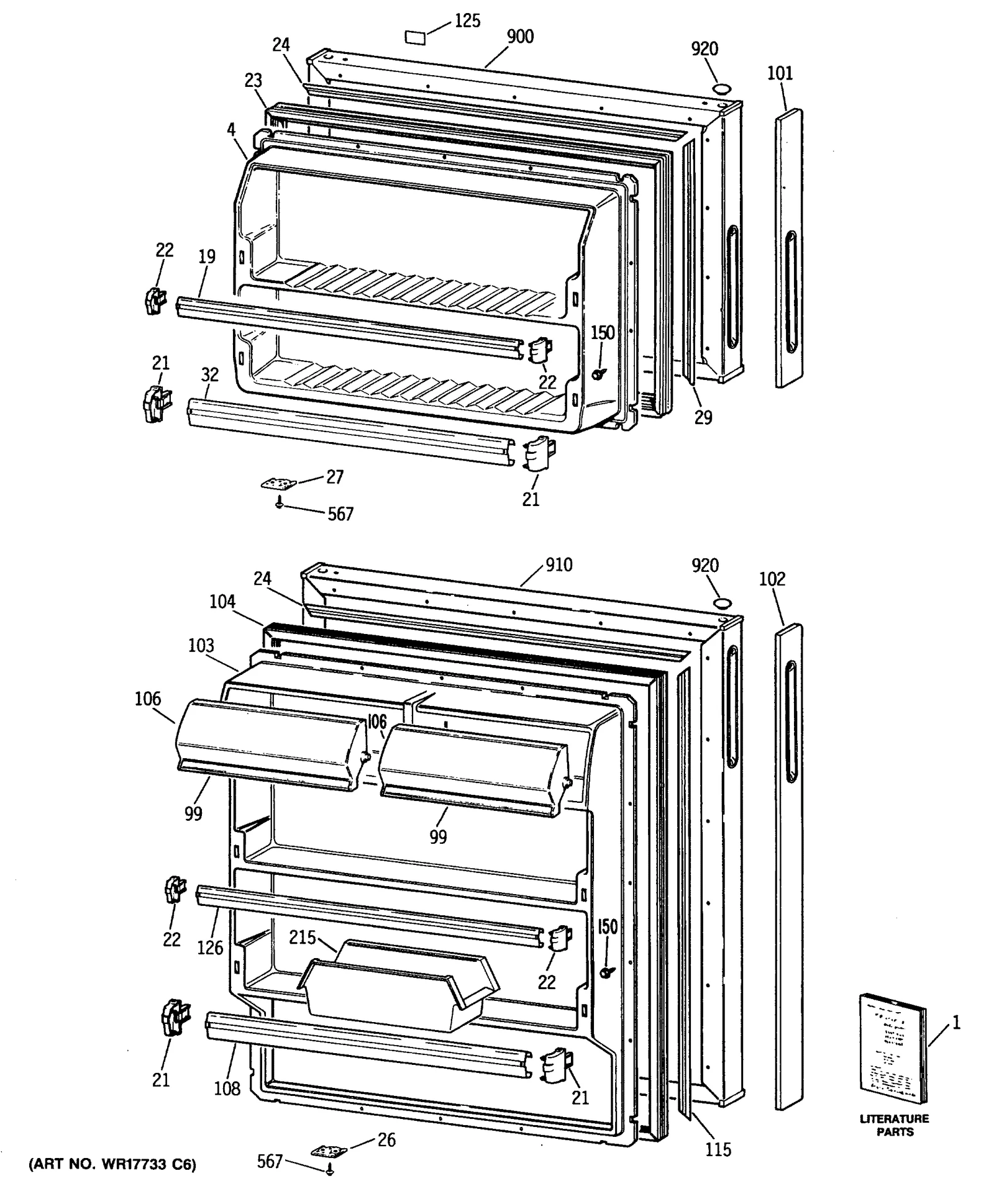

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 39-6294 GUIDE OWNERS | - |
| 1 | – | SR2891 TECHNICAL DATA SHEET | - |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 19 | – | WR17X3403 FRONT DOOR SHELF | - |
| 21 |  | WR2X7975replaces WR02X7975 CAP SHELF FRT | $21.63 Part Advantage |
| 22 |  | WR02X8221NLA CAP SHELF FRT | Discontinued |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 | | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 32 | – | WR17X3402 FRONT DOOR SHELF | - |
| 99 | – | WR38X2014 TRIM DAIRY DOOR | - |
| 101 | | WR38X1533NLA HANDLE POCKET DOOR FZ WH | Discontinued |
| 102 | | HANDLE POCKET DOOR FF | - |
| 103 | – | WR77X0549 DOOR INNER FF | - |
| 104 |  | WR24X10231replaces WR24X0518 GASKET DOOR FF | $58.06 Part Advantage |
| 106 | | WR22X489replaces WR22X0489 DOOR DAIRY | - |
| 108 | – | WR17X3401 FRONT DOOR SHELF | - |
| 115 | | WR02X8237NLA RETAINER STRIP VERT | Discontinued |
| 125 | | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 126 | – | WR17X3404 FRONT DOOR SHELF | - |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 215 | | WR32X0897NLA BUCKET UTILITY WH | Discontinued |
| 233 | | WR2X7018replaces WR02X7018 SPACER TRACK | - |
| 494 |  | WD1X1459replaces WD01X1459 INSULATOR HSNG TERM | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 750 |  | WR1X1786replaces WR01X1786 SCR 10-32 TR 1/2 | $7.37 ApplianceParts Pro |
| 760 | – | WR01X1717 SCR | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
| 900 | – | WR78X8244 FZ O.DOOR WH W/O TRIM | - |
| 910 | – | WR78X8242 FF O. DOOR WH W/O TRIM | - |
| 920 |  | WR2X8233replaces WR02X8233 PLUG BUTTON THIMBLE WH | $14.95 ApplianceParts Pro |
