Model
Hotpoint CTX14WAYAWH
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX14WAYAWHRefrigerator
3 diagrams115 parts
Parts Sections (3)
Diagram

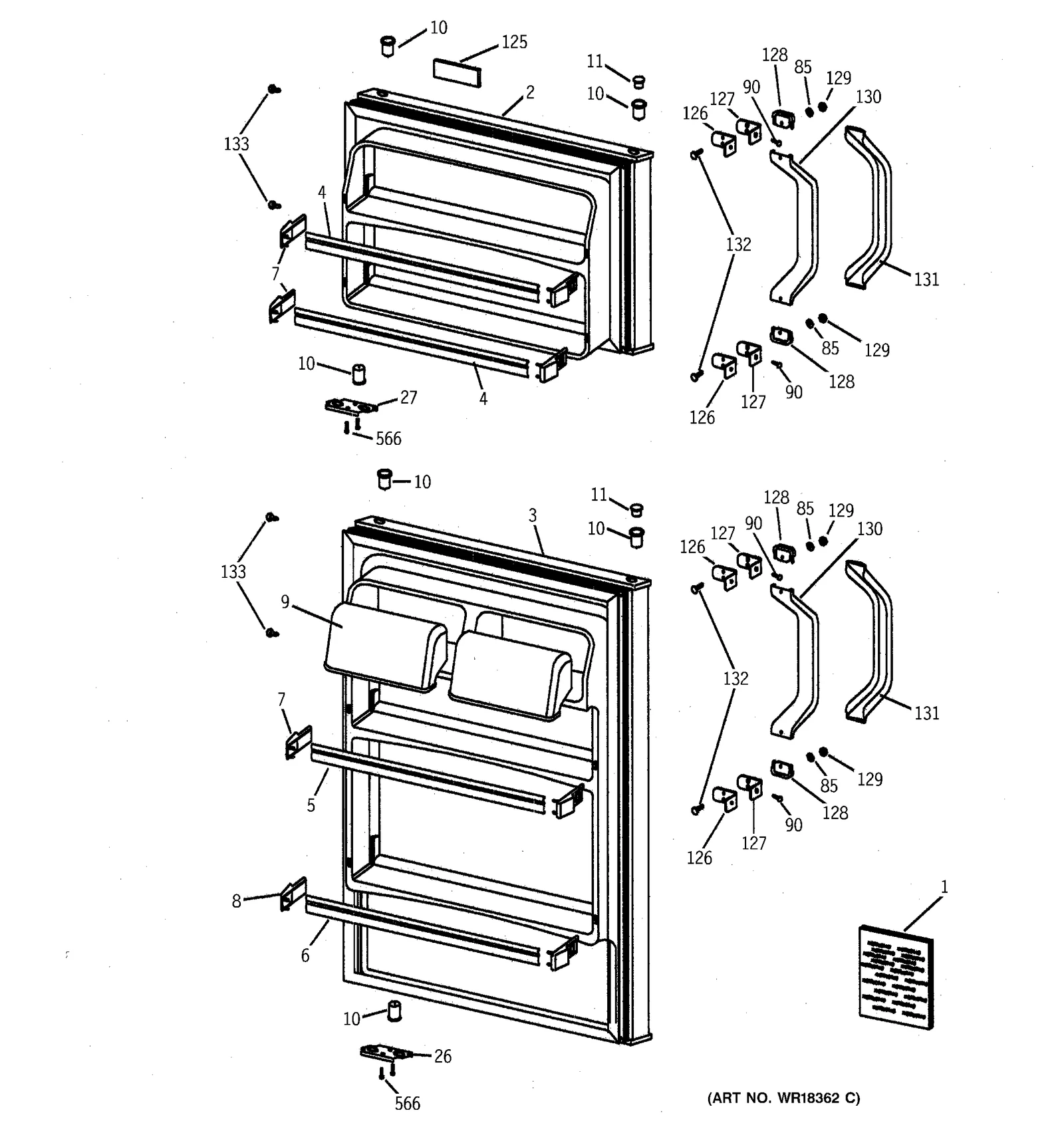

DOORS
Parts in DOORS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51109 PM MINIMANUAL WIRING | - |
| 1 | – | 39-6410 GUIDE OWNER | - |
| 2 | – | WR78K0020 DOOR FOAM ASM FZ | - |
| 3 | – | WR78K0019 DOOR FOAM ASM FF | - |
| 7 | – | WR02X9185 CAP SHELF FRT | - |
| 8 | – | WR02X9186 CAP SHELF FRT | - |
| 9 | – | WR22X0496 DOOR DAIRY | - |
| 10 | – | WR02X9203 BUSHING | - |
| 11 | – | WR02X9198 PLUG BUTTON THIMBLE (WH) | - |
| 13 | – | WR02X8080 COMPRESSOR BUSHING | - |
| 26 | – | WR02K0060 STOP DOOR | - |
| 27 | – | WR02K0061 STOP DOOR FZ | - |
| 52 | – | WR02X9191 DUCT FOAM ASM | - |
| 66 | – | WR02K0058 SOCKET TERMINAL ASM | - |
| 85 | – | WR01K0007 STRIATE WASHER | - |
| 86 | – | WR02K0069 TUBE DRAIN CON. | - |
| 90 | – | WR01K0019 SCREW | - |
| 125 |  | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 127 | – | WR02K0048 HANDLE SUPPORT | - |
| 128 | – | WR12K0004 END CAP DOOR HANDLE | - |
| 129 | – | WR01K0008 HEXAGONAL NUT | - |
| 130 | | WR12K0002NLA BASE HANDLE | Discontinued |
| 131 | – | WR12K0006 INSERT HANDLE | - |
| 132 | | WR1K10replaces WR01K0010 SCR | - |
| 133 | – | WR01K0020 SCREW | - |
| 134 | – | WR82K0006 COVER ACCESS ASM RECIP | - |
| 201 | | WR14X0379NLA FOAM STRIP SE ADH | Discontinued |
| 211 |  | WR2X8429replaces WR02X8429 SUPPORT SHLF | $6.88 Parts Dr |
| 355 | – | WR01X5744 ANCHOR SCREW HANDLE | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 613 | – | WR02K0059 RING COMPRESSION | - |
| 626 | – | WR23K0008 HARNESS MACH MSC | - |
