Model
Hotpoint CTX14WAYBWH
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX14WAYBWHRefrigerator
3 diagrams127 parts
Parts Sections (3)
Diagram

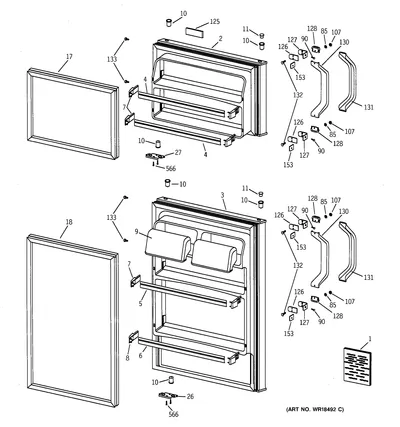

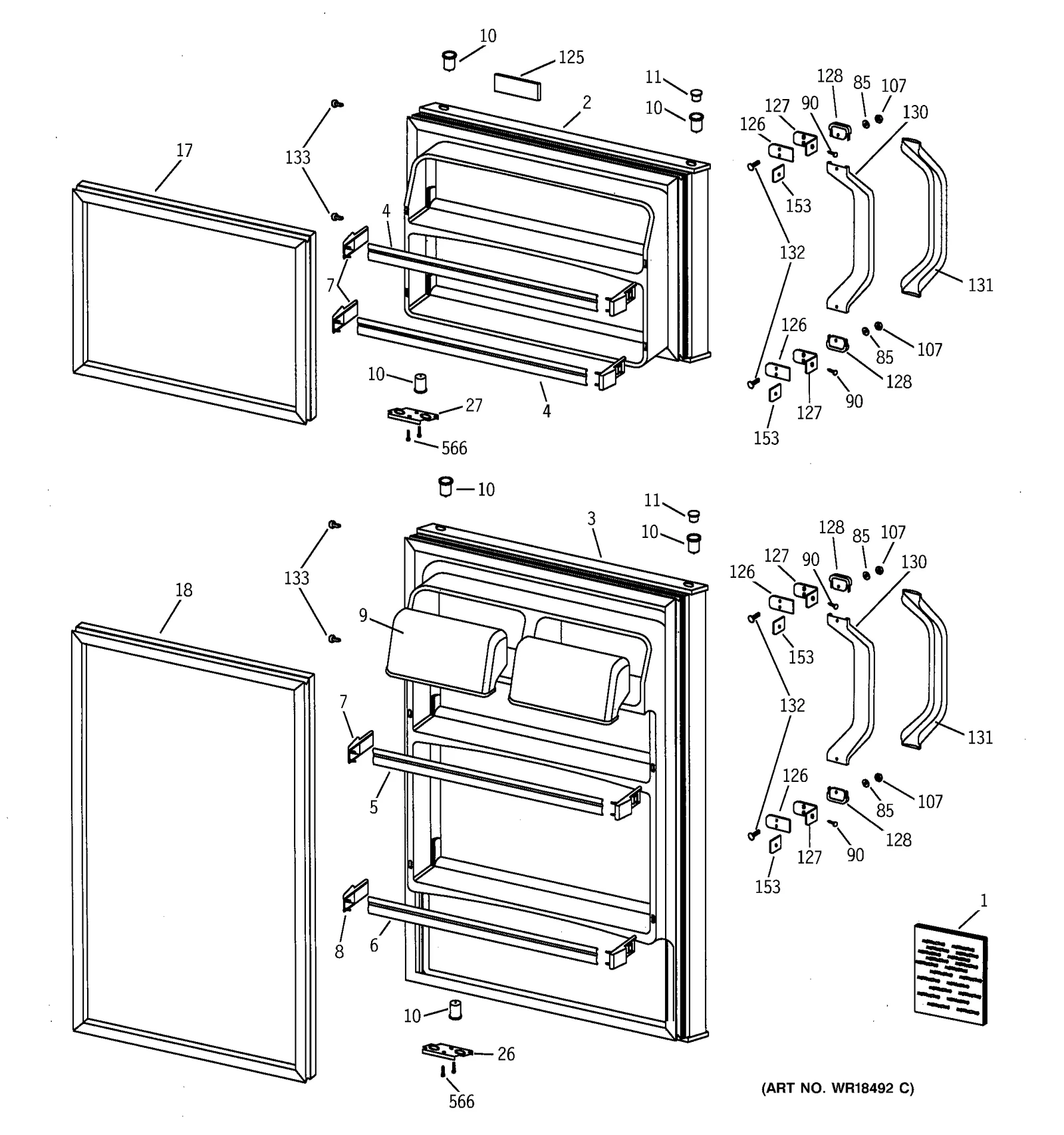

DOORS
Parts in DOORS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51109 PM MINIMANUAL WIRING | - |
| 1 | – | 39-6410 GUIDE OWNER | - |
| 2 | – | WR78K0020 DOOR FOAM ASM FZ | - |
| 3 | – | WR78K0019 DOOR FOAM ASM FF | - |
| 4 |  | FRONT DOOR SHELF SM | - |
| 5 | | FRONT DOOR SHELF GESM | - |
| 6 | | WR17K10004NLA FRONT DOOR SHELF LG | Discontinued |
| 7 | – | WR02X9185 CAP SHELF FRT | - |
| 8 | – | WR02X9186 CAP SHELF FRT | - |
| 9 | – | WR22X0496 DOOR DAIRY | - |
| 10 | – | WR02X9203 BUSHING | - |
| 11 | – | WR02X9198 PLUG BUTTON THIMBLE (WH) | - |
| 17 | – | WR49K0006 KIT REPLACEMENT GASKETFZ | - |
| 18 | – | WR49K0004 KIT REPLACEMENT GASKETFF | - |
| 26 | – | WR02K0060 STOP DOOR | - |
| 27 | – | WR02K0061 STOP DOOR FZ | - |
| 85 | – | WR01K0007 STRIATE WASHER | - |
| 90 | – | WR01K0011 SCREW | - |
| 107 | – | WR01K0009 NUT | - |
| 125 | | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 126 | – | WR02K10018 HANDLE SPACER | - |
| 127 | – | WR02K0048 HANDLE SUPPORT | - |
| 128 | – | WR12K0004 END CAP DOOR HANDLE | - |
| 130 | | WR12K0002NLA BASE HANDLE | Discontinued |
| 131 | – | WR12K0006 INSERT HANDLE | - |
| 132 | | WR1K10replaces WR01K0010 SCR | - |
| 133 | | SCREW "AB" | - |
| 153 | – | WR02K10019 HANDLE SPACER | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
