Model
Hotpoint CTX16AMDRAD
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX16AMDRADRefrigerator
3 diagrams162 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
70 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

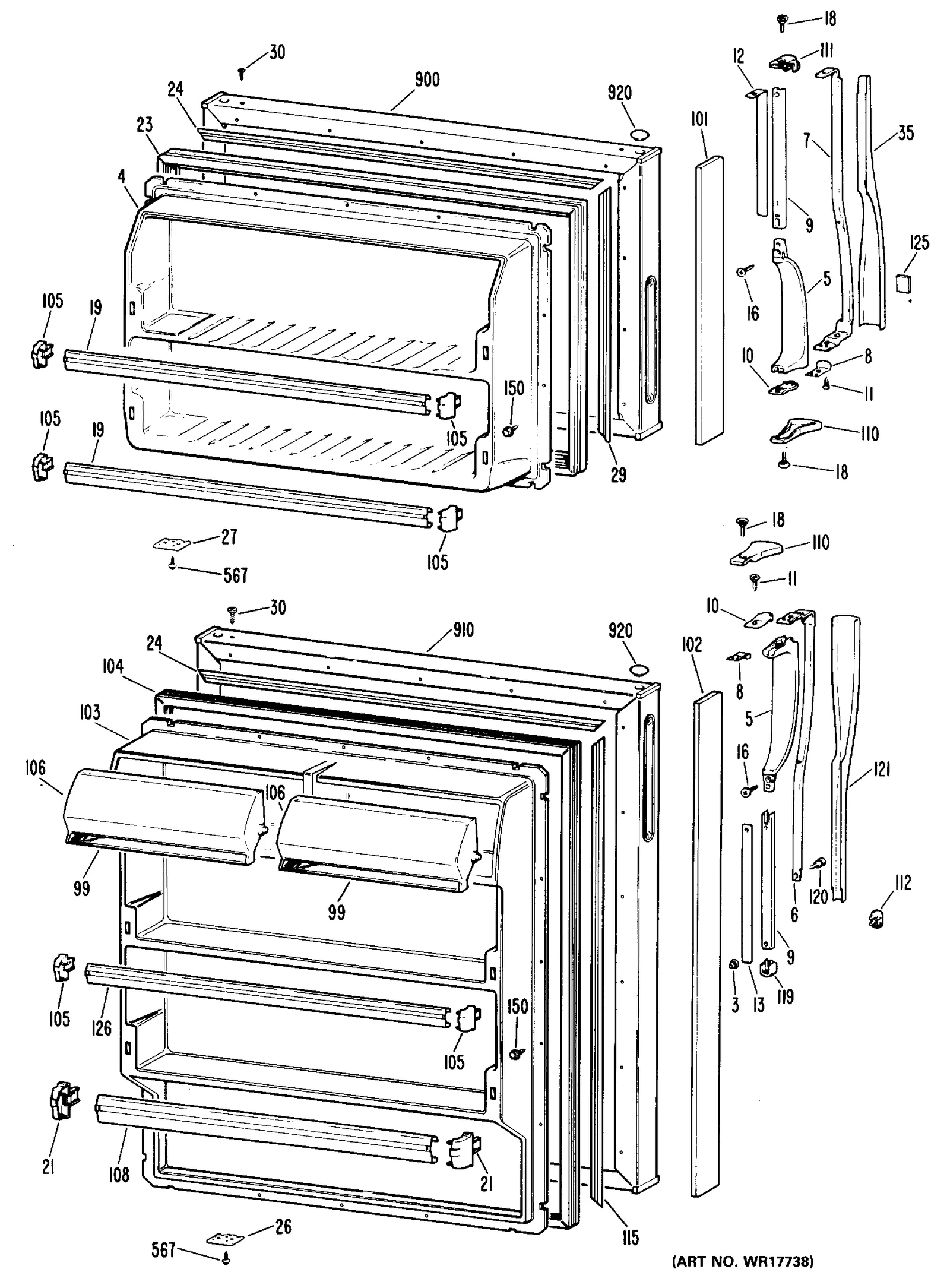

| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 39-6267 GUIDE OWNERS | - |
| 1 | – | SR2601 MINI MANUAL | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 5 | | WR12X0463NLA HANDLE DOOR | Discontinued |
| 6 | – | WR12X0794 STIFFENER HANDLE | - |
| 7 | – | WR12X0793 STIFFENER HANDLE | - |
| 8 | | WR02X7793NLA SHIM HANDLE ASM | Discontinued |
| 9 | | WR12X790replaces WR12X0790 CHANNEL HANDLE | - |
| 10 | | WR02X7140NLA CLIP HANDLE | Discontinued |
| 11 | – | WZ04X0352 SCREW 8-18 B 7/16 | - |
| 12 | – | WR02X8351 SHIM HANDLE DOOR | - |
| 13 | | WR2X8352replaces WR02X8352 SHIM HANDLE DOOR | - |
| 16 | | WR1X1565Dreplaces WR01X1565 SCR 8-32 MA FL 21/32 S | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 19 | – | WR71X2018 FRONT DOOR SHELF | - |
| 21 |  | WR2X7674replaces WR02X7674 CAP SHELF FRT | - |
| 23 |  | WR24X10228replaces WR24X0484 FRZ DOOR GASKET | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 | | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 35 | | WR12X792replaces WR12X0792 INSERT DOOR HANDLE | - |
| 99 | | TRIM BRIGHT | - |
| 101 | – | WR38X1386 DOOR TRIM FR ALMOND | - |
| 102 | – | WR38X1470 DR TRIM FF ALMOND | - |
| 103 | – | WR77X0551 DOOR INNER FF | - |
| 104 |  | WR24X10229replaces WR24X0486 GASKET DOOR FF | $53.37 Part Advantage |
| 105 | | CAP SHELF FRT | Discontinued |
| 106 | | WR22X489replaces WR22X0420 DAIRY DOOR | - |
| 108 | – | WR71X2017 FRONT DOOR SHELF | - |
| 110 |  | CAP TRIM HANDLE | Discontinued |
| 111 | | WR02X7792NLA CAP TRIM HANDLE | Discontinued |
| 112 | | WR4X181replaces WR04X0181 NAMEPLATE DR RSV(AD) | - |
| 115 | | WR2X8250replaces WR02X8250 RETAINER STRIP VERT | - |
| 119 | – | WR02X4928 CAP HANDLE | - |
| 120 | | WR01X1755NLA SCR 8-18 AB SPECIAL PA S | Discontinued |
| 121 | – | WR12X0791 INSERT DOOR HANDLE | - |
| 125 | – | WR04X0199 LENS NAMEPLATE | - |
| 126 | – | WR71X2019 FRONT DOOR SHELF | - |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |

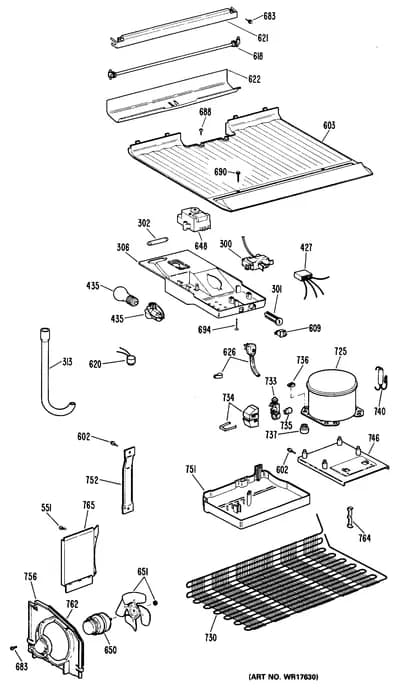

| 313 | | WR17X2647NLA DRAIN TUBE | Discontinued |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 620 | | WR50X0112NLA THERMOSTAT DEF | Discontinued |
| 650 |  | WR60X187replaces WR60X0179 MOTOR COND FAN | $180.99 Part Advantage |
| 651 | | WR1X1714replaces WR01X1714 WASHER,CUSION | - |
| 651 | | WR1X1715replaces WR01X1715 NUT | - |
| 651 | – | WR60X0167 BLADE COND FAN | - |
| 726 | – | WR97X0177 REFRIGERANT | - |
| 730 | – | WR84X0146 CONDENSER ASM. | - |
| 735 | – | WR02X7916 CLIP GUARDETTE | - |
| 735 | | WR8X105replaces WR08X0105 GUARDETTE | - |
| 737 |  | WR2X7238replaces WR02X7238 GROMMET COMP MTG | - |
| 739 | – | WR01X1746 SCREW | - |
| 740 |  | WR86X25269replaces WR86X0086 MONGRAM SERIES P/S | $45.90 Part Advantage |
| 746 | – | WR17X2648 PLATE COMP MTG ASM | - |
| 751 | | PAN WATER DISPOSAL | Discontinued |
| 752 | – | WR17X2627 BRACE COMP RECIP | - |
| 756 | | WR17X2632NLA HOUSING COND FAN | Discontinued |
| 762 | | WR14X313replaces WR14X0313 COND TOP BAFFLE FOAM | $8.98 RepairClinic |
| 764 | – | WR02X8222 CLIP COND RECIP | - |
| 765 | – | WR17X2626 BAFFLE FAN ASM | - |
| 800 |  | WR57X10033replaces WR57X0095 WATER VALVE ASM | $28.64 Part Advantage |
| 802 | | WR1X1360replaces WR01X1360 CLIP U | - |
| 804 |  | WR57X57replaces WR57X0057 NUT SLEEVE 1/4 | - |
| 900 | – | WR78X8213 FRZ O.DOOR (AD) W/TRIM | - |
| 910 | – | WR78X8215 FF O.DOOR (AD) W/TRIM | - |
| 920 | | WR2X8234replaces WR02X8234 PLUG BUTTON (AD) | - |
