Model
Hotpoint CTX16CISFRWH
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX16CISFRWHRefrigerator
3 diagrams170 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
125 parts

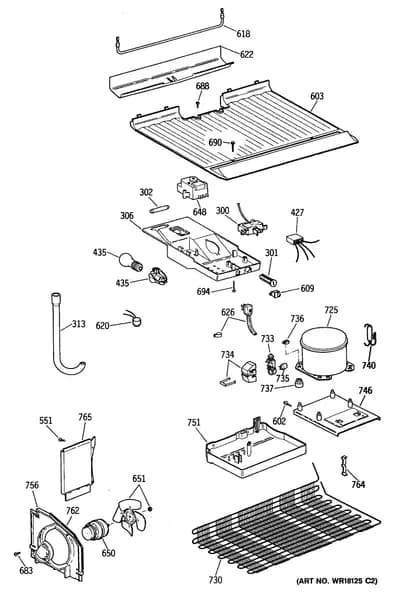

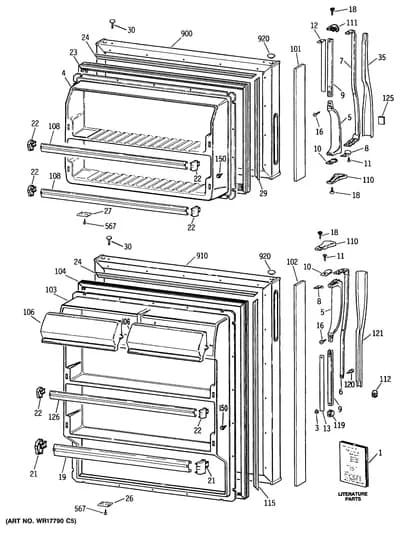

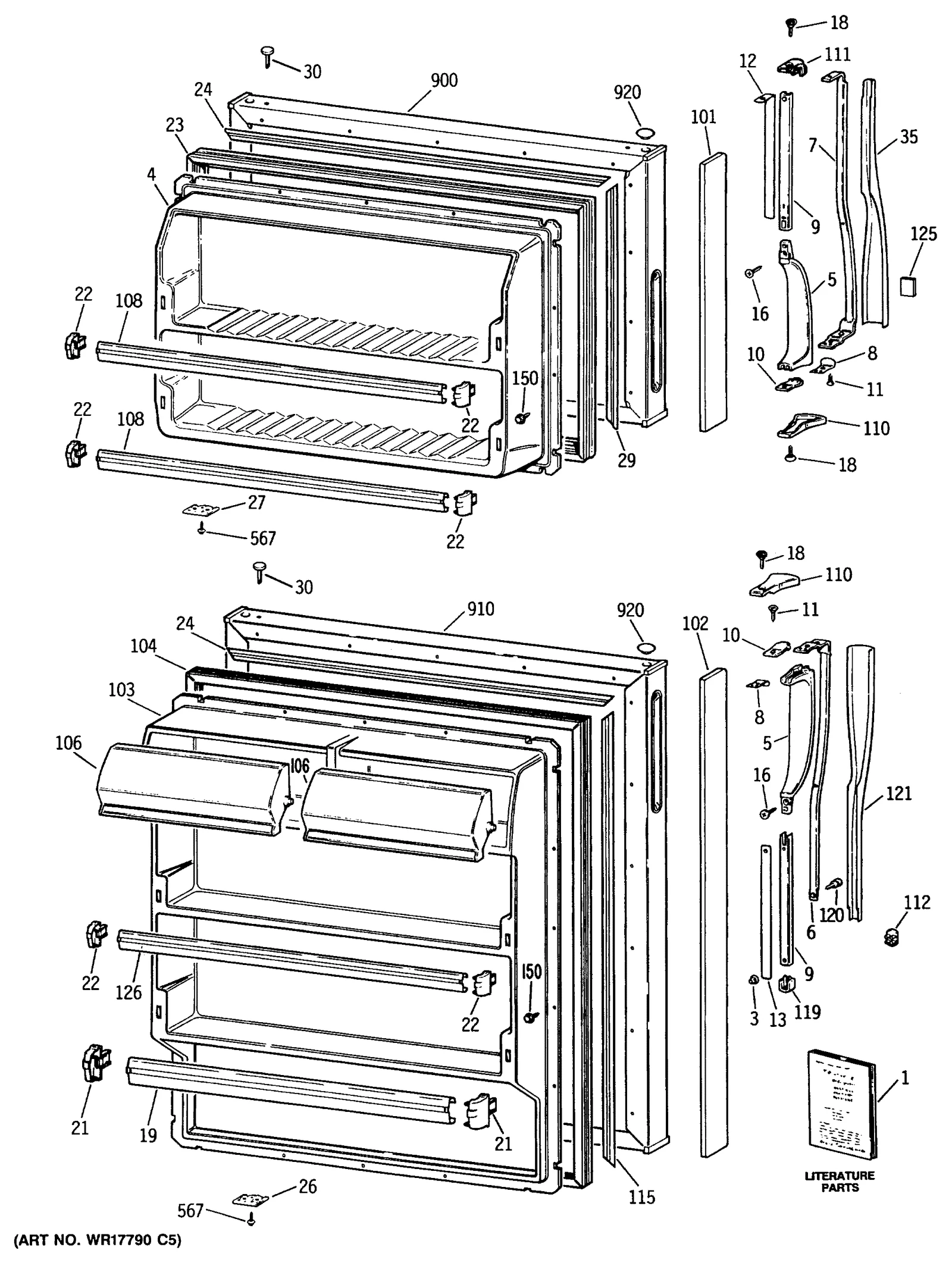

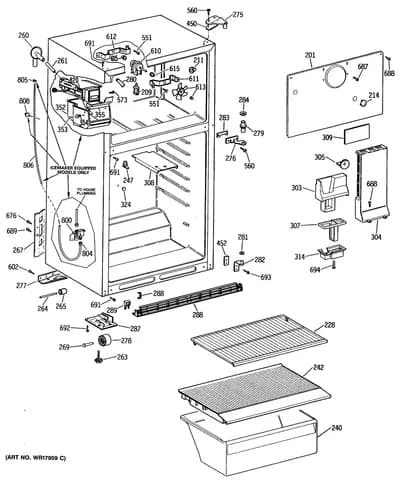

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 39-6267 GUIDE OWNERS | - |
| 1 | – | SR2867 MINI MANUAL WIRING | - |
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 5 | | WR12X0463NLA HANDLE DOOR | Discontinued |
| 6 | – | WR12X0794 STIFFENER HANDLE | - |
| 7 | – | WR12X0793 STIFFENER HANDLE | - |
| 8 | | WR02X7793NLA SHIM HANDLE ASM | Discontinued |
| 9 | | WR12X790replaces WR12X0790 CHANNEL HANDLE | - |
| 10 | | WR02X7140NLA CLIP HANDLE | Discontinued |
| 11 | – | WZ04X0352 SCREW 8-18 B 7/16 | - |
| 12 | – | WR02X8351 SHIM HANDLE DOOR | - |
| 13 | | WR2X8352replaces WR02X8352 SHIM HANDLE DOOR | - |
| 14 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 16 | | WR1X1565Dreplaces WR01X1565 SCR 8-32 MA FL 21/32 S | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 19 | – | WR71X2079 FRONT DOOR SHELF | - |
| 21 |  | WR2X7975replaces WR02X7975 CAP SHELF FRT | $21.63 Part Advantage |
| 22 | | WR02X8221NLA CAP SHELF FRT | Discontinued |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 | | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 30 | – | WR02X8869 PLUG BUTTON WH | - |
| 35 | | WR12X792replaces WR12X0792 INSERT DOOR HANDLE | - |
| 101 | | DR TRIM FRZ WHITE | - |
| 102 | – | WR38X1469 DR TRIM FF WHITE | - |
| 103 | – | WR77X0551 DOOR INNER FF | - |
| 104 |  | WR24X10229replaces WR24X0486 GASKET DOOR FF | $53.37 Part Advantage |
| 106 | | WR22X0487NLA DOOR DAIRY | Discontinued |
| 108 | | FRONT DOOR SHELF | - |
| 110 |  | CAP TRIM HANDLE | Discontinued |
| 111 | | WR02X7792NLA CAP TRIM HANDLE | Discontinued |
| 112 | | WR04X0180NLA NAMEPLATE DR RSV(WH) | Discontinued |
| 115 | | WR2X8250replaces WR02X8250 RETAINER STRIP VERT | - |
| 119 | – | WR02X4928 CAP HANDLE | - |
| 120 | | WR01X1755NLA SCR 8-18 AB SPECIAL PA S | Discontinued |
| 121 | – | WR12X0791 INSERT DOOR HANDLE | - |
| 125 | – | WR04X0199 LENS NAMEPLATE | - |
| 126 | | WR71X2166replaces WR71X2081 FRONT DOOR SHELF | $21.79 Parts Dr |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 201 | | WR14X0379NLA FOAM STRIP SE ADH | Discontinued |
| 201 | | COVER EVAP ASM | - |
| 209 | | WR02X7015NLA SUPPORT TWIST FZ SHELF | Discontinued |
| 209 | | WR2X8243replaces WR02X8243 SUPPORT TWIST FZ SHELF | - |
| 211 |  | WR2X8429replaces WR02X8429 SUPPORT SHLF | $6.88 Parts Dr |
| 214 | – | WR01X1332 RIVET-PLASTIC | - |
| 214 |  | WR02X11760replaces WR02X7148 PLUG BUTTON | $5.09 Part Advantage |
| 228 |  | WR71X10378replaces WR71X2089 SHELF ASM STATIONARY | $151.30 Part Advantage |
| 233 | | WR2X7018replaces WR02X7018 SPACER TRACK | - |
| 240 |  | PAN VEG FULL | $110.81 Part Advantage |
| 242 |  | WR32X10398replaces WR32X1094 COVER PAN LOW | $51.49 Part Advantage |
| 247 | | WR02X8242NLA SUPPORT TWIST CONTROL | Discontinued |
| 260 | | WR02X8228NLA GROMMET WATER FILL | Discontinued |
| 261 | – | WR02X7288 EXTENSION IM FILL TUBE | - |
| 263 |  | WR2X7877replaces WR02X7877 GLIDER ADJ | $9.70 RepairClinic |
| 264 | | WR02X8214NLA AXLE WHEEL REAR | Discontinued |
| 265 | | WR2X8245replaces WR02X8245 WHEEL MOBILITY REAR | $32.22 RepairClinic |
| 267 | | COVER ACCESS ASM RECIP. | Discontinued |
| 269 | – | WR02X8213 AXLE WHEEL FRT | - |
| 270 |  | WR2X4754replaces WR01X5223 CLAMP HOSE | $6.95 ApplianceParts Pro |
| 275 | | WR13X598replaces WR13X0598 HINGE TOP & SHIM ASM | - |
| 276 | – | WR13X0597 HINGE CTR & SHIM ASM | - |
| 276 | | WR13X0650NLA HINGE CTR | Discontinued |
| 277 | | RAIL REAR | - |
| 278 | – | WR02X8244 WHEEL, FRONT | - |
| 279 | | WR02X8232NLA PIN HINGE CTR | Discontinued |
| 280 | – | WR02X8465 CAP CORNER (WH) | - |
| 281 |  | WR1X1797Dreplaces WR01X1797 WASHER HINGE .495ID | - |
| 282 | | WR13X596replaces WR13X0596 HINGE BTM ASM | - |
| 283 | – | WR02X8240 SHIM HINGE CTR | - |
| 284 |  | WR1X1794replaces WR01X1794 SPACER DOOR FZ | $6.91 Parts Dr |
| 287 | | WR2X8708replaces WR02X8708 GUSSET RH | - |
| 287 | | WR2X8709replaces WR02X8709 GUSSET LH | - |
| 288 | | WR02X7646NLA CLIP BASE GRILLE | Discontinued |
| 288 | – | WR74X0197 GRILLE BASE ASM | - |
| 289 | | WR2X8220replaces WR02X8220 CAP GRILLE | - |
| 303 |  | WR2X8462replaces WR02X8462 DUCT FOAM | $26.17 Parts Dr |
| 304 | | WR17X2629NLA DUCT AIR FZ | Discontinued |
| 305 | – | WR02X8431 ACTUATOR AIR | - |
| 307 | | DIFFUSER AIR FF | Discontinued |
| 308 | | WR2X8248replaces WR02X8248 INSUL ELECT | - |
| 309 | – | WR02X8246 GASKET AIR DUCT | - |
| 314 | | WR2X8464replaces WR02X8464 DIFFUSER ORIFICE | - |
| 324 |  | WR2X7051replaces WR02X7051 PLUG BUTTON | - |
| 324 | | WR02X7069NLA PLUG BUTTON | Discontinued |
| 352 |  | WR30X10154replaces WR30X0281 BUCKET ASM ICE | $16.41 Part Advantage |
| 353 | | WR2X7289replaces WR02X7289 RETAINER-BAFFLE | - |
| 354 | | WR2X7289replaces WR02X7290 RETAINER-FASTENER | - |
| 355 | – | WR01X5744 ANCHOR SCREW HANDLE | - |
| 355 | | WR30X10154replaces WR17X2043 BAFFLE ICE BUCKET | $16.41 Part Advantage |
| 450 | | WR2X8871replaces WR02X8871 SHIM HINGE TOP | - |
| 452 | | WR02X8870NLA SHIM HINGE BTM | Discontinued |
| 560 | | WR01X1249NLA SCREW | Discontinued |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 573 | – | WZ04X0254 SCREW | - |
| 610 | | MOTOR EVAP FAN | Discontinued |
| 611 | | WR02X8216NLA BRACKET EVAP FAN FRT | Discontinued |
| 612 | | WR02X8217NLA BRACKET EVAP FAN REAR | Discontinued |
| 613 |  | WR60X114replaces WR02X3198 COMP. RING, EVAP. FAN | $14.23 Part Advantage |
| 613 | | WR60X114replaces WR60X0114 FAN BLADE EVAP MOTOR | $14.23 Part Advantage |
| 615 | | GROMMET EVAP FAN | Discontinued |
| 676 |  | WD2X5166replaces WZ04X0263 SCR 10-16 AB HXW 1/2 | $9.92 Parts Dr |
| 687 | – | WZ05X0194 SCREW | - |
| 689 | | WZ5X246replaces WZ05X0246 SCR 8-32 SPEC DRILL PT | $12.79 ApplianceParts Pro |
| 691 | | WR01X1644NLA SCR 10-32 GX HXW 1/2 S | Discontinued |
| 692 |  | WZ4X416replaces WZ04X0416 SCR 8-18 AB HXW 3/4 | $14.95 ApplianceParts Pro |
| 693 |  | WR1X1754Dreplaces WR01X1754 SCREW 12-24 | - |
| 750 |  | WR1X1786replaces WR01X1786 SCR 10-32 TR 1/2 | $7.37 ApplianceParts Pro |
| 760 | – | WR01X1717 SCR | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 800 |  | WR57X10033replaces WR57X0095 WATER VALVE ASM | $28.64 Part Advantage |
| 802 | | WR1X1360replaces WR01X1360 CLIP U | - |
| 804 |  | WR57X57replaces WR57X0057 NUT SLEEVE 1/4 | - |
| 805 |  | WR1X5278replaces WR02X3736 STR RELIEF | $8.59 Parts Dr |
| 806 |  | WR17X1948replaces WR17X1059 WATER LINE | $9.14 Part Advantage |
| 808 |  | WR2X4039replaces WR02X4039 ADHESIVE CLIP | $15.95 ApplianceParts Pro |
| 820 |  | WR30X10093replaces WR30X0283 ICEMAKER CRESCENT | $168.04 Parts Dr |
| 820 | | WR30X10093replaces WR30X0289 IM CRESCENT | $168.04 Parts Dr |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
| 900 | – | WR78X8212 FRZ O.DOOR (WH) W/TRIM | - |
| 910 | – | WR78X8214 FF O.DOOR (WH) W/TRIM | - |
| 920 |  | WR2X8233replaces WR02X8233 PLUG BUTTON THIMBLE WH | $14.95 ApplianceParts Pro |
