Model
Hotpoint CTX16CYBNRAA
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX16CYBNRAARefrigerator
3 diagrams126 parts
Parts Sections (3)
Diagram

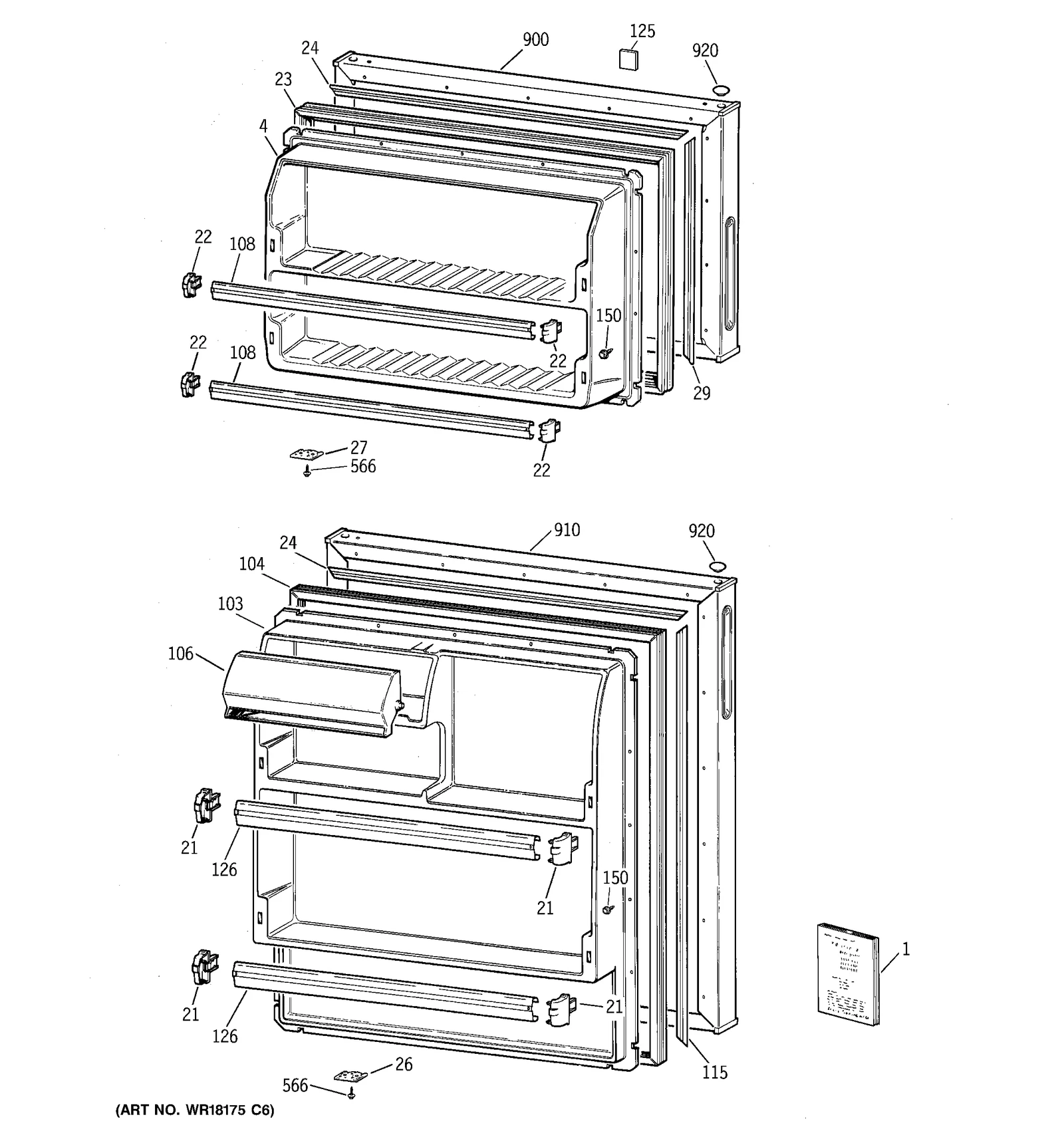

DOORS
Parts in DOORS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 31-51262 PM MINI MANUAL WIRING | - |
| 1 | – | 39-6424 GUIDE OWNERS | - |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 21 |  | WR2X9144replaces WR02X9144 CAP SHLF FRT | $22.42 Part Advantage |
| 22 |  | WR2X9162replaces WR02X9162 CAP SHLF FRNT NARROW | $12.36 Part Advantage |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 |  | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 103 | – | WR77X0652 DOOR INNER FF | - |
| 104 |  | WR24X10236replaces WR24X0558 GASKET DOOR FF | $62.69 Part Advantage |
| 106 | | WR22X0487NLA DOOR DAIRY | Discontinued |
| 108 |  | FRONT DOOR SHELF FZ | $20.61 Part Advantage |
| 115 | | WR2X9221replaces WR02X9221 RETAINER STRIP V | - |
| 125 | | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 126 |  | FRONT DOOR SHELF FF | $20.39 Part Advantage |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 231 | | WR2X7018replaces WR02X7018 SPACER TRACK | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
| 900 | | FRZ 0. DOOR (AD) W/TRIM | - |
| 910 | | FF O DOOR AD | - |
| 920 | | WR2X8234replaces WR02X8234 PLUG BUTTON (AD) | - |
