ModelHotpoint
CTX16CYSFLADRefrigerator
3 diagrams137 parts
Parts Sections (3)

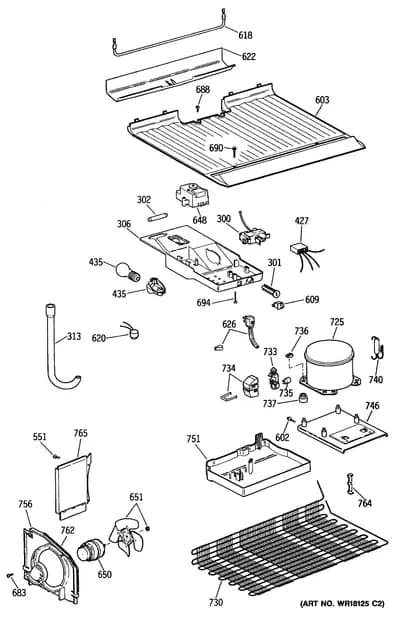

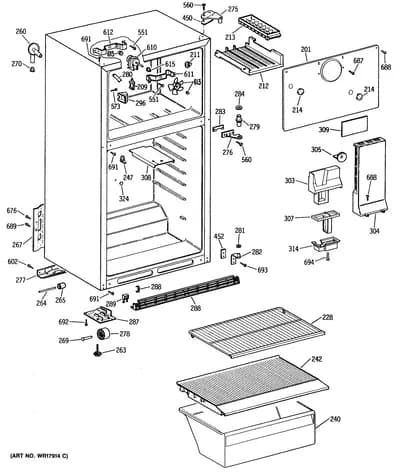

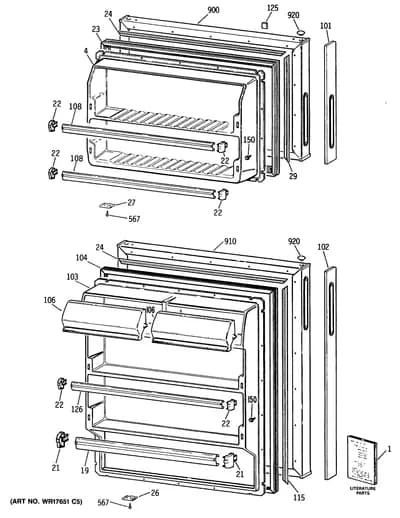

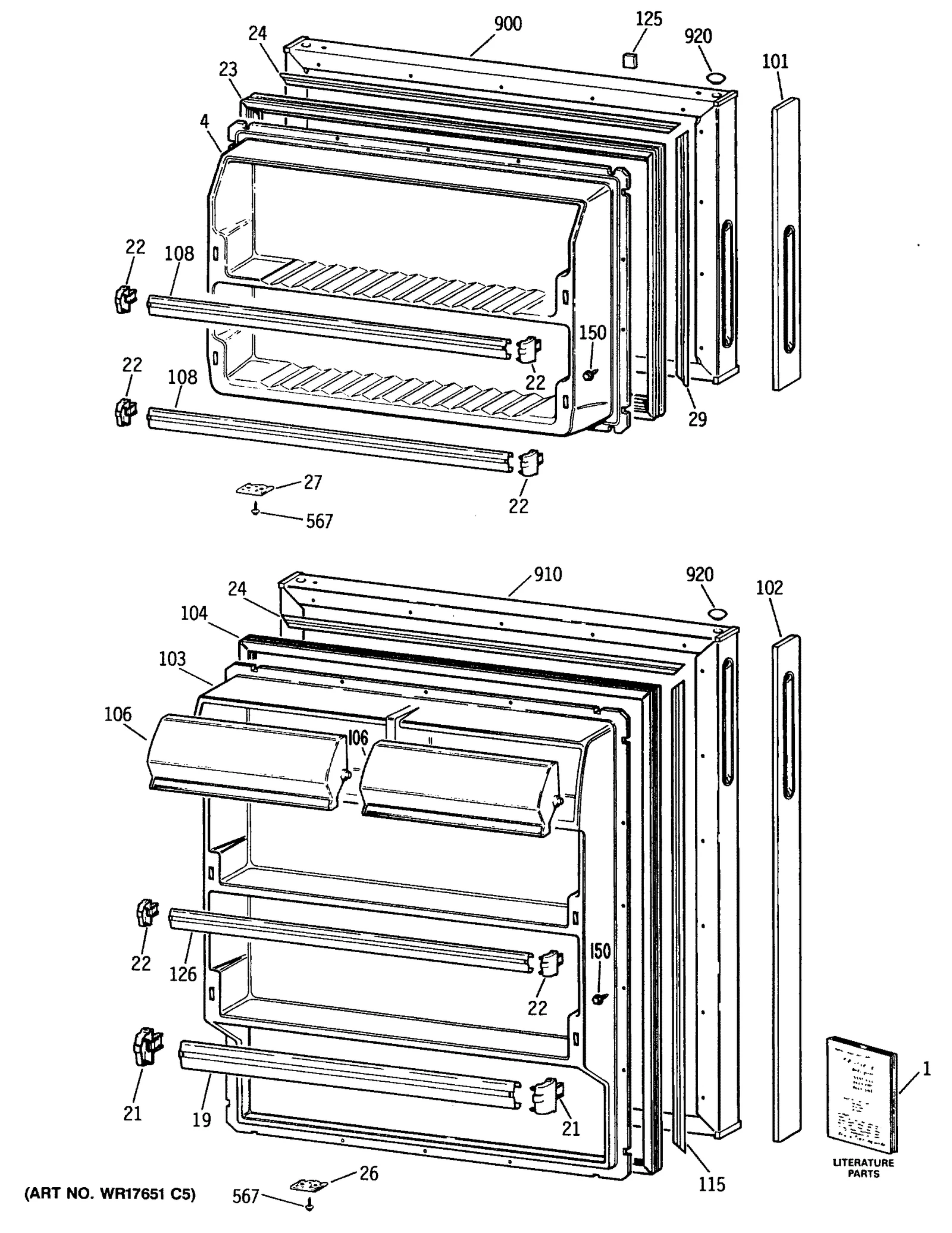

Diagram
Parts List
Parts in Parts List
53 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 39-6267 GUIDE OWNERS | - |
| 1 | – | SR2867 MINI MANUAL WIRING | - |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 14 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 19 | – | WR71X2079 FRONT DOOR SHELF | - |
| 21 |  | WR2X7975replaces WR02X7975 CAP SHELF FRT | $21.63 Part Advantage |
| 22 |  | WR02X8221NLA CAP SHELF FRT | Discontinued |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 | | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 101 | – | WR38X1534 HANDLE POCKET DOOR FZ AD | - |
| 102 | – | WR38X1536 HANDLE POCKET DOOR FF AD | - |
| 103 | – | WR77X0551 DOOR INNER FF | - |
| 104 |  | WR24X10229replaces WR24X0486 GASKET DOOR FF | $53.37 Part Advantage |
| 106 | | WR22X0487NLA DOOR DAIRY | Discontinued |
| 108 | | FRONT DOOR SHELF | - |
| 115 | | WR2X8250replaces WR02X8250 RETAINER STRIP VERT | - |
| 125 | | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 126 | | WR71X2166replaces WR71X2081 FRONT DOOR SHELF | $21.79 Parts Dr |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 201 | | COVER EVAP ASM | - |
| 214 | – | WR01X1332 RIVET-PLASTIC | - |
| 233 | | WR2X7018replaces WR02X7018 SPACER TRACK | - |
| 240 |  | PAN VEG FULL | $110.81 Part Advantage |
| 242 |  | WR32X10398replaces WR32X1094 COVER PAN LOW | $51.49 Part Advantage |
| 277 | | RAIL REAR | - |
| 282 | | WR13X596replaces WR13X0596 HINGE BTM ASM | - |
| 288 | – | WR74X0197 GRILLE BASE ASM | - |
| 427 | | WR23X0358NLA HARNESS CONT MODULE | Discontinued |
| 560 | | WR01X1249NLA SCREW | Discontinued |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 602 |  | WR1X1591replaces WR01X1591 SCR 1/4-14 X 3/4 | - |
| 603 | | WR17X2630NLA FLOOR FZ | Discontinued |
| 609 |  | WR23X37285replaces WR23X0193 SWITCH LIGHT WH | $18.33 Part Advantage |
| 613 |  | WR60X114replaces WR60X0114 FAN BLADE EVAP MOTOR | $14.23 Part Advantage |
| 620 |  | WR50X124replaces WR50X0124 THERMOSTAT DEF | $40.60 Part Advantage |
| 626 |  | WR23X10300replaces WR23X0108 POWER CORD | - |
| 650 |  | WR60X187replaces WR60X0187 MOTOR COND FAN | $180.99 Part Advantage |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 690 | | WR1X1790replaces WR01X1790 SCR 8-18 AB TPR 1 1/8 S | - |
| 691 | | WR01X1644NLA SCR 10-32 GX HXW 1/2 S | Discontinued |
| 730 | – | WR84X0146 CONDENSER ASM. | - |
| 733 | | WR07X0195NLA RELAY | Discontinued |
| 750 |  | WR1X1786replaces WR01X1786 SCR 10-32 TR 1/2 | $7.37 ApplianceParts Pro |
| 760 | – | WR01X1717 SCR | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
| 900 | – | WR78X8245 FZ O.DOOR AD W/O TRIM | - |
| 910 | – | WR78X8241 FF O.DOOR AD W/O TRIM | - |
| 920 | | WR2X8234replaces WR02X8234 PLUG BUTTON (AD) | - |
