Model
Hotpoint CTX16EYTGRAD
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX16EYTGRADRefrigerator
3 diagrams142 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
33 parts

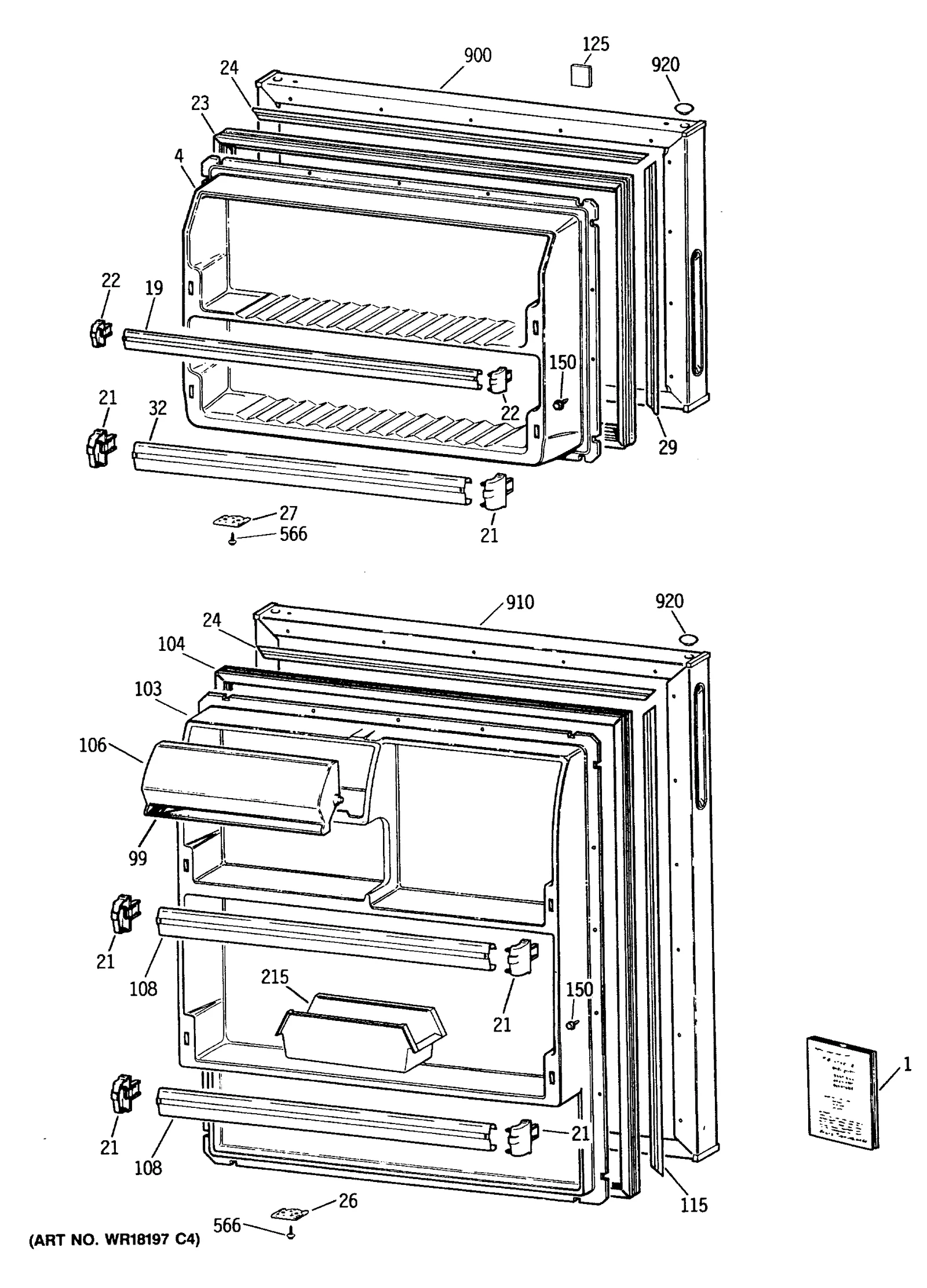

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 31-5974 TECHNICAL DATA SHEET | - |
| 1 | – | 39-6298 PM GUIDE OWNERS | - |
| 4 | – | WR77X0550 DOOR INNER FZ | - |
| 14 | – | WZ05X0164 SCREW FAN MTR/BRKT | - |
| 19 | – | WR17X3751 FRONT DOOR SHELF GESM | - |
| 21 |  | WR2X8345replaces WR02X8345 CAP SHLF FRT | $21.18 Part Advantage |
| 22 |  | WR2X9162replaces WR02X9162 CAP SHLF FRNT NARROW | $12.36 Part Advantage |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 |  | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 32 | – | WR17X3750 FRONT DOOR SHELF GELG | - |
| 85 | – | WR01X2008 CLAMP WIRE | - |
| 96 | – | WR01X2009 SCREW ASM | - |
| 99 | – | WR38X2014 TRIM DAIRY DOOR | - |
| 103 | – | WR77X0644 DOOR INNER FF | - |
| 104 |  | WR24X10229replaces WR24X0486 GASKET DOOR FF | $53.37 Part Advantage |
| 106 | | WR22X489replaces WR22X0489 DOOR DAIRY | - |
| 108 | | WR17X3749NLA FRONT DOOR SHELF GELG | Discontinued |
| 115 | | WR2X8250replaces WR02X8250 RETAINER STRIP VERT | - |
| 125 | | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 215 | | WR32X0897NLA BUCKET UTILITY WH | Discontinued |
| 233 | | WR2X7018replaces WR02X7018 SPACER TRACK | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 738 |  | WR1X1779replaces WR01X1779 STUD MTG COMPR | - |
| 750 |  | WR1X1786replaces WR01X1786 SCR 10-32 TR 1/2 | $7.37 ApplianceParts Pro |
| 760 | – | WR01X1717 SCR | - |
| 900 | | FRZ 0. DOOR (AD) W/TRIM | - |
| 910 | – | WR78X8679 FF O DOOR AD | - |
| 920 | | WR2X8234replaces WR02X8234 PLUG BUTTON (AD) | - |
