Model
Hotpoint CTX16FAYAAD
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX16FAYAADRefrigerator
3 diagrams122 parts
Parts Sections (3)
Diagram

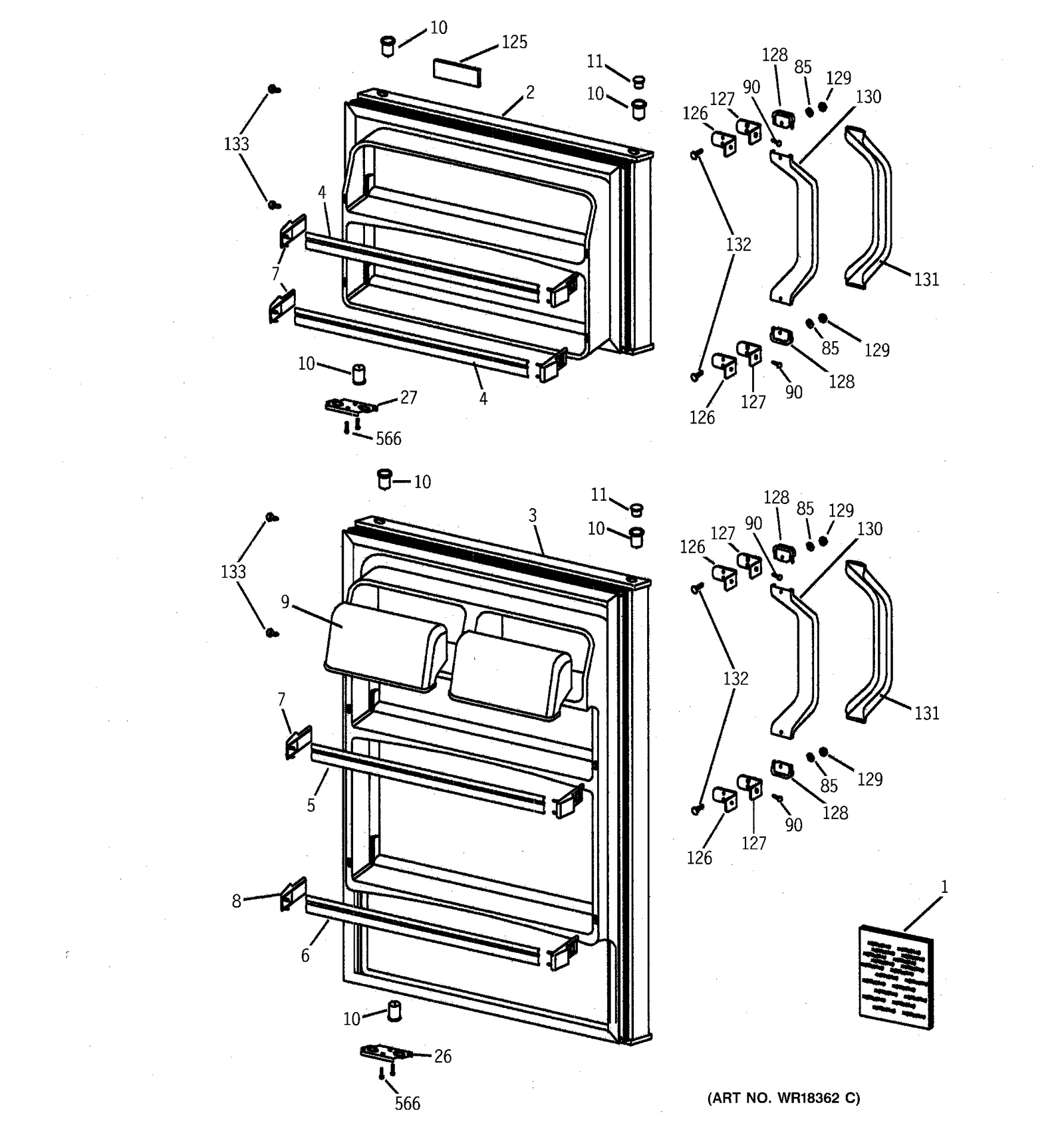

DOORS
Parts in DOORS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 | – | WR78K0018 DOOR FOAM ASM FZ | - |
| 3 | – | WR78K0024 DOOR FOAM ASM FF (AD) | - |
| 4 | – | WR71K0004 FRONT DOOR SHELF GE SM | - |
| 5 | – | WR71K0006 FRONT DOOR SHELF GESM | - |
| 6 | – | WR71K0005 FRONT DOOR SHELF GELG | - |
| 7 | – | WR02X9185 CAP SHELF FRT | - |
| 8 | – | WR02X9186 CAP SHELF FRT | - |
| 9 | – | WR22K0001 DOOR DAIRY | - |
| 10 | – | WR02X9203 BUSHING | - |
| 11 | – | WR02X9204 PLUG BUTTON THIMBLE (AD) | - |
| 26 | – | WR02X8241 STOP DOOR | - |
| 27 |  | WR02X8264NLA STOP DOOR FZ | Discontinued |
| 85 | – | WR01K0007 STRIATE WASHER | - |
| 90 | – | WR01K0019 SCREW | - |
| 125 | | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 126 | – | WR02K0047 HANDLE SPACER | - |
| 127 | – | WR02K0048 HANDLE SUPPORT | - |
| 128 | – | WR12K0004 END CAP DOOR HANDLE | - |
| 129 | – | WR01K0008 HEXAGONAL NUT | - |
| 130 | | WR12K0002NLA BASE HANDLE | Discontinued |
| 131 | – | WR12K0006 INSERT HANDLE | - |
| 132 | | WR1K10replaces WR01K0010 SCR | - |
| 133 | – | WR01K0020 SCREW | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
