Model
Hotpoint CTX16FAZBWH
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX16FAZBWHRefrigerator
3 diagrams134 parts
Parts Sections (3)

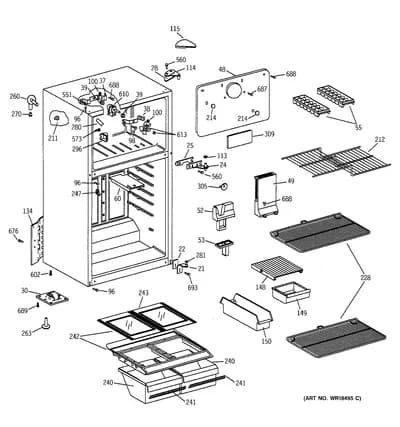

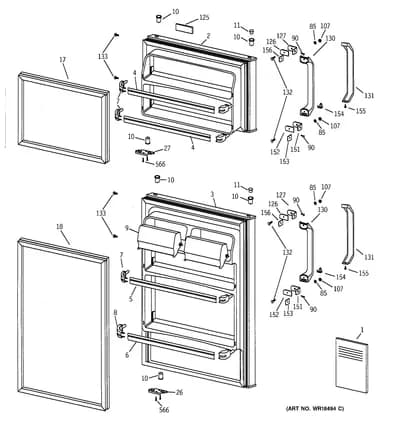

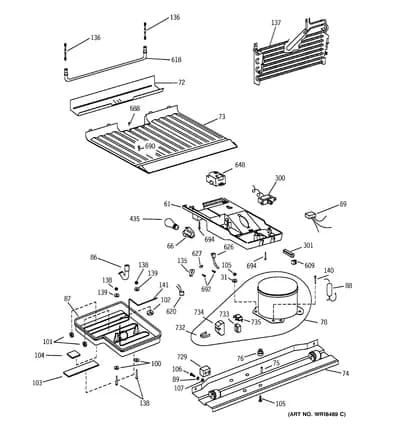

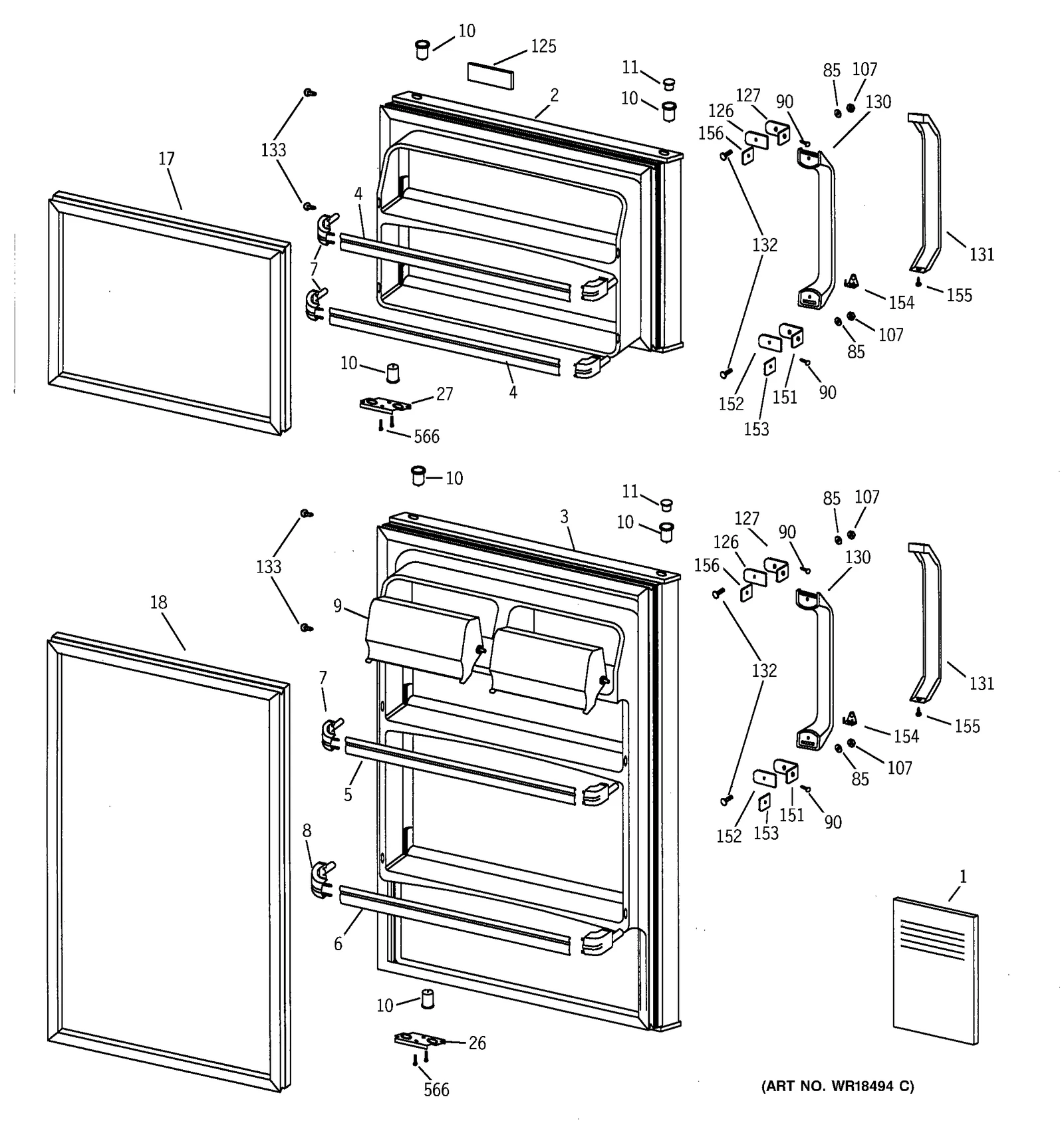

Diagram
DOORS
Parts in DOORS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51109 PM MINIMANUAL WIRING | - |
| 1 | – | 39-6410 GUIDE OWNER | - |
| 2 | – | WR78K0029 DOOR FOAM ASM FZ (WH) | - |
| 3 | – | WR78K0023 DOOR FOAM ASM FF (WH) | - |
| 4 | – | WR17K10010 FRONT DOOR SHELF SM | - |
| 5 | – | WR17K10011 FRONT DOOR SHELF SM | - |
| 6 | – | WR17K10012 FRONT DOOR SHELF LG | - |
| 7 | – | WR02X9185 CAP SHELF FRT | - |
| 8 | – | WR02X9186 CAP SHELF FRT | - |
| 9 | – | WR22K10001 DOOR DAIRY | - |
| 10 | – | WR02X9203 BUSHING | - |
| 11 | – | WR02X9198 PLUG BUTTON THIMBLE (WH) | - |
| 17 | – | WR49K0006 KIT REPLACEMENT GASKETFZ | - |
| 18 | – | WR49K10005 GASKET REPLACEMENT KITFF | - |
| 26 | – | WR02K0060 STOP DOOR | - |
| 27 | – | WR02K0061 STOP DOOR FZ | - |
| 85 | – | WR01K0007 STRIATE WASHER | - |
| 90 | – | WR01K0011 SCREW | - |
| 107 | – | WR01K0009 NUT | - |
| 125 |  | WR4X200replaces WR04X0200 NAMEPLATE DOOR | - |
| 126 | | UPPER HANDLE SPACER | - |
| 127 | | UPPER HANDLE SUPPORT | - |
| 130 | | WR12X627replaces WR12K0008 HANDLE DOOR | - |
| 131 | | INSERT HANDLE | - |
| 132 | – | WR01K0021 SCREW | - |
| 133 | | SCREW "AB" | - |
| 151 | | LOWER HANDLE SUPPORT | - |
| 152 | | LOWER HANDLE SPACER | - |
| 153 | – | WR02K10017 SPACER HANDLE | - |
| 154 | – | WR02X7903 CLIP HANDLE | - |
| 155 | | SCREW AB | - |
| 156 | – | WR02K10016 SPACER HANDLE | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
