Model
Hotpoint CTX18AJB
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX18AJBRefrigerator
3 diagrams218 parts
Parts Sections (3)
Diagram
Parts List
Parts in Parts List
66 parts

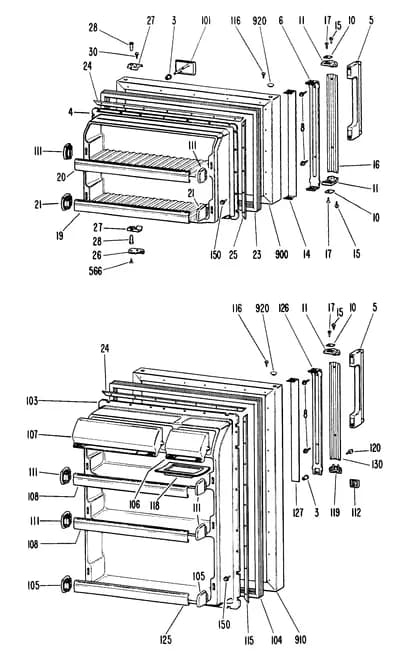

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 3 |  | WR2X4990replaces WR02X3757 FASTENER TUBULAR | $8.95 ApplianceParts Pro |
| 4 | – | WR77X5617 DOOR INNER FZ | - |
| 5 | | WR12X5140NLA HANDLE DOOR ASM | Discontinued |
| 6 | – | WR17X5850 STIFFENER HANDLE | - |
| 8 | – | WR01X1738 SCR 10-36B HXW 5/8 S | - |
| 10 | – | WR02X6289 FILLET PLUG CAP | - |
| 11 | – | WR07X6288 CAP TRIM HANDLE | - |
| 14 | – | WR02X6297 SHIM HANDLE DOOR | - |
| 15 | | WR1X1564Dreplaces WR01X1564 SCR 4/6-20 AB FL 1/2 S | - |
| 16 | – | WR38X5280 TRIM FZ DOOR(BRN) | - |
| 17 | – | WR01X1569 SCR 8/10 16 AB FL 3/4 SS | - |
| 19 | – | WR71X6030 FRONT DOOR SHELF | - |
| 20 | | WR17X11782replaces WR71X1724 FRONT DOOR SHELF | $28.42 PartSelect |
| 21 | – | WR02X6934 CAP SHELF FRT | - |
| 23 | | WR24X0302NLA GASKET O.DOOR FZ (WH) | Discontinued |
| 24 | – | WR17X0857 RETAINER TOP BTM | - |
| 25 | – | WR17X1209 RETAINER SIDES | - |
| 26 | – | WR02X7402 DOOR STOP | - |
| 27 | – | WR02X7281 NUT CHANNEL DOOR | - |
| 28 | | WR02X6278NLA THIMBLE DOOR | Discontinued |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 101 | – | WR04X5064 NAMEPLATE ASM DOOR HPT | - |
| 103 | – | WR77X5618 DOOR INNER FF | - |
| 104 | | WR24X0303NLA GASKET O.DOOR FF (WH) | Discontinued |
| 105 | – | WR02X6932 CAP SHELF FRT | - |
| 106 | – | WR22X0321 DOOR BUTTER | - |
| 107 | – | WR22X0322 DOOR DAIRY | - |
| 108 | | WR17X11782replaces WR71X1725 FRONT DOOR SHELF | $28.42 PartSelect |
| 111 |  | WR2X7283replaces WR02X7283 CAP SHELF FRONT | - |
| 112 | | WR04X0173NLA NAMEPLATE-RSVL DR.(BRN) | Discontinued |
| 115 | – | WR17X1530 RETAINER STRIP | - |
| 116 | | WR1X1570replaces WR01X1570 SCR 4/6-20 AB PA 1/2 SS | - |
| 118 | | WR19X5003NLA DISH BUTTER | Discontinued |
| 119 | – | WR02X6813 CAP HANDLE | - |
| 120 | – | WR01X1593 SCR 8-32 GX RND 9/16 S | - |
| 125 | | FRONT DOOR SHELF | - |
| 126 | – | WR17X6039 STIFFENER HANDLE | - |
| 127 | – | WR02X6295 SHIM HANDLE DOOR | - |
| 130 | | TRIM FF DOOR(BRN) | - |
| 214 |  | WR02X11760replaces WR02X7148 PLUG BUTTON | $5.09 Part Advantage |
| 216 | – | WR01X1332 RIVET-PLASTIC | - |
| 270 |  | WR2X4754replaces WR01X5223 CLAMP HOSE | $6.95 ApplianceParts Pro |
| 287 | – | WR02X7682 PLUG BUTTON (WH) | - |
| 287 | – | WR02X7813 PLUG BUTTON | - |
| 287 | – | WR02X7814 PLUG BUTTON | - |
| 354 | | WR2X7289replaces WR02X7290 RETAINER-FASTENER | - |
| 551 | | WZ04X0244NLA SCREW-FRONT | Discontinued |
| 553 | – | WZ04X0343 SCR 6-20 B TR 1/4 SS | - |
| 557 | – | WR01X1553 SCREW 8-40X1/2 SPEC DRIL | - |
| 566 | | WR01X1487NLA SCREW | Discontinued |
| 687 | – | WZ04X0224 SCR 6-19 HI/LO HXW 1/2 S | - |
| 805 |  | WR1X5278replaces WR02X3736 STR RELIEF | $8.59 Parts Dr |
| 808 |  | WR01X11064replaces WR02X4039 ADHESIVE CLIP | - |
| 900 | – | WR78X7427 FRZ O.DOOR (WH) | - |
| 901 | – | WR78X7428 FRZ O.DOOR RH/LH HA | - |
| 902 | – | WR78X7429 FRZ O.DOOR RH/LH AD | - |
| 910 | – | WR78X7430 FF O.DOOR (WH) | - |
| 911 | – | WR78X7431 FF O.DOOR RH/LH HA | - |
| 912 | – | WR78X7432 FF O.DOOR RH/LH AD | - |
| 920 | | WR2X4930replaces WR02X4930 PLUG BUTTON THIMBLE(WH) | - |
| 921 | – | WR02X4931 PLUG BUTTON THIMBLE(HA) | - |
| 922 | – | WR02X4932 PLUG BUTTON THIMBLE(FA) | - |
| 923 | – | WR02X4933 PLUG BUTTON THIMBLE(CF) | - |
| 924 | – | WR02X4934 PLUG BUTTON THIMBLE(AD) | - |
| 9999 | – | 31-5011 PM ATTENTION INSTALLER | - |
| 9999 | – | 39-6240 PM GUIDE OWNERS | - |
