Model
Hotpoint CTX18BACHRAA
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX18BACHRAARefrigerator
3 diagrams138 parts
Parts Sections (3)
Diagram

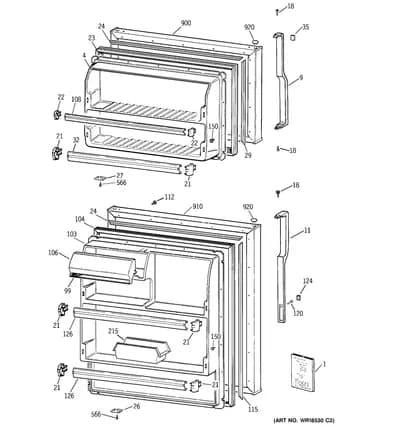

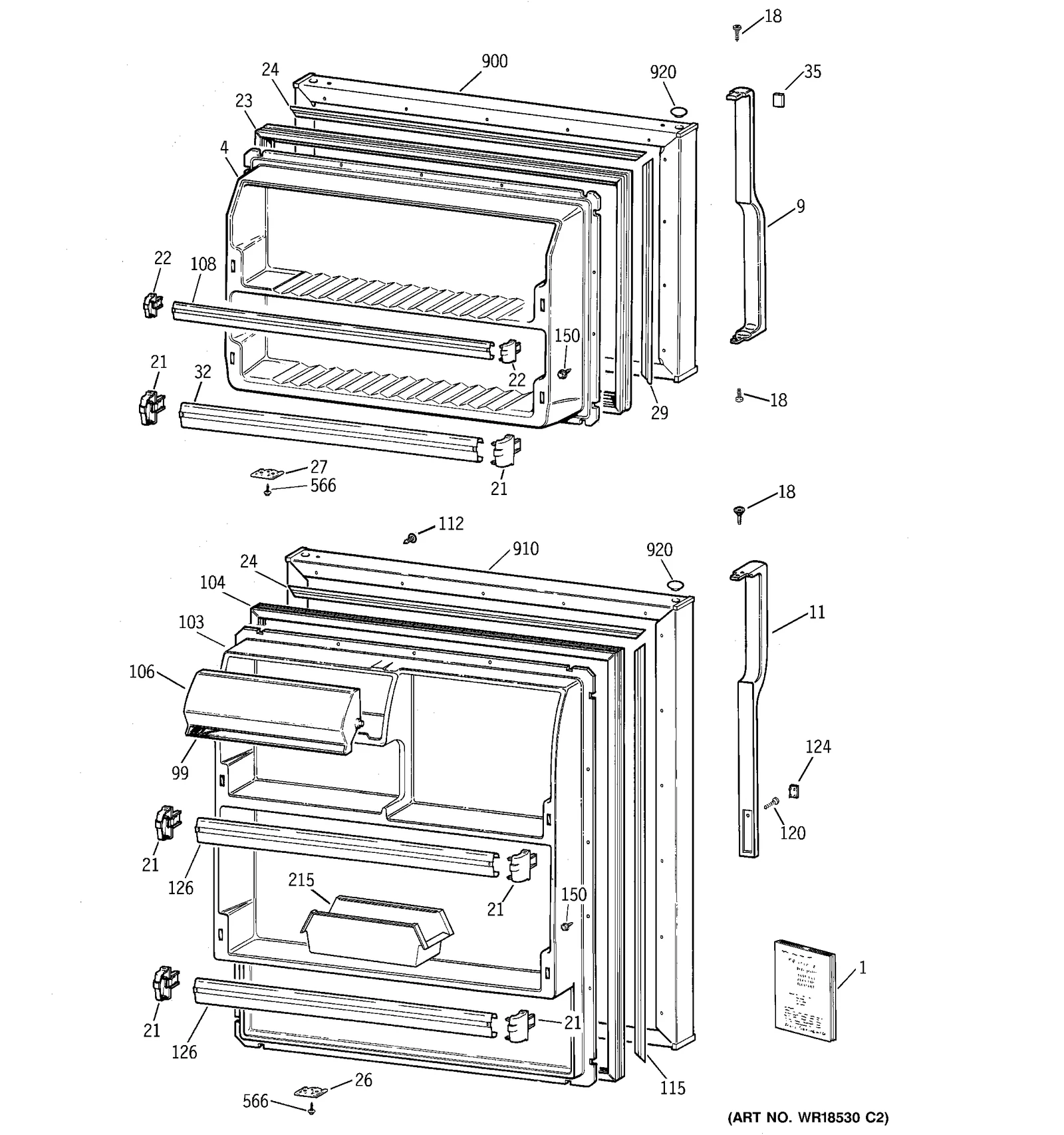

DOORS
Parts in DOORS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5036 ATTENTION INSTALLER | - |
| 1 | – | 31-51289 PM MINI MANUAL WIRING | - |
| 1 | – | 39-6424 GUIDE OWNERS | - |
| 4 |  | WR77X0648NLA DOOR INNER FZ | Discontinued |
| 9 | | HANDLE/NP ASM FZ AD | - |
| 11 | | HANDLE DOOR FF AD | - |
| 21 |  | WR2X9144replaces WR02X9144 CAP SHLF FRT | $22.42 Part Advantage |
| 22 |  | WR2X9162replaces WR02X9162 CAP SHLF FRNT NARROW | $12.36 Part Advantage |
| 23 |  | WR24X10228replaces WR24X0524 GASKET DOOR FRZ | $61.90 Part Advantage |
| 24 | – | WR02X8235 RETAINER STRIP H | - |
| 26 | | WR02X12212replaces WR02X9219 STOP DOOR FF/FZ | - |
| 27 | | WR02X9220NLA STOP DOOR FZ | Discontinued |
| 29 | | RETAINER STRIP V | Discontinued |
| 32 |  | WR17X3880replaces WR17X4026 FRONT DR SHELF LG FZ | $18.82 Part Advantage |
| 35 | | LENS NAMEPLATE | - |
| 99 | | TRIM BRIGHT | - |
| 103 | – | WR77X0651 DOOR INNER FF | - |
| 104 |  | WR24X10236replaces WR24X0558 GASKET DOOR FF | $62.69 Part Advantage |
| 106 | – | WR22X0515 DOOR DAIRY | - |
| 108 | | FRONT DR SHELF SM FZ | - |
| 112 | | WR02X8697NLA PLUG DOOR RVSBL AD | Discontinued |
| 115 | | WR2X9221replaces WR02X9221 RETAINER STRIP V | - |
| 124 | | WR12X0722NLA PLUG BUTTON INSERT AD | Discontinued |
| 126 | | FRONT DR SHELF LG FF | $18.82 Part Advantage |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 215 | | BUCKET UTILITY | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 827 | | WD2X425replaces WD02X0425 SCR 10-12X1/2 AC PNR S | $6.26 Parts Dr |
| 900 | – | WR78X8719 FRZ O. DOOR AD | - |
| 910 | – | WR78X8718 FF O. DOOR AD | - |
| 920 | | WR2X8234replaces WR02X8234 PLUG BUTTON (AD) | - |
