Model
Hotpoint CTX18BASQRWH
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX18BASQRWHRefrigerator
6 diagrams174 parts
Parts Sections (6)
Diagram

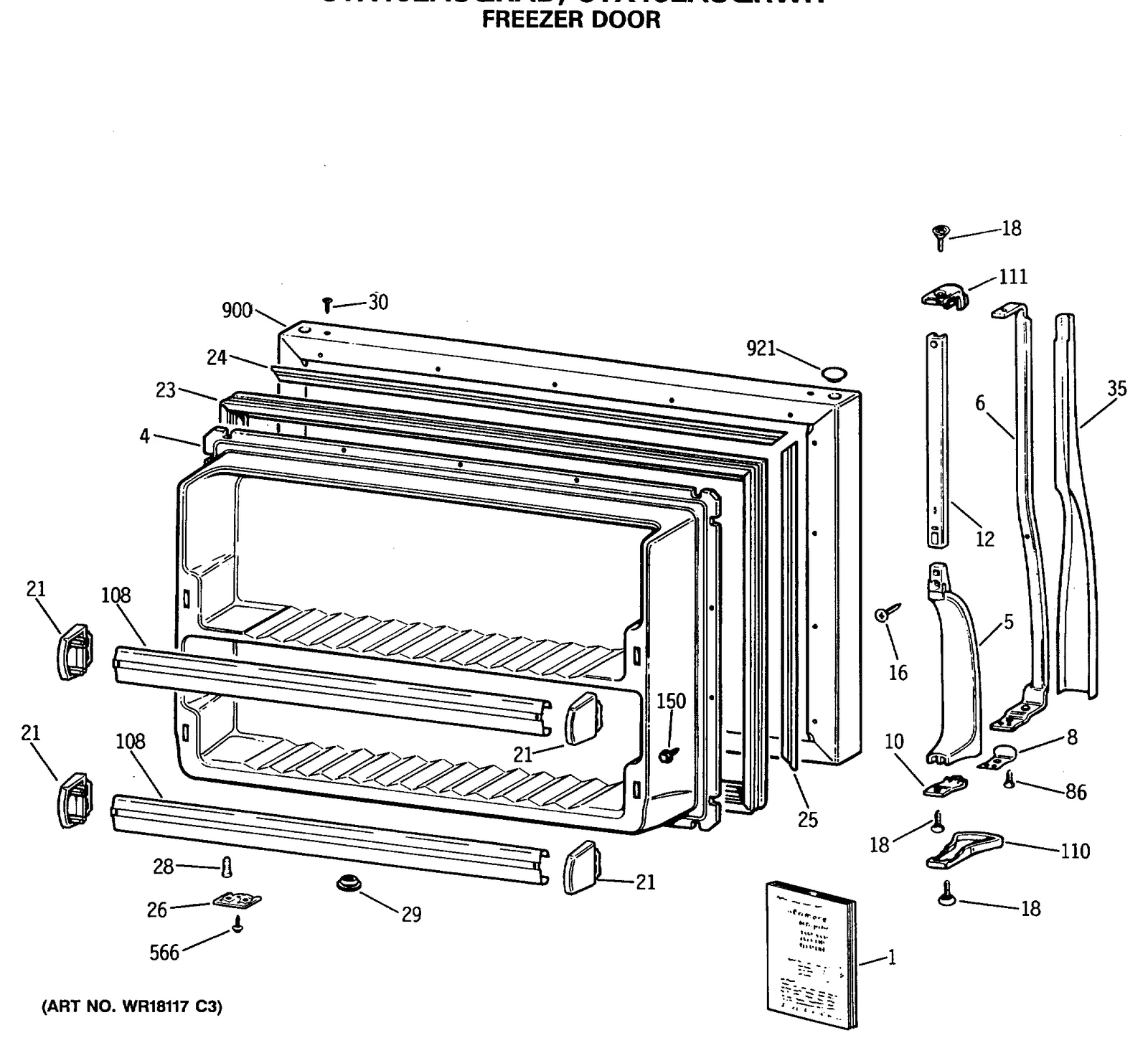

FREEZER DOOR
Parts in FREEZER DOOR
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5025 REF INSTALL INST | - |
| 1 | – | SR2953 PM MINI MANUAL WIRING | - |
| 4 | – | WR77X0610 DOOR INNER FZ | - |
| 5 |  | WR12X0463NLA HANDLE DOOR | Discontinued |
| 6 | – | WR12X0645 STIFFENER HANDLE | - |
| 8 | | WR02X7793NLA SHIM HANDLE ASM | Discontinued |
| 10 | | WR02X7140NLA CLIP HANDLE | Discontinued |
| 12 | | WR12X643replaces WR12X0643 CHANNEL HANDLE | - |
| 16 | | WR1X1565Dreplaces WR01X1565 SCR 8-32 MA FL 21/32 S | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 21 | | CAP SHELF FRONT | Discontinued |
| 23 |  | WR24X449replaces WR24X0449 GASKET DOOR FZ WH | $127.78 Part Advantage |
| 24 | | RETAINER STRIP H | - |
| 25 | | RETAINER STRIP V | - |
| 26 | | WR02X7628NLA DOOR STOP | Discontinued |
| 28 | – | WR02X7627 THIMBLE WH | - |
| 29 | | WR2X8087replaces WR02X8087 PLUG BUTTON INSERT WH | - |
| 30 | | WR1X5475replaces WR01X5475 SCR 8/10-16 AB PA 5/8 | - |
| 35 | – | WR12X0733 INSERT & NAMEPLATE BK | - |
| 86 | | WH02X0940NLA SCR 8-32 TT FL 1/2 S | Discontinued |
| 108 | | WR71X2502NLA FRONT DOOR SHELF | Discontinued |
| 110 |  | CAP TRIM HANDLE | Discontinued |
| 111 | | WR02X7792NLA CAP TRIM HANDLE | Discontinued |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 324 |  | WR2X7051replaces WR02X7051 PLUG BUTTON | - |
| 324 | | WR02X7069NLA PLUG BUTTON | Discontinued |
| 494 |  | WD1X1459replaces WD01X1459 INSULATOR HSNG TERM | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 680 |  | WR1X1850replaces WR01X1850 SCR 7-19 HXW 1/2 | $7.95 ApplianceParts Pro |
| 684 |  | WB01T10047replaces WZ04X0417 SCREW | - |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 788 | – | WB17X5064 HOUSING SOCKET PKG 4 P1N | - |
| 788 | – | WB17X5079 HOUSING SOCKET PKG 6 PIN | - |
| 900 | | WR78X8727replaces WR78X7983 FRZ O.DOOR (WH) | - |
| 921 | | WR02X7624NLA PLUG BUTTON WH | Discontinued |
