Model
Hotpoint CTX18CABLLWW
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX18CABLLWWRefrigerator
7 diagrams153 parts
Parts Sections (7)
Diagram

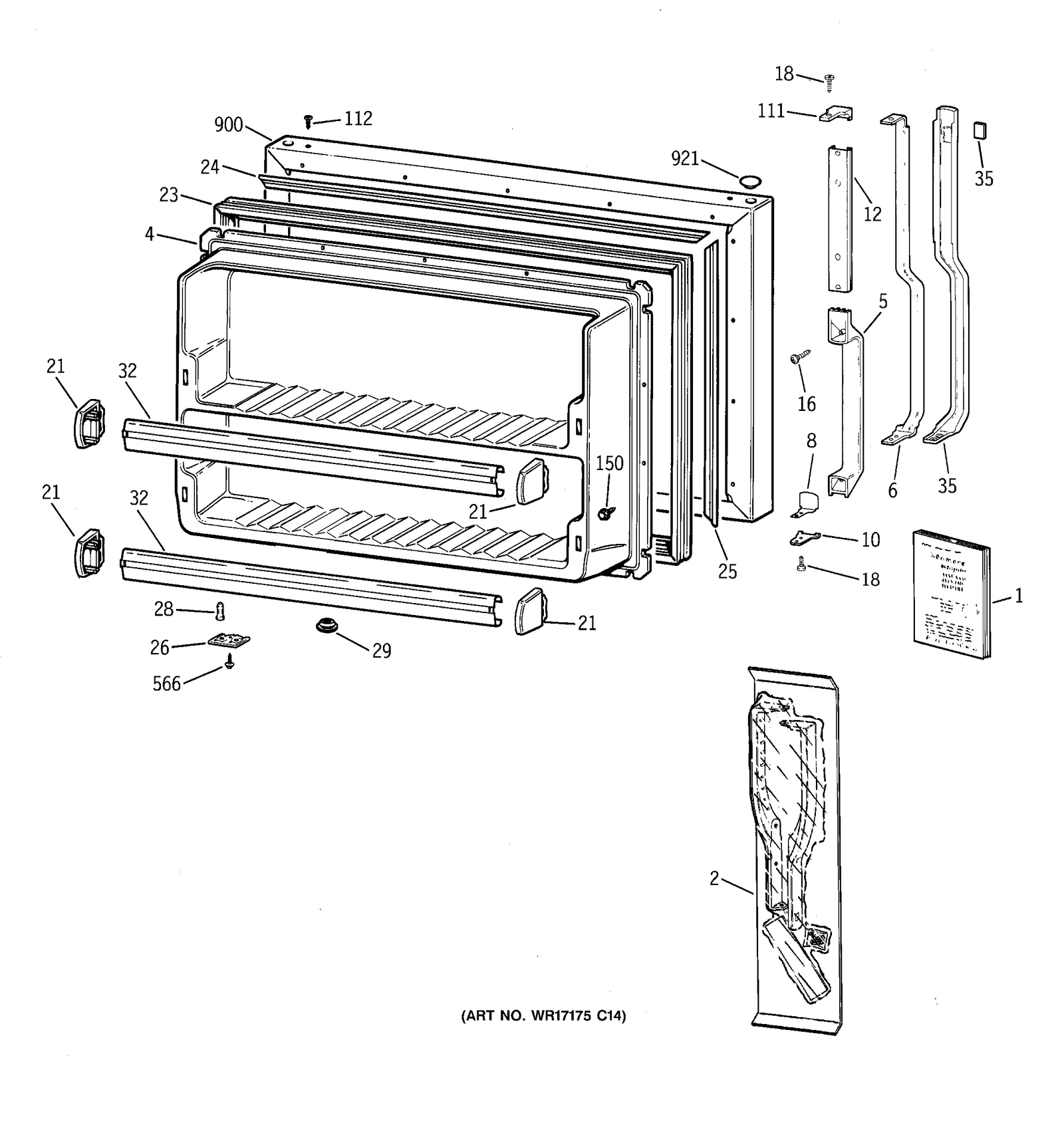

FREEZER DOOR
Parts in FREEZER DOOR
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51208 MINI MANUAL WIRING | - |
| 1 | – | 39-6426 GUIDE OWNERS | - |
| 2 | – | WR12X10091 PK HANDLE SMALL ASM | - |
| 4 | – | WR77X0610 DOOR INNER FZ | - |
| 5 |  | WR12X0553NLA DOOR HANDLE | Discontinued |
| 6 | | STIFFENER HANDLE FZ | - |
| 8 | – | WR02X8089 SHIM HANDLE WH | - |
| 10 | | WR02X7613NLA SHIM HANDLE DOOR | Discontinued |
| 12 | – | WR12X0587 CHANNEL HANDLE FZ | - |
| 16 | | WR1X1724Dreplaces WR01X1724 SCREW | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 21 |  | WR2X9144replaces WR02X9144 CAP SHLF FRT | $22.42 Part Advantage |
| 23 |  | WR24X449replaces WR24X0449 GASKET DOOR FZ WH | $127.78 Part Advantage |
| 24 | | RETAINER STRIP H | - |
| 25 | | RETAINER STRIP V | - |
| 26 | | WR02X7628NLA DOOR STOP | Discontinued |
| 28 | | THIMBLE DOOR PLASTIC WH | - |
| 29 | | WR2X8087replaces WR02X8087 PLUG BUTTON INSERT WH | - |
| 32 |  | FRONT DOOR SHELF FZ | $54.70 Parts Dr |
| 35 | | LENS NAMEPLATE | - |
| 35 | – | WR12X10088 INSERT/NP HNDL FZ WH | - |
| 111 | | WR02X7610NLA CAP TRIM HANDLE | Discontinued |
| 112 |  | WR01X21159replaces WR02X8693 BEAUTY BUTTON-WHT | $5.09 Part Advantage |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 900 | | DOOR OUTER FZ WH | - |
| 921 | | WR02X7624NLA PLUG BUTTON WH | Discontinued |
