Model
Hotpoint CTX18CABQRAA
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelHotpoint
CTX18CABQRAARefrigerator
6 diagrams160 parts
Parts Sections (6)
Diagram

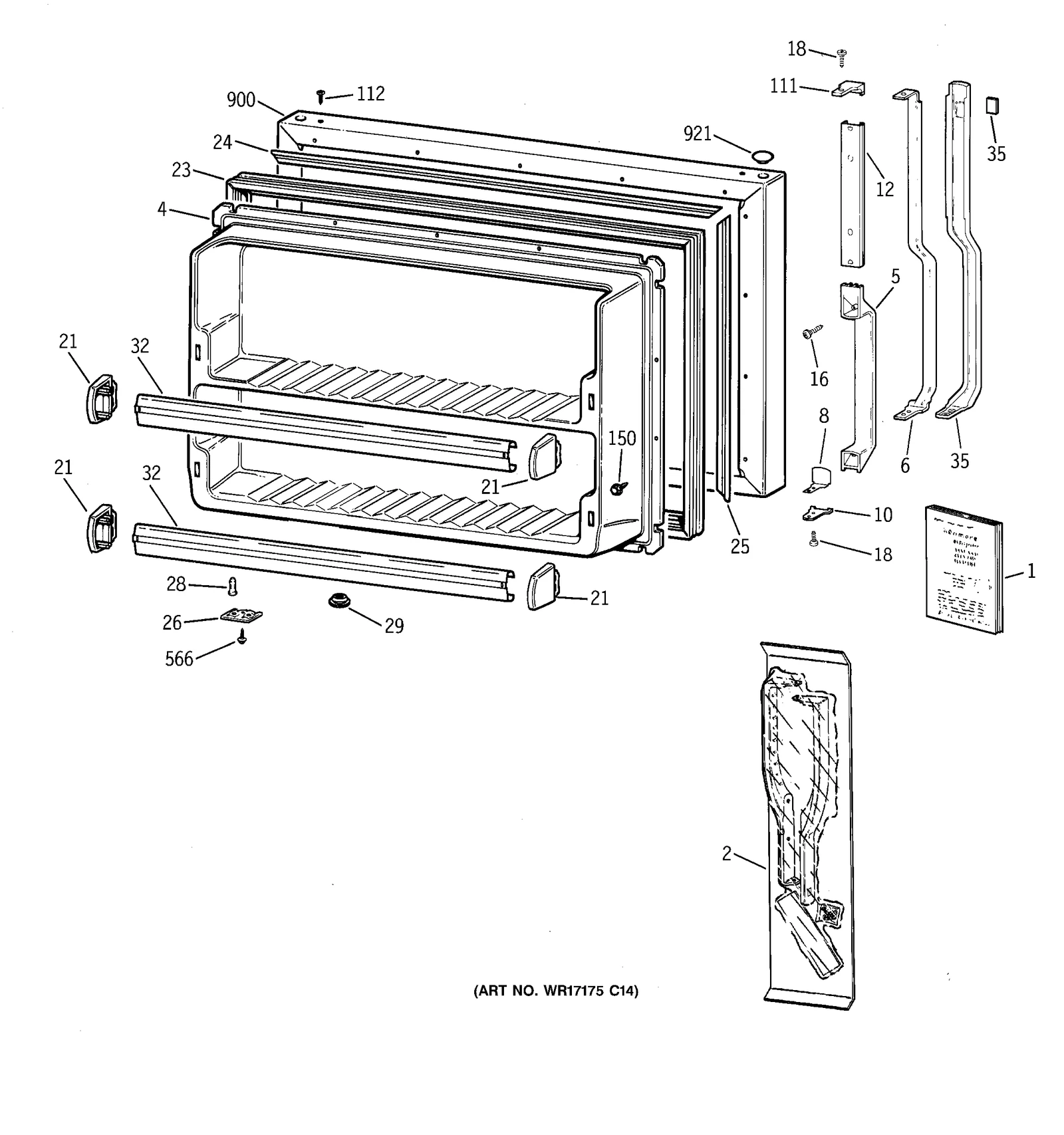

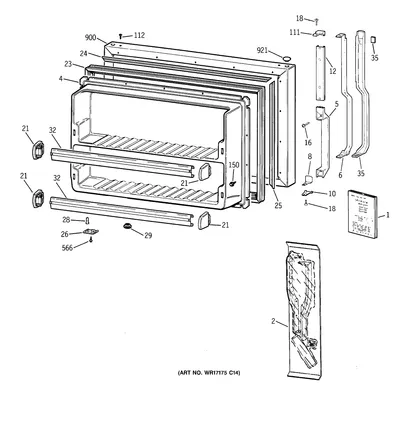

FREEZER DOOR
Parts in FREEZER DOOR
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-5064 PM ATTENTION INSTALLER | - |
| 1 | – | 31-51228 PM MINI MANUAL WIRING | - |
| 1 | – | 39-6427 PM GUIDE OWNERS | - |
| 2 | – | WR12X10090 HANDLE PK ASM AD | - |
| 4 | – | WR77X0610 DOOR INNER FZ | - |
| 5 |  | WR12X0553NLA DOOR HANDLE | Discontinued |
| 6 | | STIFFENER HANDLE FZ | - |
| 8 | | WR02X8090NLA SHIM HANDLE AD | Discontinued |
| 10 | | WR02X7613NLA SHIM HANDLE DOOR | Discontinued |
| 12 | – | WR12X0587 CHANNEL HANDLE FZ | - |
| 16 | | WR1X1724Dreplaces WR01X1724 SCREW | - |
| 18 |  | WR1X1726Dreplaces WR01X1726 SCR 10-16 AB 3/4 SS | $23.52 Part Advantage |
| 21 |  | WR2X9144replaces WR02X9144 CAP SHLF FRT | $22.42 Part Advantage |
| 23 |  | WR24X449replaces WR24X0449 GASKET DOOR FZ WH | $127.78 Part Advantage |
| 24 | | RETAINER STRIP H | - |
| 25 | | RETAINER STRIP V | - |
| 26 | | WR02X7628NLA DOOR STOP | Discontinued |
| 28 | | THIMBLE DOOR PLASTIC WH | - |
| 29 | – | WR02X8088 PLUG BUTTON INSERT AD | - |
| 32 |  | FRONT DOOR SHELF FZ | $54.70 Parts Dr |
| 35 | | LENS NAMEPLATE | - |
| 35 | | INSERT & NAMEPLATE ASM | - |
| 111 | | WR02X7610NLA CAP TRIM HANDLE | Discontinued |
| 112 | | WR02X8697NLA PLUG DOOR RVSBL AD | Discontinued |
| 150 |  | WR1X1791Dreplaces WR01X1791 SCR 8-15 SPEC | $22.07 RepairClinic |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 566 |  | WR01X10590replaces WR01X1728 SCR 10-16 1/2 PH | $5.09 Part Advantage |
| 690 |  | WZ5X158Dreplaces WR01X1466 SCR 8-32 T HXW 3/8 S | $27.34 ApplianceParts Pro |
| 900 | | DOOR OUTER FZ AD | - |
| 921 | | WR02X7625NLA PLUG BUTTON AD | Discontinued |
