Model
GE GDF510PGR3BB
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF510PGR3BBDishwasher
6 diagrams94 parts
Parts Sections (6)
Diagram

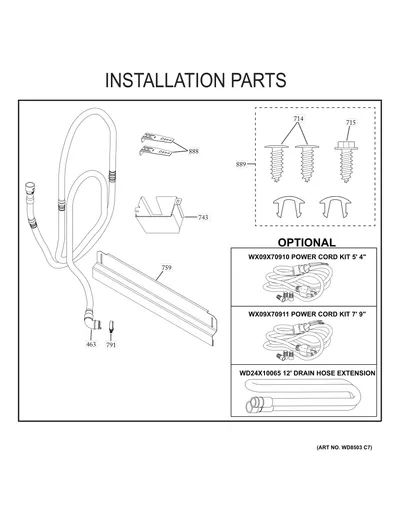

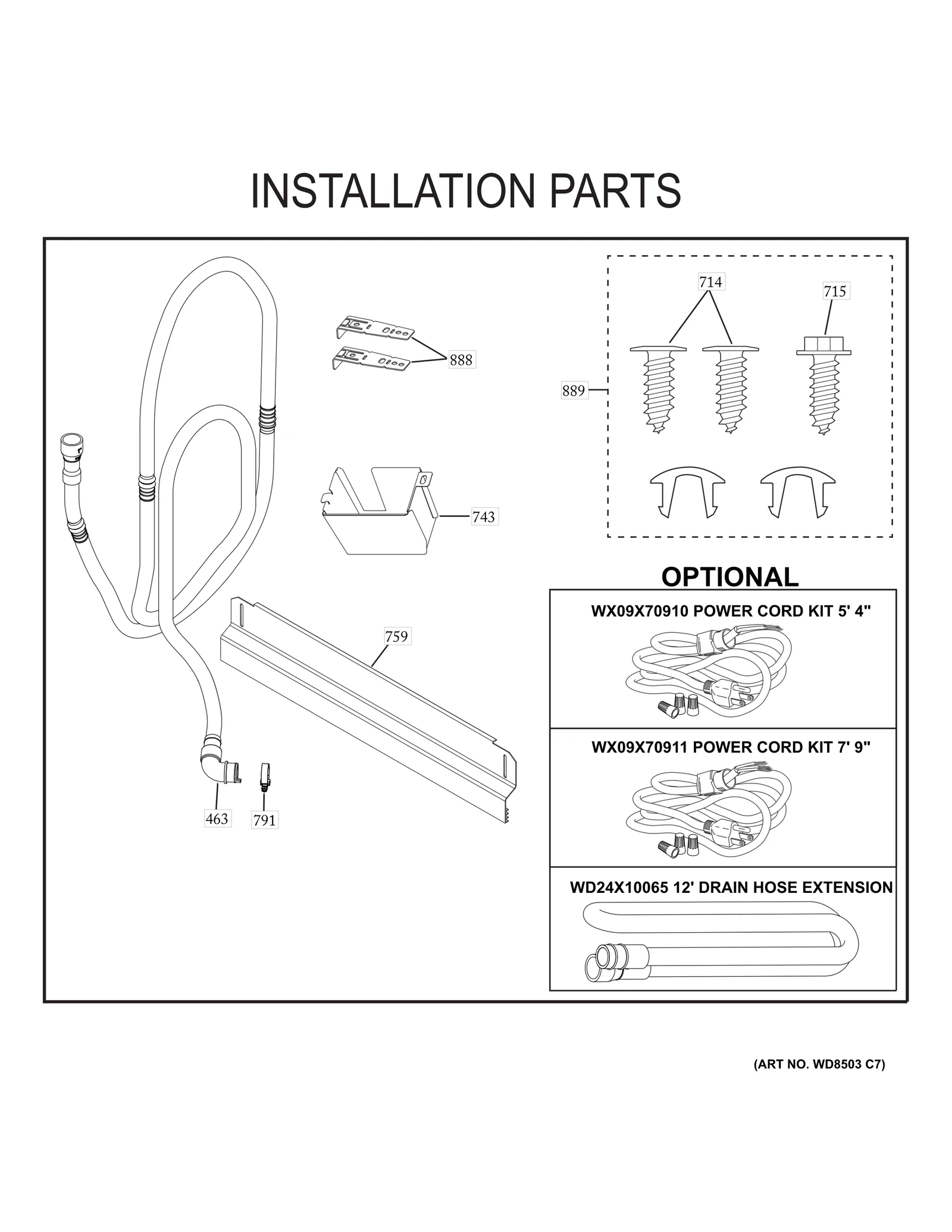

INSTALLATION PARTS
Parts in INSTALLATION PARTS
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 463 |  | WD24X34763replaces WD24X27723 EXTENSION DRAIN HOSE | $18.61 Part Advantage |
| 714 |  | SCREW 8-18 BA POR 5/8 SS | $7.18 Parts Dr |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 743 |  | COVER JUNCTION BOX | $19.39 Part Advantage |
| 759 |  | BLACK TOE KICK | $13.55 Part Advantage |
| 791 |  | CLAMP | $9.47 RepairClinic |
| 888 |  | COUNTERTOP BRACKET | $17.83 Part Advantage |
| 889 |  | COUNTERTOP BRACKET SCREWS ASSEMBLY | - |
