Model
GE GDF511PGM0WW
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF511PGM0WWDishwasher
6 diagrams111 parts

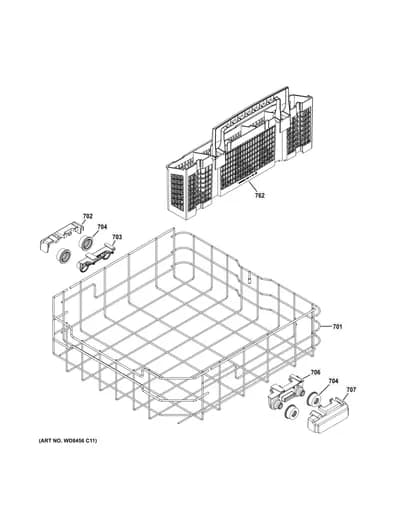

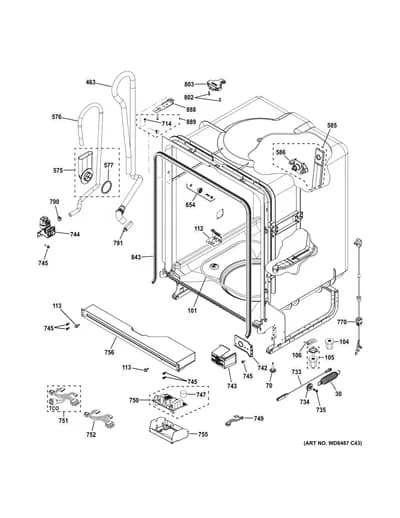

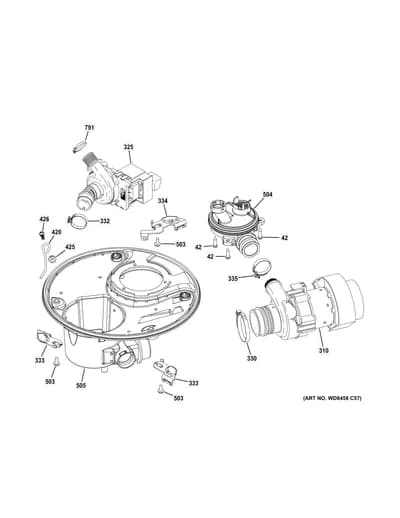

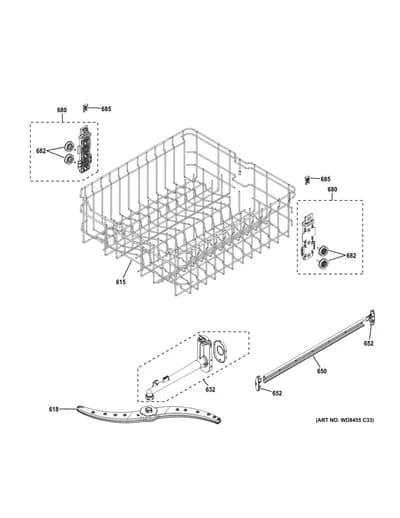

Parts Sections (6)
Diagram

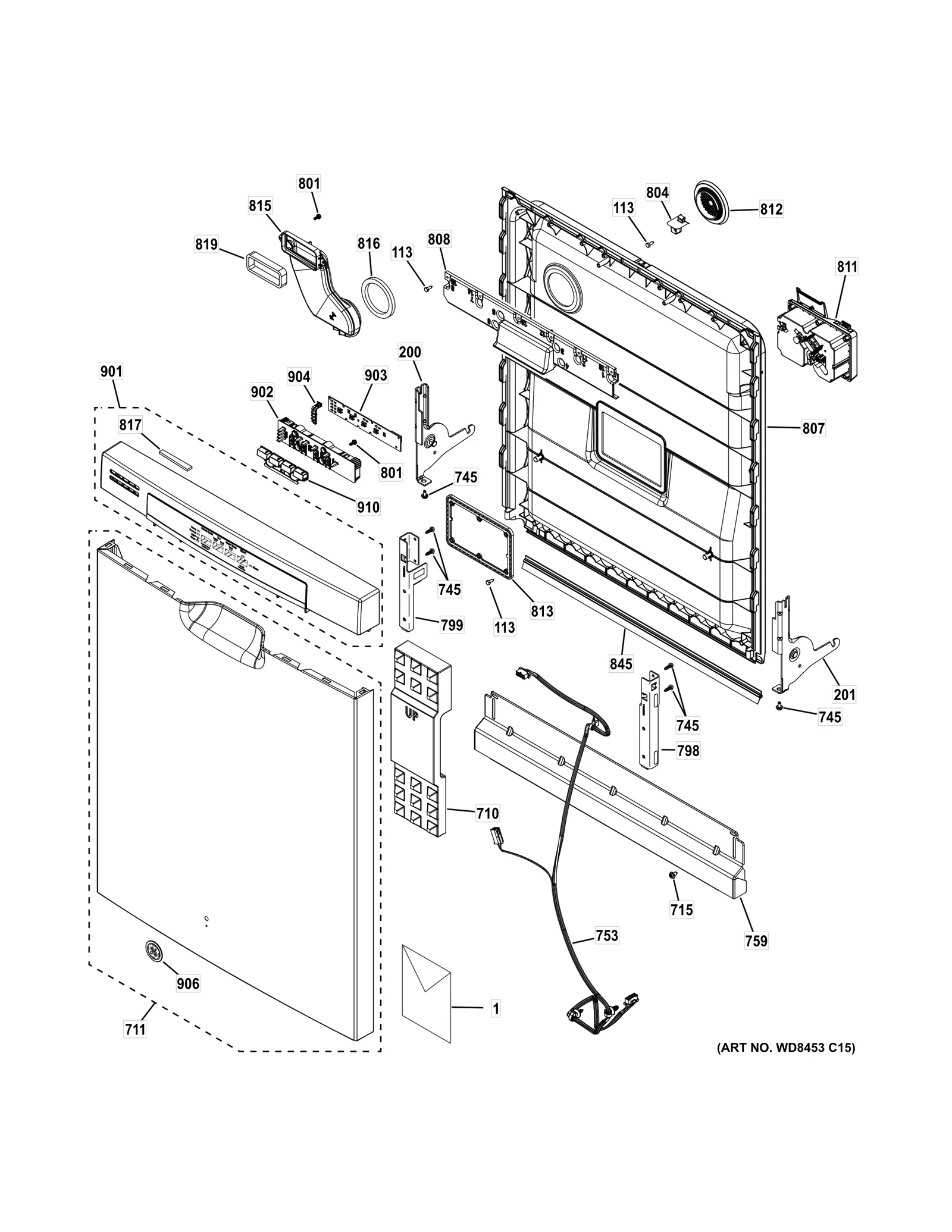

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-55121 PM QUICK START GUIDE | - |
| 1 | – | 31-31586 PM INSTALL INSTRUCTIONS | - |
| 1 | – | 165D9739P037 INSERT MINI MANUAL | - |
| 1 | – | 49-55122 PM OWNERS MANUAL | - |
| 1 | – | 31-30903 PM MINI-MANUAL | - |
| 113 |  | SCREW 8-16 HXW 1/2 SS | $7.26 Parts Dr |
| 200 |  | ARM HINGE ASM RH | $13.36 Part Advantage |
| 201 |  | ARM HINGE ASM | $13.36 Part Advantage |
| 710 |  | BLOCK FOAM DOOR | - |
| 711 |  | WD34X25746replaces WD27X24384 OUTER DOOR PAINTED, WW | - |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 745 |  | SCR 10-32 GX IHXW 9/16 S | $5.09 Part Advantage |
| 753 |  | DOOR HARNESS ASM UI | - |
| 759 | – | WD27X10393 TOE KICK PAINTED ASM | - |
| 798 |  | BRACKET SUPPORT HINGE | $9.01 Parts Dr |
| 799 |  | BRACKET SUPPORT HINGE | $8.96 Parts Dr |
| 801 |  | SCR 6-20 GXB IHXW 3/8 NI | $9.59 ApplianceParts Pro |
| 804 |  | STRIKER LATCH | $5.09 Part Advantage |
| 807 |  | WD31X24834replaces WD31X24433 DOOR INNER ASM | $135.45 Parts Dr |
| 808 |  | POCKET HANDLE | $26.70 Part Advantage |
| 811 |  | WD12X32798replaces WD12X24058 DETERGENT DISP NO SENSOR | $27.45 Part Advantage |
| 812 |  | VENT - GREY/ HYBRID | $15.23 Parts Dr |
| 813 |  | PLATE DETERGENT | $9.03 Parts Dr |
| 815 |  | DIVERTER AIR ASM | - |
| 816 |  | DOOR VENT SEAL | $15.62 Part Advantage |
| 817 |  | FOAM VENT INSERT | $6.29 RepairClinic |
| 819 |  | GASKET VENT | $16.00 Parts Dr |
| 845 |  | GASKET BEACH PLASTIC | $17.75 Part Advantage |
| 901 |  | PANEL CONTROL ASM, WW | - |
| 902 |  | HOUSING UI BOARD | $7.95 ApplianceParts Pro |
| 903 |  | CONFIGURED UI CONTROL | $24.76 Part Advantage |
| 904 |  | SHIELD LIGHT | $3.47 RepairClinic |
| 906 |  | GEA BADGE FLAT CHROME | $11.29 Part Advantage |
| 910 |  | BUTTON TREE | $14.95 ApplianceParts Pro |
