Model
GE GDF520PSD1SS
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF520PSD1SSDishwasher
6 diagrams124 parts
Parts Sections (6)

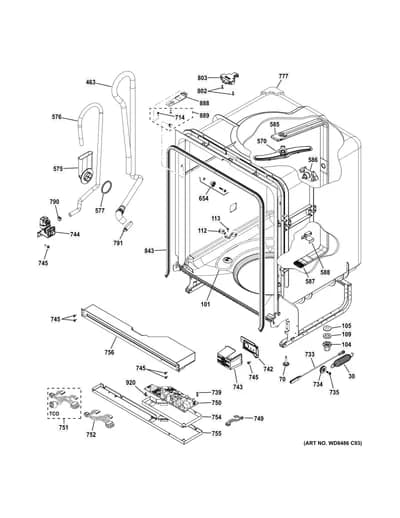

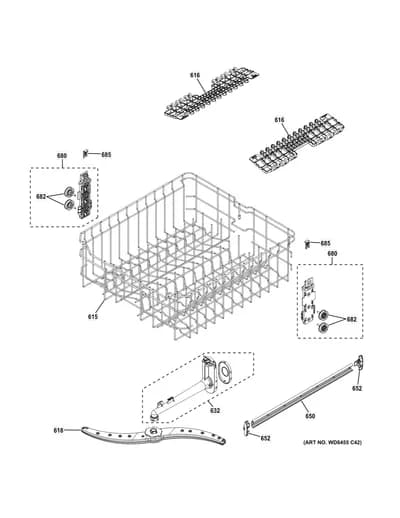

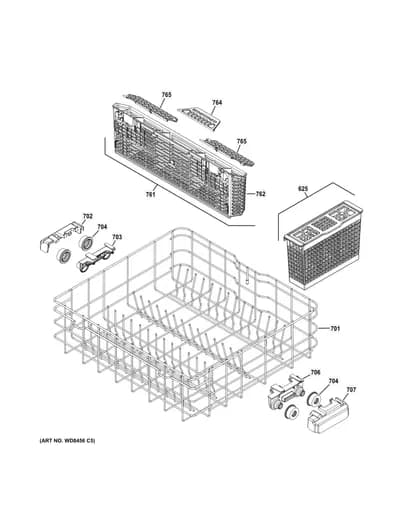

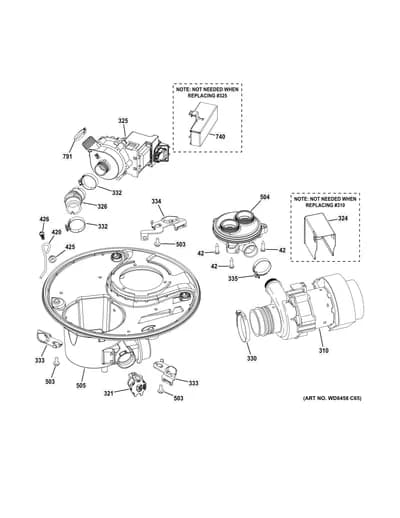

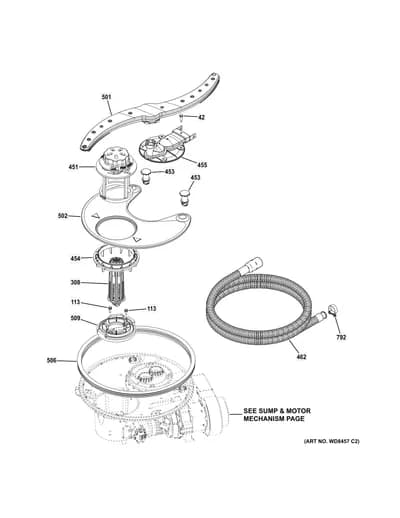

Diagram

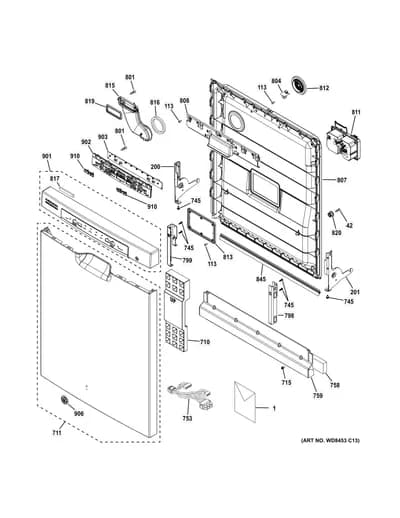

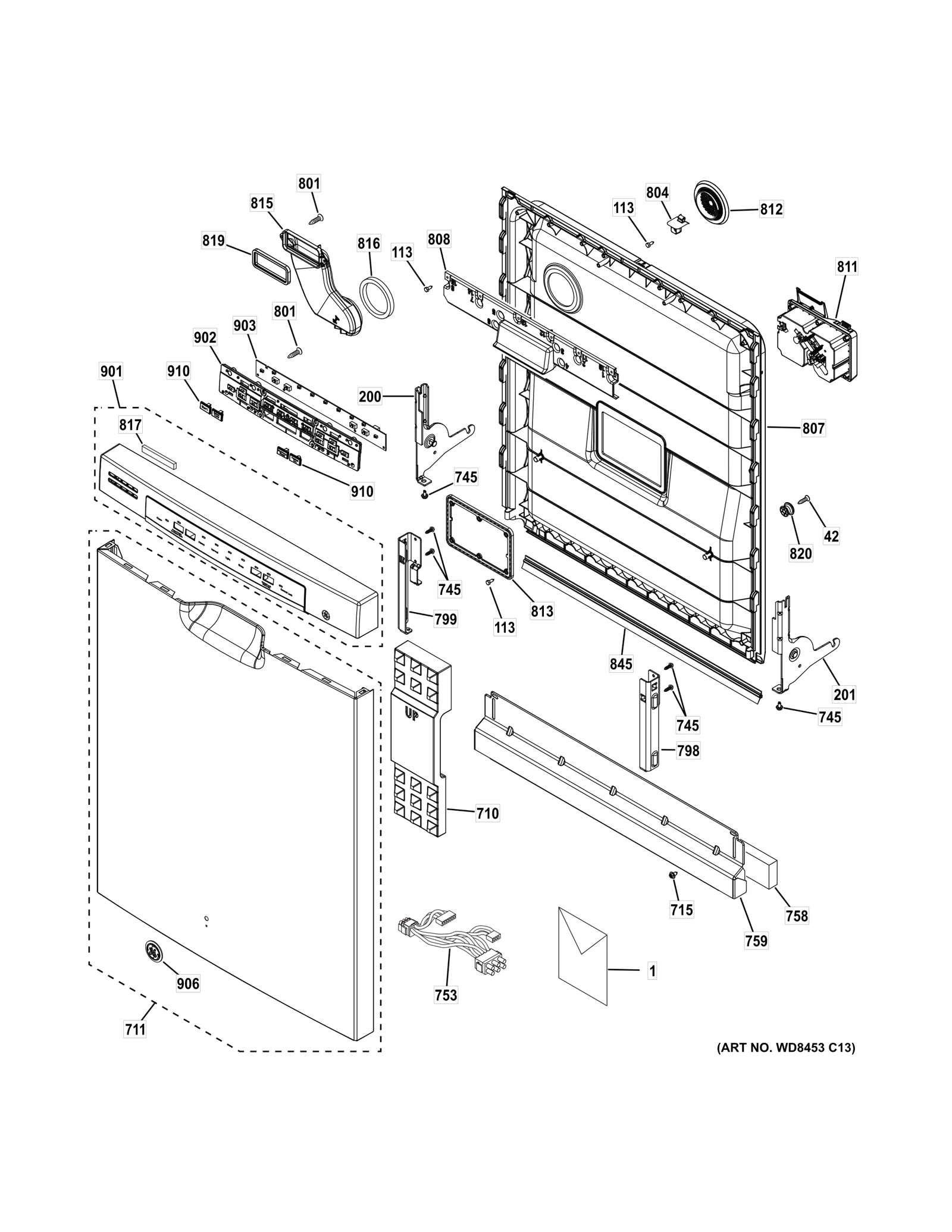

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-55082 PM OWNERS MANUAL | - |
| 1 | – | 31-30643-3 PM MINI-MANUAL | - |
| 1 | – | 165D9739P006 INSERT MINI MANUAL | - |
| 1 | – | 31-31506 PM INSTALL INSTRUCTIONS | - |
| 42 |  | WD02X22736replaces WD02X10110 SCREW #8-3/4 L HX HD SS | $5.09 Part Advantage |
| 113 |  | SCREW 8-16 HXW 1/2 SS | $7.26 Parts Dr |
| 200 |  | WD35X20486replaces WD14X10051 ARM HINGE ASM LH | - |
| 201 |  | WD14X10050NLA ARM HINGE ASM RH | Discontinued |
| 710 |  | BLOCK FOAM DOOR | - |
| 711 |  | WD34X25752replaces WD34X11821 OUTER DOOR FRONT CTRL SS | - |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 745 | | SCR 10-32 TT HXW 14/25 S | $2.83 Parts Dr |
| 753 | | HARNESS ASM DOOR | - |
| 758 |  | WD27X21334replaces WD01X10581 INSULATION TOE KICK | $8.76 Parts Dr |
| 759 |  | WD27X34579replaces WD27X10392 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 798 | | BRACKET SUPPORT HINGE | Discontinued |
| 799 | | WD35X20486replaces WD01X10597 BRACKET SUPPORT HINGE | - |
| 801 |  | 6-19 X 1/4 TORX PAN HEAD | $7.95 ApplianceParts Pro |
| 804 |  | STRIKER LATCH | $5.09 Part Advantage |
| 807 |  | WD27X29398replaces WD31X10139 DOOR INNER PLASTIC | - |
| 808 |  | POCKET HANDLE | - |
| 811 |  | WD12X32798replaces WD12X10415 MODULE DETERGENT | $27.45 Part Advantage |
| 812 |  | WD12X10471replaces WD12X10423 COVER VENT | $15.23 Parts Dr |
| 813 |  | PLATE DETERGENT | $9.03 Parts Dr |
| 815 |  | WD35X20855replaces WD12X10425 DIVERTER AIR ASM | $28.48 Parts Dr |
| 816 |  | DOOR VENT SEAL | $15.62 Part Advantage |
| 817 |  | WD08X10100replaces WD01X20063 FOAM VENT INSERT | - |
| 819 | | WD08X22476replaces WD08X10091 GASKET VENT | $16.00 Parts Dr |
| 820 | | WD01X24424replaces WD01X10576 MOUNTING BASKET DOOR | - |
| 845 |  | WD08X21894replaces WD08X10090 GASKET BEACH PLASTIC | $17.75 Part Advantage |
| 901 | | WD34X11836NLA PANEL CONTROL ASM | Discontinued |
| 902 |  | SILICONE LIGHT PIPE | $39.30 Parts Dr |
| 903 |  | WD21X31899replaces WD21X20067 CONTROL BOARD INTERFACE | $81.89 Part Advantage |
| 906 |  | BADGE GE ASM | $6.89 Part Advantage |
| 910 |  | BUTTON TREE | - |
