Model
GE GDF530PGM3BB
Dishwasher
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF530PGM3BBDishwasher
8 diagrams125 parts
Parts Sections (8)
Diagram

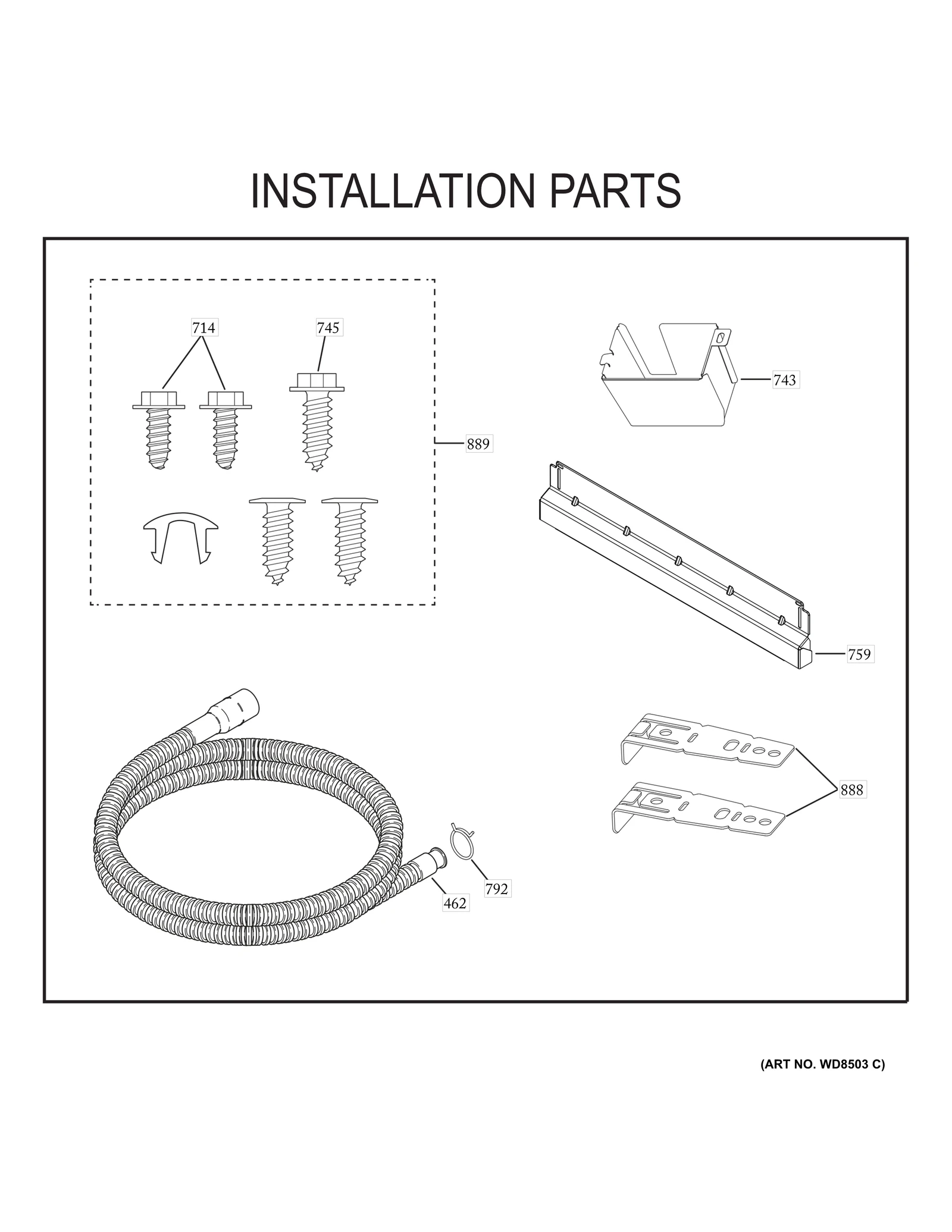

INSTALLATION PARTS
Parts in INSTALLATION PARTS
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 462 |  | DRAIN TUBE ASM | $12.07 Part Advantage |
| 714 |  | WD02X10160replaces WD02X10083 SCREW 8-18 B HXW 480 S | $8.82 RepairClinic |
| 743 |  | COVER JUNCTION BOX | $19.39 Part Advantage |
| 745 |  | SCR 10-32 GX IHXW 9/16 S | $5.09 Part Advantage |
| 759 |  | WD27X34579replaces WD27X26218 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 792 |  | CLAMP | $5.72 Part Advantage |
| 888 |  | BRACKET COUNTERTOP | $18.88 Part Advantage |
| 889 |  | DISHWASHER COUNTERTOP SCREW & BUTTONPLUG | $5.09 Part Advantage |
