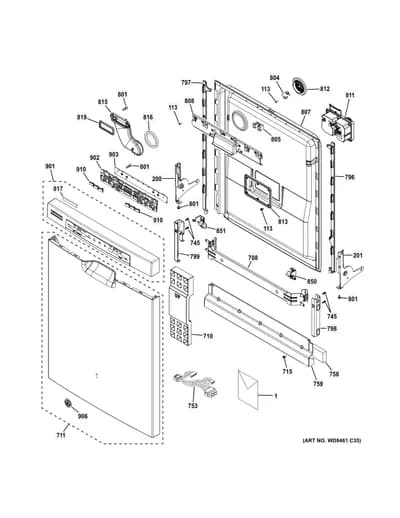

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-31506 PM INSTALL INSTRUCTIONS | - |
| 1 |  | SCR 1/4-20 BT CB .563 ZN | - |
| 1 | – | 165D9739P006 INSERT MINI MANUAL | - |
| 1 | – | 49-55082 PM OWNERS MANUAL | - |
| 1 | – | 31-30643-3 PM MINI-MANUAL | - |
| 113 |  | SCREW 8-16 HXW 1/2 SS | $7.26 Parts Dr |
| 200 |  | WD35X20486replaces WD14X10051 ARM HINGE ASM LH | - |
| 201 | | WD14X10050NLA ARM HINGE ASM RH | Discontinued |
| 708 |  | BRACE DOOR ASM | - |
| 710 |  | BLOCK FOAM DOOR | $8.99 ApplianceParts Pro |
| 711 |  | WD34X22632replaces WD34X20505 KIT DOOR ASM OUTER | - |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 745 | | SCR 10-32 TT HXW 14/25 S | $2.83 Parts Dr |
| 753 |  | HARNESS ASM DOOR | $40.02 PartSelect |
| 758 |  | WD27X21334replaces WD01X10581 INSULATION TOE KICK | $8.76 Parts Dr |
| 759 |  | WD27X34579replaces WD27X10392 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 796 |  | WD01X22836replaces WD01X10633 ATTACH STRIP | - |
| 797 |  | WD01X34879replaces WD01X10634 ATTACH STRIP | $7.52 ApplianceParts Pro |
| 798 | | BRACKET SUPPORT HINGE | Discontinued |
| 799 | | WD35X20486replaces WD01X10597 BRACKET SUPPORT HINGE | - |
| 801 |  | 6-19 X 1/4 TORX PAN HEAD | $7.95 ApplianceParts Pro |
| 804 |  | STRIKER LATCH | $5.09 Part Advantage |
| 805 |  | WD13X22837replaces WD13X10068 STRIKER ADAPTER | $117.51 PartSelect |
| 807 | | WD31X10140NLA DOOR INNER SS | Discontinued |
| 808 |  | POCKET HANDLE | - |
| 811 |  | WD12X32798replaces WD12X10415 MODULE DETERGENT | $27.45 Part Advantage |
| 812 |  | WD12X10472replaces WD12X10450 COVER VENT | $27.22 ApplianceParts Pro |
| 813 |  | PLATE DETERGENT | $7.22 Parts Dr |
| 815 |  | WD35X20855replaces WD12X10425 DIVERTER AIR ASM | $28.48 Parts Dr |
| 816 |  | DOOR VENT SEAL | $15.62 Part Advantage |
| 817 |  | WD08X10100replaces WD01X20063 FOAM VENT INSERT | - |
| 819 | | WD08X22476replaces WD08X10091 GASKET VENT | $16.00 Parts Dr |
| 850 |  | TRIM DOOR RH | - |
| 851 |  | TRIM DOOR LH | - |
| 901 | | PANEL CONTROL ASM | - |
| 902 |  | SILICONE LIGHT PIPE | $39.30 Parts Dr |
| 903 |  | WD21X31899replaces WD21X20067 CONTROL BOARD INTERFACE | $81.89 Part Advantage |
| 906 |  | BADGE GE ASM | $6.89 Part Advantage |
| 910 | | BUTTON TREE PAINTED | $13.94 Parts Dr |
