Model
GE GDF565SSN3SS
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF565SSN3SSDishwasher
6 diagrams104 parts
Parts Sections (6)
Diagram

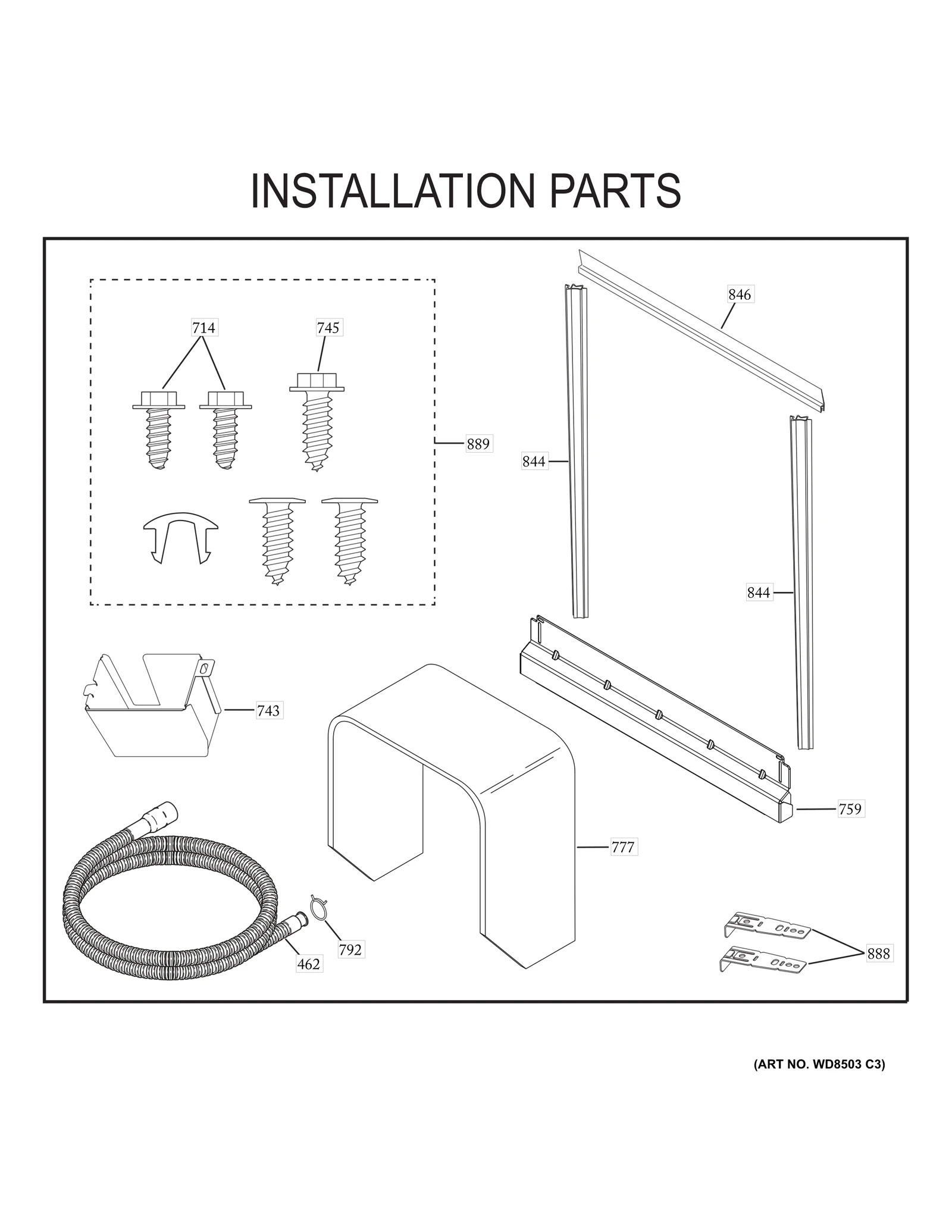

INSTALLATION PARTS
Parts in INSTALLATION PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 462 |  | DRAIN TUBE ASM | $12.07 Part Advantage |
| 714 |  | WD02X10160replaces WD02X10083 SCREW 8-18 B HXW 480 S | $8.82 RepairClinic |
| 743 |  | COVER JUNCTION BOX | $19.39 Part Advantage |
| 745 |  | SCR 10-32 GX IHXW 9/16 S | $5.09 Part Advantage |
| 759 |  | WD27X34579replaces WD27X26218 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 777 |  | WD30X28658replaces WD01X10419 INSULATION TUB | $6.76 Part Advantage |
| 792 |  | SPRING CLAMP | $5.72 Part Advantage |
| 844 |  | WD01X31618replaces WD08X10095 SIDE TUB TRIM | $11.10 Part Advantage |
| 846 | | WD01X31618replaces WD08X20719 TOP TUB TRIM | $11.10 Part Advantage |
| 888 |  | BRACKET COUNTERTOP | $18.88 Part Advantage |
| 889 |  | DISHWASHER COUNTERTOP SCREW & BUTTONPLUG | $5.09 Part Advantage |
