Model
GE GDF570SGF2CC
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF570SGF2CCDishwasher
6 diagrams137 parts
Parts Sections (6)

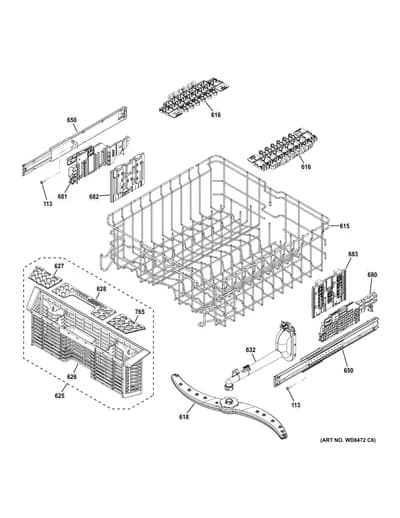

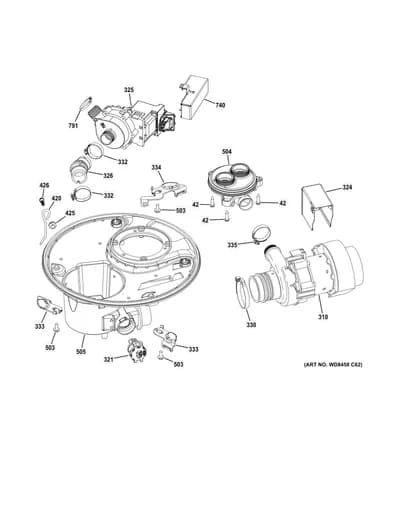

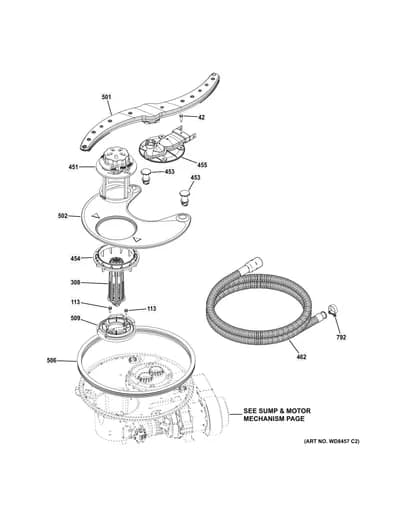

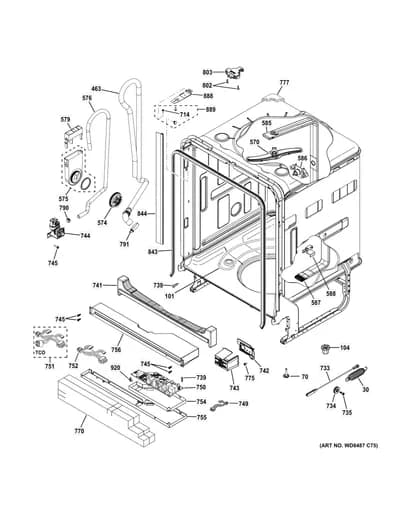

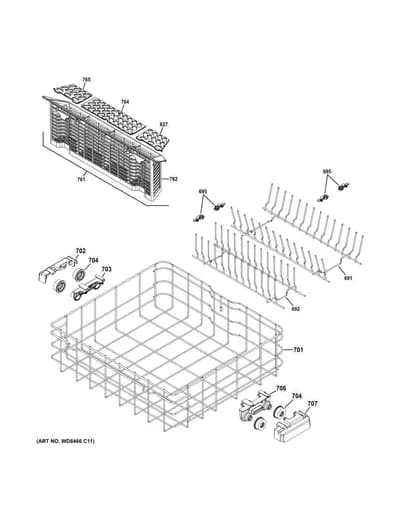

Diagram

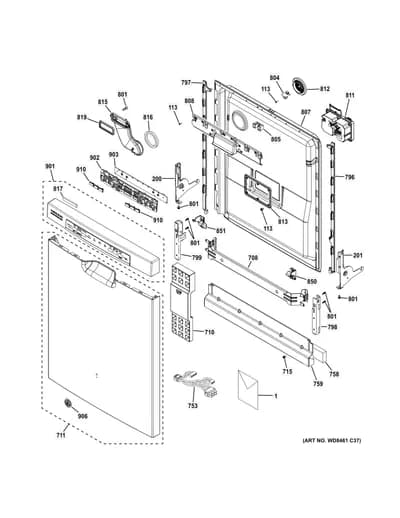

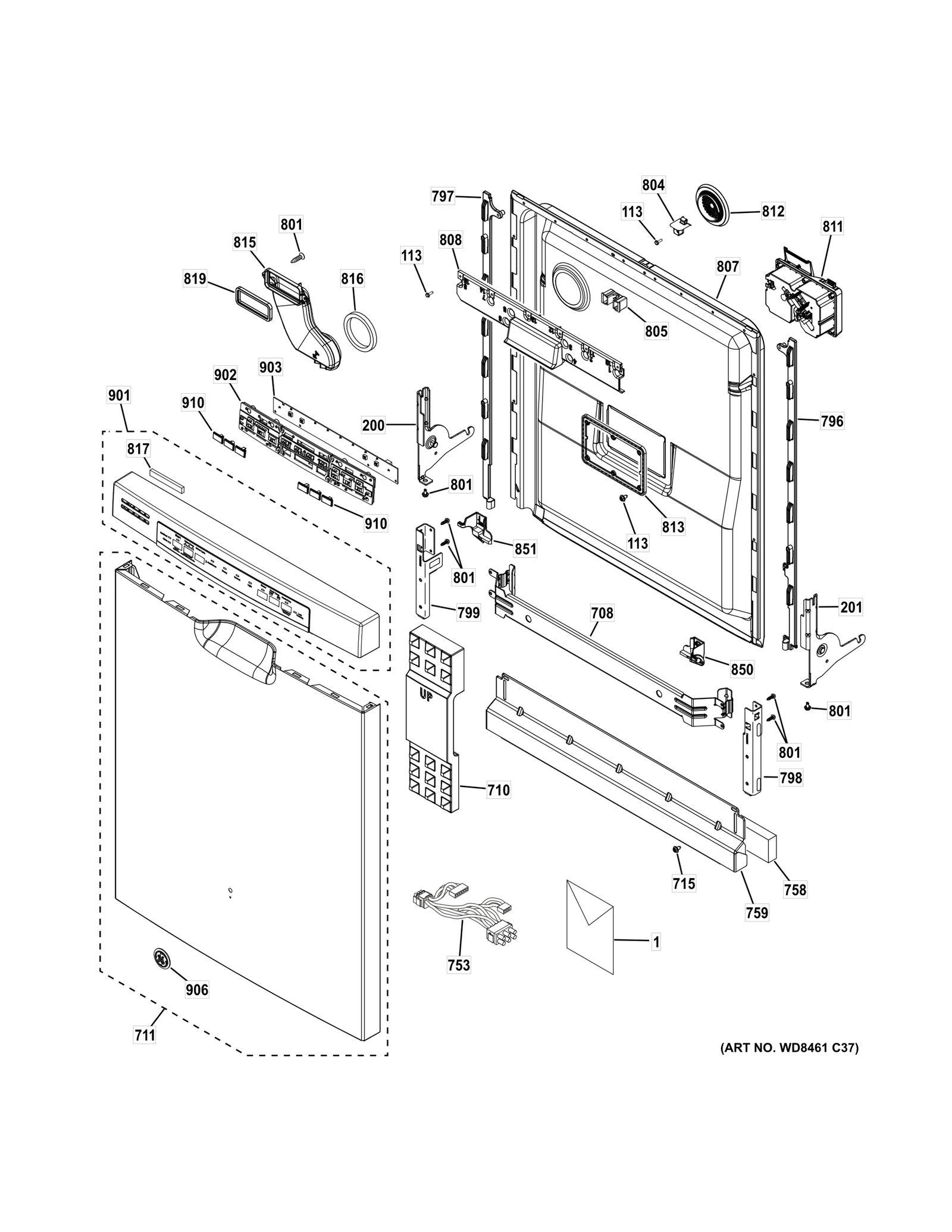

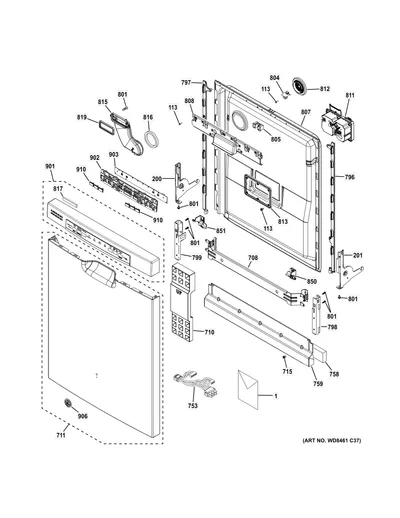

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-30669 PM MINI-MANUAL | - |
| 1 | – | 165D9739P013 INSERT MINI MANUAL | - |
| 1 | – | 49-55085 PM OWNERS MANUAL | - |
| 1 | – | 31-31512 PM INSTALL INSTRUCTIONS | - |
| 113 |  | SCREW 8-16 HXW 1/2 SS | $7.26 Parts Dr |
| 200 |  | ARM HINGE ASM | $13.36 Part Advantage |
| 201 |  | ARM HINGE ASM RH | $13.36 Part Advantage |
| 708 |  | BRACE DOOR ASM | - |
| 710 |  | BLOCK FOAM DOOR | $8.99 ApplianceParts Pro |
| 711 |  | WD27X24838replaces WD34X20527 KIT DOOR ASM OUTER | - |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 753 |  | HARNESS ASM DOOR | $25.10 Parts Dr |
| 758 |  | INSULATION TOE KICK | $8.76 Parts Dr |
| 759 | – | WD27X10394 TOE KICK PAINTED ASM | - |
| 796 |  | WD01X22836replaces WD01X10633 ATTACH STRIP | - |
| 797 |  | WD01X34879replaces WD01X10634 ATTACH STRIP | $7.52 ApplianceParts Pro |
| 798 |  | WD01X22513replaces WD01X20126 BRKT SUPPORT HINGE ASM | $8.96 Parts Dr |
| 799 |  | WD01X22512replaces WD01X20127 BRKT SUPPORT HINGE ASM | $9.01 Parts Dr |
| 801 |  | SCR 10-32 GX IHXW 9/16 S | $5.09 Part Advantage |
| 804 |  | STRIKER LATCH | $5.09 Part Advantage |
| 805 |  | WD13X22837replaces WD13X10068 STRIKER ADAPTER | $117.51 PartSelect |
| 807 |  | WD31X29639replaces WD31X20237 DOOR INNER SS | $182.95 ApplianceParts Pro |
| 807 |  | WD31X10140NLA DOOR INNER SS | Discontinued |
| 808 |  | POCKET HANDLE | - |
| 811 |  | WD12X32798replaces WD12X10415 MODULE DETERGENT | $27.45 Part Advantage |
| 812 |  | WD12X10472replaces WD12X10450 COVER VENT | $27.22 ApplianceParts Pro |
| 813 |  | PLATE DETERGENT | $7.22 Parts Dr |
| 815 |  | WD35X20855replaces WD12X10442 DIVERTER AIR ASM | $28.48 Parts Dr |
| 816 |  | DOOR VENT SEAL | $15.62 Part Advantage |
| 817 |  | FOAM VENT INSERT | $6.29 RepairClinic |
| 819 | | WD08X22476replaces WD08X10091 GASKET VENT | $16.00 Parts Dr |
| 850 |  | TRIM DOOR RH | - |
| 851 |  | TRIM DOOR LH | - |
| 901 |  | WD34X22258replaces WD34X11819 PANEL CONTROL ASM | $26.83 RepairClinic |
| 902 |  | SILICONE LIGHT PIPE | $39.30 Parts Dr |
| 903 |  | KIT- SVC UI FRONT LOGIC | - |
| 906 |  | BADGE GE ASM | $6.89 Part Advantage |
| 910 |  | BUTTON TREE | - |
