Model
GE GDF610PMJ0ES
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF610PMJ0ESDishwasher
6 diagrams129 parts
Parts Sections (6)

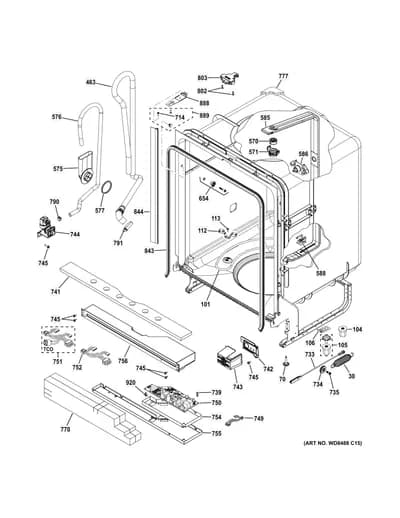

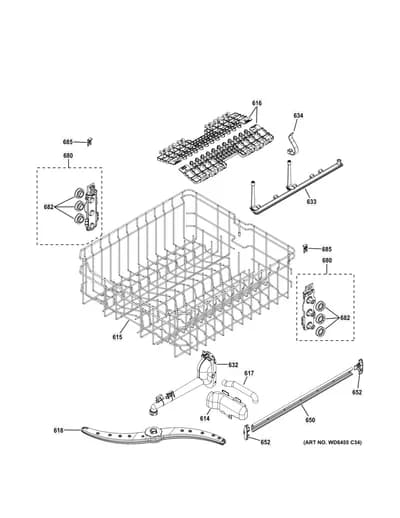

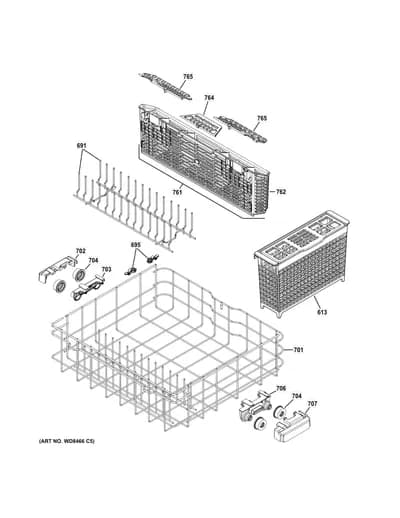

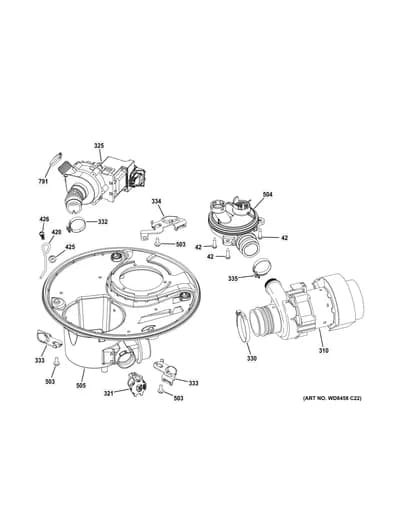

Diagram

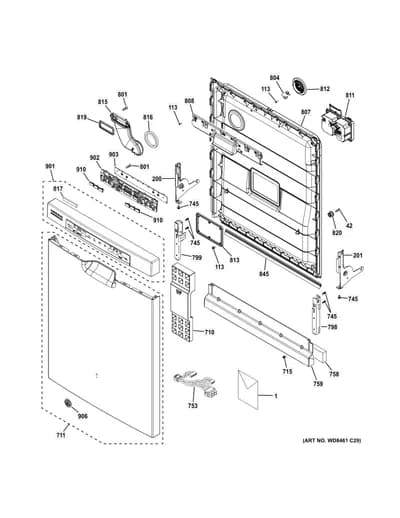

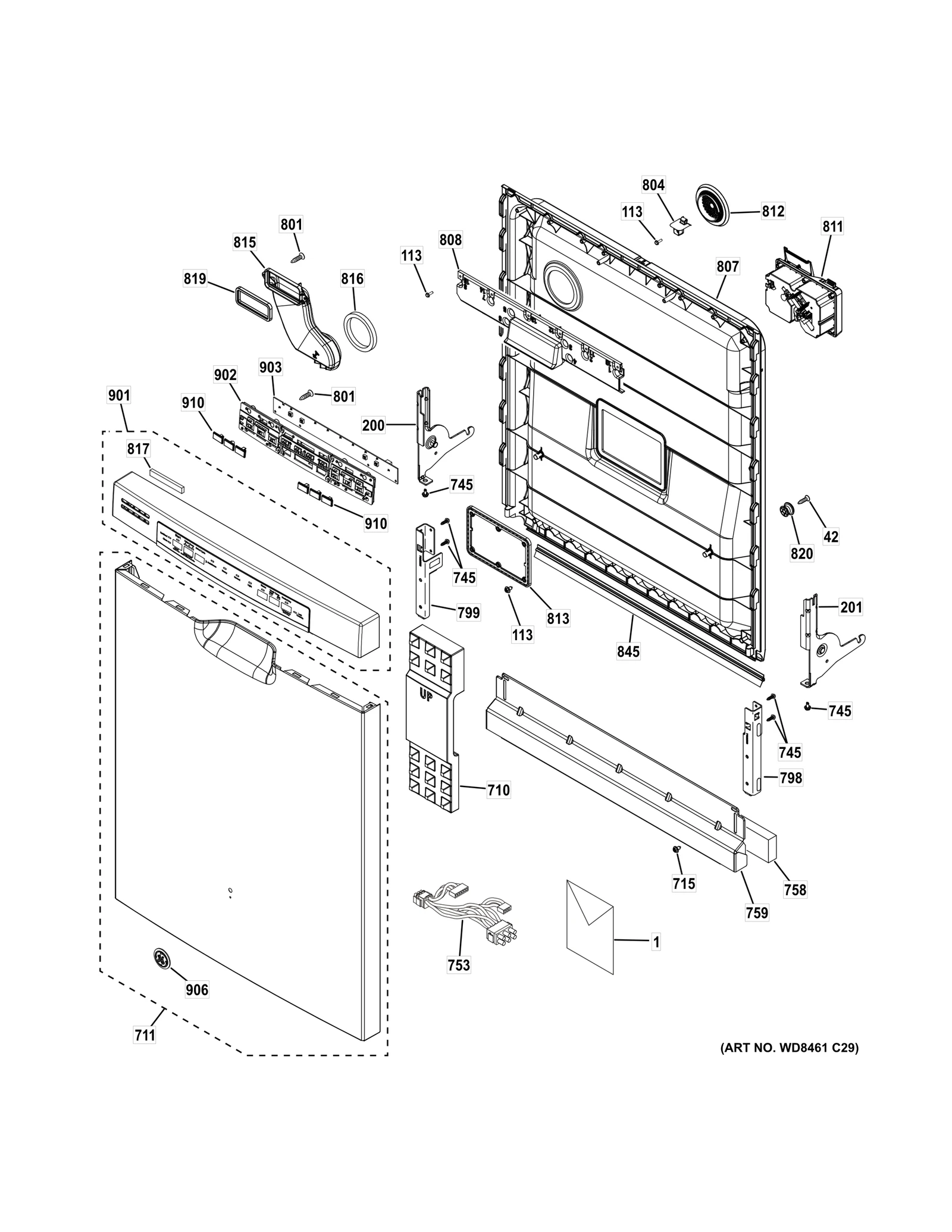

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 165D9739P026 INSERT MINI MANUAL | - |
| 1 | – | 49-55096 PM OWNERS MANUAL | - |
| 1 | – | 31-30743 PM MINI-MANUAL | - |
| 1 | – | 31-31555 PM INSTALL INSTRUCTIONS | - |
| 42 |  | WD02X22736replaces WD02X10110 SCREW #8-3/4 L HX HD SS | $5.09 Part Advantage |
| 113 |  | SCREW 8-16 HXW 1/2 SS | $7.26 Parts Dr |
| 200 |  | ARM HINGE ASM | $13.36 Part Advantage |
| 201 |  | ARM HINGE ASM RH | $13.36 Part Advantage |
| 710 |  | BLOCK FOAM DOOR | - |
| 711 | – | WD34X22622 DOOR OUTER PAINTED ES | - |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 745 |  | SCR 10-32 GX IHXW 9/16 S | $5.09 Part Advantage |
| 753 |  | HARNESS ASM DOOR | $22.28 Part Advantage |
| 758 |  | INSULATION TOE KICK | $8.76 Parts Dr |
| 759 |  | WD27X34579replaces WD27X10392 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 798 |  | BRACKET SUPPORT HINGE | $8.96 Parts Dr |
| 799 |  | BRACKET SUPPORT HINGE | $9.01 Parts Dr |
| 801 |  | SCR 6-20 GXB IHXW 3/8 NI | $9.59 ApplianceParts Pro |
| 804 |  | STRIKER LATCH | $5.09 Part Advantage |
| 807 |  | WD27X29398replaces WD31X10139 DOOR INNER PLASTIC | - |
| 808 |  | POCKET HANDLE | $26.70 Part Advantage |
| 811 |  | WD12X32798replaces WD12X22515 MODULE DETERGENT | $27.45 Part Advantage |
| 812 |  | VENT - GREY/ HYBRID | $15.23 Parts Dr |
| 813 |  | PLATE DETERGENT | $9.03 Parts Dr |
| 815 |  | DIVERTER AIR ASM | - |
| 816 |  | DOOR VENT SEAL | $15.62 Part Advantage |
| 817 |  | FOAM VENT INSERT | $6.29 RepairClinic |
| 819 |  | GASKET VENT | $16.00 Parts Dr |
| 820 |  | MOUNTING BASKET DOOR | - |
| 845 |  | GASKET BEACH PLASTIC | $17.75 Part Advantage |
| 901 |  | CONTROL PANEL ES | $87.20 Parts Dr |
| 902 |  | WD12X22778replaces WD12X21685 SILICONE LIGHT PIPE | $33.32 Parts Dr |
| 903 |  | WD21X31902Creplaces WD21X22236 UI BOARD | $153.12 PartSelect |
| 906 |  | BADGE GE ASM | $6.89 Part Advantage |
| 910 |  | BUTTON TREE PAINTED | - |
