Model
GE GDF630PGM6BB
Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF630PGM6BBDishwasher
7 diagrams122 parts
Parts Sections (7)
Diagram

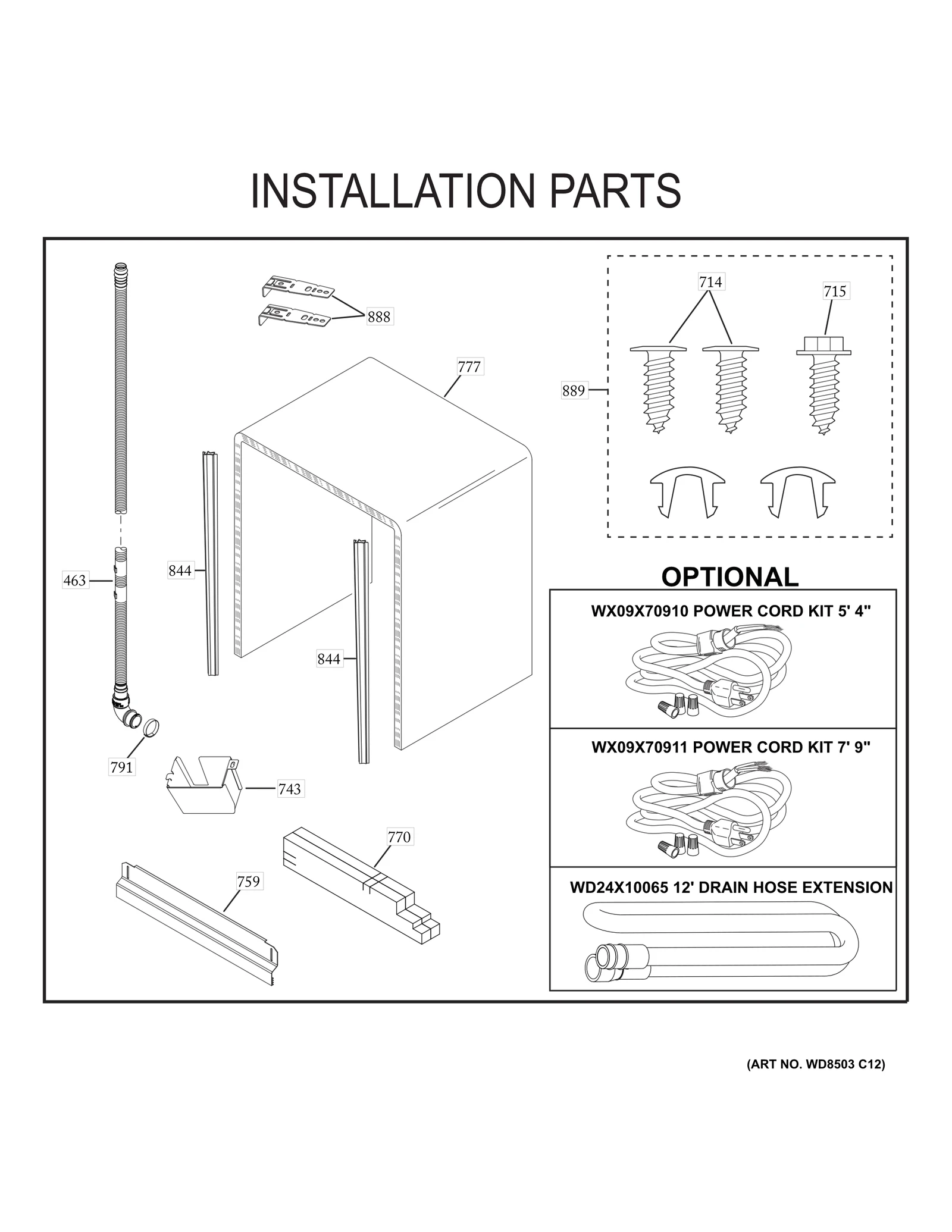

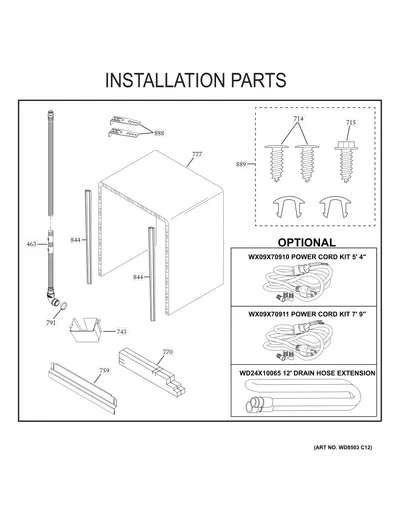

INSTALLATION PARTS
Parts in INSTALLATION PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 463 |  | WD24X27778replaces WD24X29378 HIGH LOOP DRAIN HOSE | $11.66 Part Advantage |
| 714 |  | SCREW 8-18 BA POR 5/8 SS | $7.18 Parts Dr |
| 715 |  | SCR 10-32 GX HXW 3/8 | $5.09 Part Advantage |
| 743 |  | COVER JUNCTION BOX | $19.39 Part Advantage |
| 759 |  | WD27X34579replaces WD27X26218 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 770 |  | INSULATIONBAG ASM | $12.29 RepairClinic |
| 777 |  | WD30X35299replaces WD01X21314 TUB INSULATION | $35.47 Part Advantage |
| 791 |  | CLAMP | $9.47 RepairClinic |
| 844 |  | BLACK TUB TRIM | $5.09 Part Advantage |
| 888 |  | COUNTERTOP BRACKET | $17.83 Part Advantage |
| 889 |  | COUNTERTOP BRACKET SCREWS ASSEMBLY | - |
