Model
GE GDF650SFJ4DS
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GDF650SFJ4DSDishwasher
6 diagrams141 parts

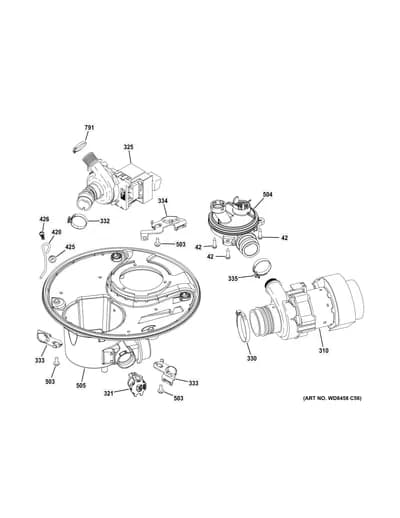

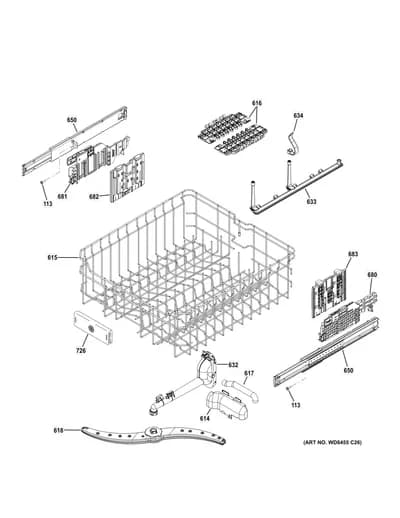

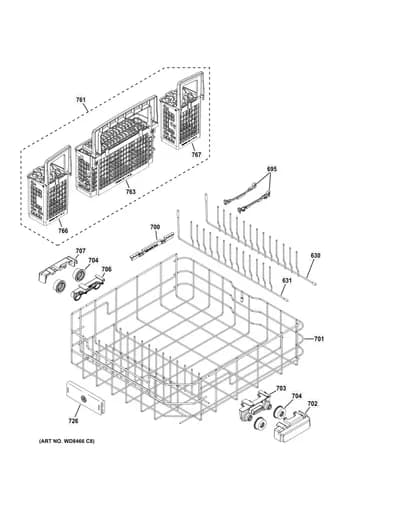

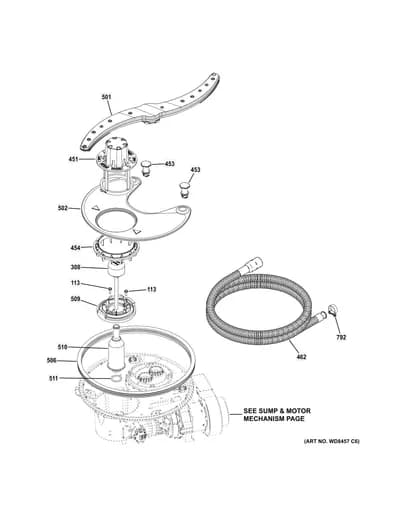

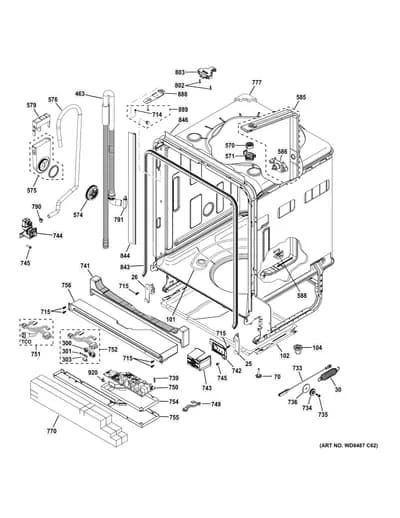

Parts Sections (6)
Diagram

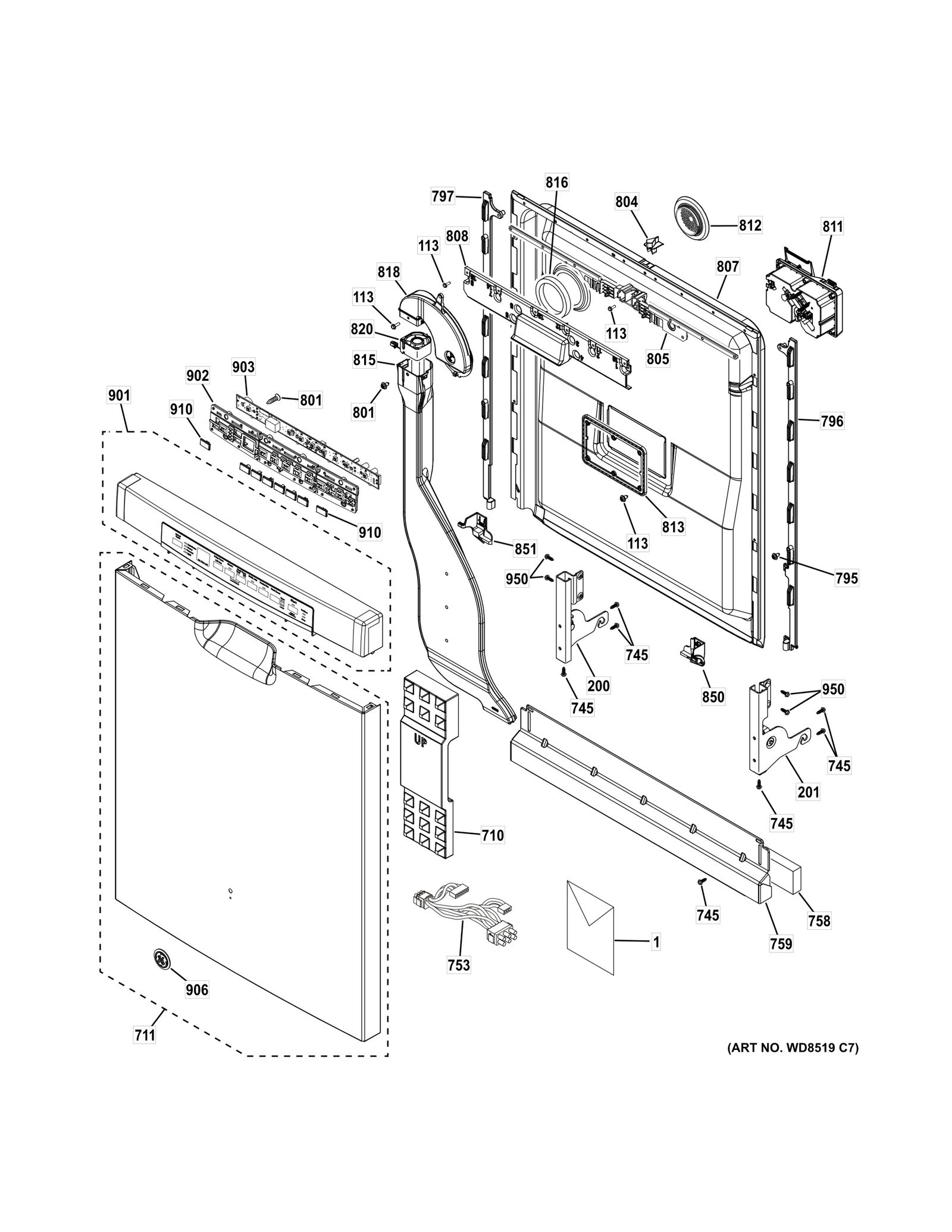

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-30792 PM MINI-MANUAL | - |
| 1 | – | 49-55102 PM OWNERS MANUAL | - |
| 1 | – | 31-31560 PM INSTALL INSTRUCTIONS | - |
| 1 | – | 165D9739P031 INSERT MINI MANUAL | - |
| 113 |  | SCREW 8-16 HXW 1/2 SS | $7.26 Parts Dr |
| 200 |  | ARM HINGE ASM LH | $16.00 Part Advantage |
| 201 |  | ARM HINGE ASM RH | $20.97 Part Advantage |
| 710 |  | BLOCK FOAM DOOR | $8.99 ApplianceParts Pro |
| 711 |  | WD27X24256replaces WD27X24243 PAINTED OUTER DOOR DS | - |
| 745 |  | SCR 10-32 GX IHXW 9/16 S | $5.09 Part Advantage |
| 753 |  | HARNESS ASM DOOR | $45.49 Part Advantage |
| 758 |  | INSULATION TOE KICK | $8.76 Parts Dr |
| 759 |  | WD27X34579replaces WD27X10392 TOE KICK PAINTED ASM | $13.43 Part Advantage |
| 795 |  | SCREW T15 8-16 PLASTITE 60-1 | $5.09 Part Advantage |
| 796 |  | ATTACH STRIP RH | - |
| 797 |  | WD01X34879replaces WD01X10634 ATTACH STRIP | $7.52 ApplianceParts Pro |
| 801 |  | SCR 6-20 GXB IHXW 3/8 NI | $9.59 ApplianceParts Pro |
| 804 |  | STRIKER LATCH | $5.09 Part Advantage |
| 805 |  | ATTACHMENT STRIP TOP | $117.51 PartSelect |
| 807 |  | WD31X29644replaces WD31X22821 DOOR INNER SS | $178.15 Parts Dr |
| 808 |  | POCKET HANDLE | $26.70 Part Advantage |
| 811 |  | WD12X32798replaces WD12X24058 DETERGENT DISP NO SENSOR | $27.45 Part Advantage |
| 812 |  | COVER VENT | $5.19 Part Advantage |
| 813 |  | PLATE DETERGENT | $7.22 Parts Dr |
| 815 |  | VENT CONDUIT ASM | $71.95 ApplianceParts Pro |
| 816 |  | WD08X10092replaces WD08X23666 DOOR VENT SEAL | $15.62 Part Advantage |
| 818 |  | TRANSITION PIECE ASM | $12.32 Part Advantage |
| 820 |  | VENT FAN ASM | $38.02 Part Advantage |
| 850 |  | WD01X26418replaces WD12X22835 TRIM DOOR RH | $13.97 Parts Dr |
| 851 |  | WD01X26419replaces WD12X22834 TRIM DOOR LH | $40.95 ApplianceParts Pro |
| 901 |  | CONTROL PANEL ASM DS | - |
| 902 |  | SILICONE LIGHT PIPE | $33.32 Parts Dr |
| 903 |  | WD21X31902Creplaces WD21X23709 CONFIGURED UI CONTROL | $153.12 PartSelect |
| 906 |  | GE BADGE BLACK STAINLESS | - |
| 910 | – | WD09X24244 BUTTON TREE | - |
| 950 | | SCR 10-32 PNT25 19/32 S | - |
