Model
GE GSS1800Z
Dishwasher
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS1800ZDishwasher
3 diagrams104 parts

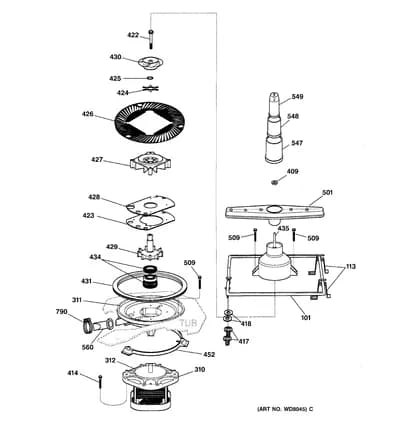

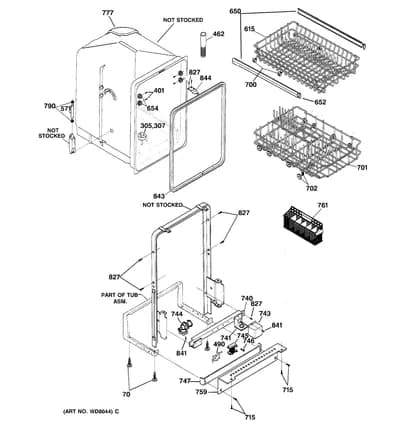

Parts Sections (3)
Diagram

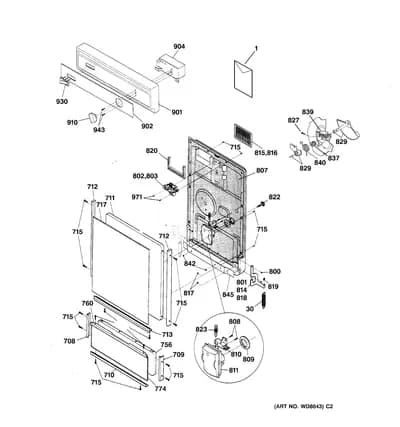

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-30114 PM INSTRUCTION INSTALL | - |
| 1 | – | 31-3093 PM MINI MANUAL | - |
| 1 | – | 49-5830 PM MANUAL USE & CARE | - |
| 30 |  | WD02X10005NLA SPRING DOOR | Discontinued |
| 708 | | TRIM-ACCESS PNL CHROME L | - |
| 709 | | TRIM-ACCESS PNL CHROME R | - |
| 710 | | TRIM-ACCESS CHROME BTM | - |
| 711 | – | WD31X10002 PANEL-DOOR GALV | - |
| 712 | – | WD34X10020 TRIM-DOOR CHROME RH&LH | - |
| 713 | | TRIM-DOOR CHROME BTM | - |
| 715 | – | WD02X10011 SCREW #8A X .375 | - |
| 717 | | INSERT-DOOR& ACC AD/BK | - |
| 717 | – | WD27X10004 INSERT-DOOR WHT/CLR | - |
| 756 | | WD31X10003NLA PANEL-ACCESS GALV | Discontinued |
| 760 | | TRIM-ACCESS TOP CHROME | - |
| 774 | | INSERT-ACCESS WHT/CLR | - |
| 800 | – | WD02X10004 SCREW ARM ASM | - |
| 801 | | ARM ASM RH & LH | - |
| 802 | | WD13X10001NLA LATCH ASSY | Discontinued |
| 803 | | WD02X10021NLA HANDLE-LATCH BLK | Discontinued |
| 807 | – | WD31X10001 DOOR-INNER ASSY | - |
| 808 | – | WD02X10010 SCREW BI-METAL | - |
| 809 | – | WD01X10005 GROMMET-RINSE AGENT | - |
| 810 | | BI-METAL-RINSE DISP | - |
| 811 | | BODY-DISPENSER | - |
| 814 | – | WD14X10003 COVER ARM | - |
| 815 | – | WD12X10004 COVER-VENT | - |
| 816 | – | WD02X10012 SCREW VENT COVER | - |
| 817 | – | WD02X10020 NUT-ARM ASSY | - |
| 818 | | PIN ARM | - |
| 819 | – | WD02X10006 PAD SPRING | - |
| 820 | – | WD08X10002 GASKET VENT COVER | - |
| 822 | – | WD01X10006 PULG-FILL | - |
| 823 | – | WD01X10007 PLUNGER | - |
| 827 | – | WD02X10008 SCREW PLASK 10-10X9/16 | - |
| 829 | | DISPENSER ASM | - |
| 837 | | SPRING CAM COMP | - |
| 839 | – | WD21X10009 BI- METAL ASSY | - |
| 840 | – | WD03X10002 SPRING CAM | - |
| 842 | – | WD01X10004 SPEEDNUT-BAFFLE | - |
| 845 | | BAFFLE SEAL | - |
| 901 | | PANEL-CONTROL BLACK | - |
| 902 | | INSERT-CONTROL PANEL BLK | - |
| 904 | | TIMER | - |
| 910 | | KNOB TIMER BLK | - |
| 930 | | SWITCH-ROCKER | - |
| 943 | – | WD02X10007 SCREW TIMER | - |
| 971 | – | WD02X10009 SCREW LATCH MTG | - |
