Model
GE GSS1800Z1
Dishwasher
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS1800Z1Dishwasher
3 diagrams102 parts
Parts Sections (3)
Diagram

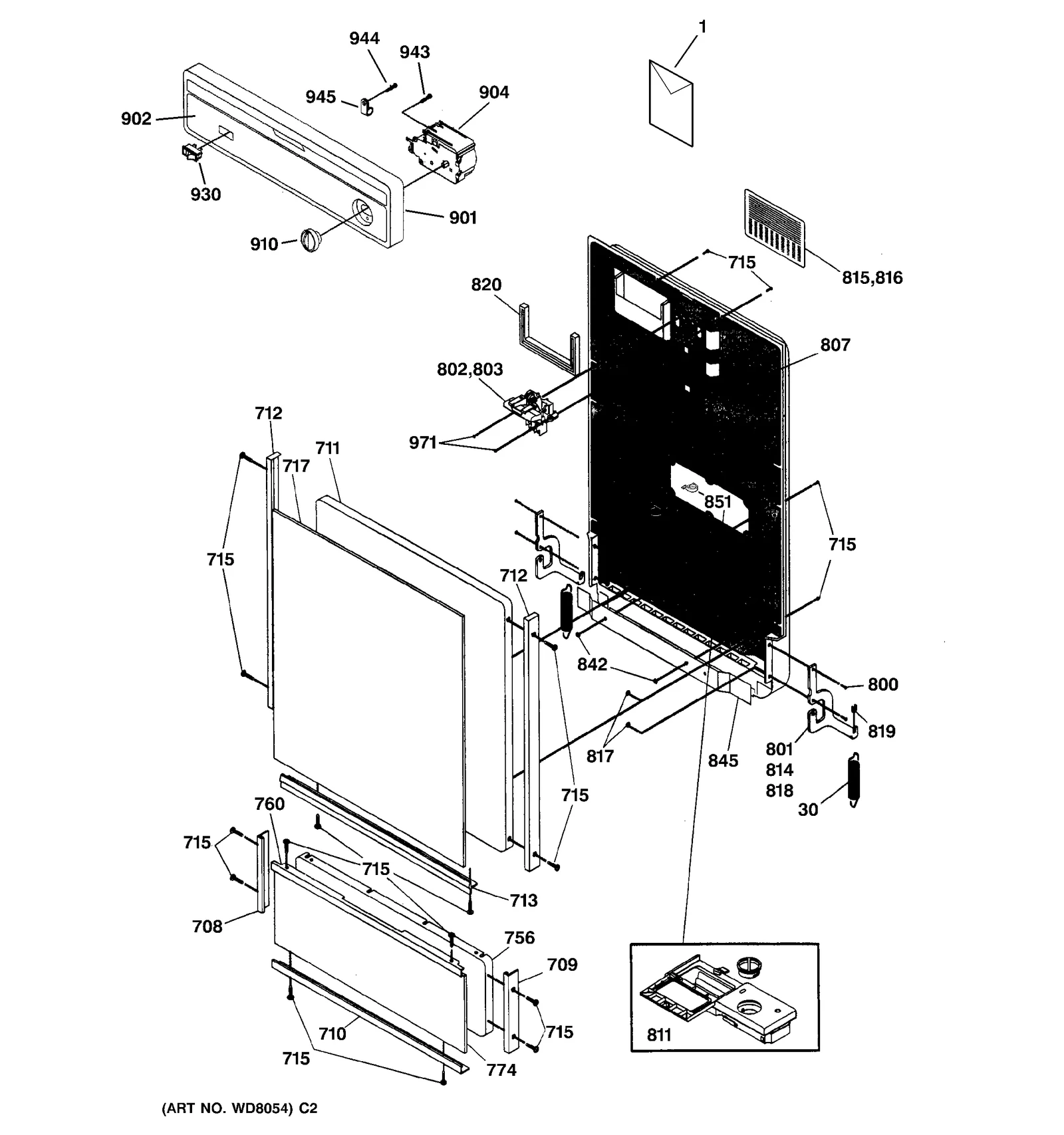

ESCUTCHEON & DOOR ASSEMBLY
Parts in ESCUTCHEON & DOOR ASSEMBLY
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-30114 PM INSTRUCTION INSTALL | - |
| 1 | – | 31-30306 PM MINI MANUAL | - |
| 1 | – | 49-5863 PM MANUAL USE & CARE | - |
| 30 |  | WD02X10005NLA SPRING DOOR | Discontinued |
| 708 | | TRIM-ACCESS PNL CHROME L | - |
| 709 | | TRIM-ACCESS PNL CHROME R | - |
| 710 | | TRIM-ACCESS CHROME BTM | - |
| 711 | – | WD31X10002 PANEL-DOOR GALV | - |
| 712 | – | WD02X10050 SCREW-DOOR TRIM 8-18 | - |
| 712 | – | WD34X10020 TRIM-DOOR CHROME RH&LH | - |
| 713 | | TRIM-DOOR CHROME BTM | - |
| 715 | – | WD02X10011 SCREW #8A X .375 | - |
| 715 | – | WD02X10049 SCREW SS TRUSS .438 | - |
| 717 | | INSERT-DOOR& ACC AD/BK | - |
| 717 | – | WD27X10004 INSERT-DOOR WHT/CLR | - |
| 756 | | WD31X10003NLA PANEL-ACCESS GALV | Discontinued |
| 760 | | TRIM-ACCESS TOP CHROME | - |
| 774 | | INSERT-ACCESS WHT/CLR | - |
| 800 | – | WD02X10004 SCREW ARM ASM | - |
| 801 | | ARM ASM RH & LH | - |
| 802 | | WD13X10005NLA LATCH ASSY | Discontinued |
| 803 | | WD02X10048NLA HANDLE-LATCH BLK | Discontinued |
| 807 | – | WD31X10015 DOOR-INNER ASSY | - |
| 811 | – | WD02X10047 SCREW #7 - DISP. ASSY | - |
| 811 | | WD12X10038NLA DISPENSER-DET/RINSE AID | Discontinued |
| 814 | – | WD14X10003 COVER ARM | - |
| 815 | – | WD12X10004 COVER-VENT | - |
| 816 | – | WD02X10012 SCREW VENT COVER | - |
| 817 | | NUT, 10-24 | - |
| 818 | | PIN ARM | - |
| 819 | – | WD02X10006 PAD SPRING | - |
| 820 | – | WD08X10002 GASKET VENT COVER | - |
| 842 | – | WD01X10004 SPEEDNUT-BAFFLE | - |
| 845 | | BAFFLE SEAL | - |
| 851 | – | WD01X10064 CLAMP-WIRE, DRIP LOOP | - |
| 901 |  | PANEL-CONTROL BACK | $155.72 PartSelect |
| 902 | | INSERT-CONTROL PANEL BLK | - |
| 904 | | TIMER | - |
| 910 | | KNOB TIMER BLK | - |
| 930 | | SWITCH-ROCKER | - |
| 943 | – | WD02X10045 SCREW | - |
| 944 | – | WD02X10044 SCREW, PAN HD #8 X.438 | - |
| 945 | – | WD01X10063 CLAMP | - |
| 971 | – | WD02X10009 SCREW LATCH MTG | - |
