Model
GE GSS203W-02
Dishwasher
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS203W-02Dishwasher
2 diagrams153 parts
Parts Sections (2)

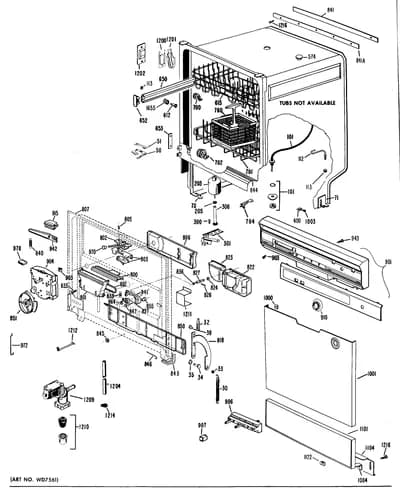

Diagram
Parts List
Parts in Parts List
116 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 30 | – | WD01X1154 SPRING | - |
| 32 | – | WD01X1144 HINGE GUIDE | - |
| 33 | – | WD01X0940 GROMMET | - |
| 34 | – | WD01X0893 WD1X893D | - |
| 35 | – | WD12X0192 RETAINER | - |
| 39 |  | WD2X248replaces WD02X0248 SCR 10-24X3/8 TT HEX | - |
| 50 | – | WD13X0053 WD35X156 | - |
| 51 | – | WD13X0048 KEEPER FASTENER | - |
| 70 | – | WD01X1130 SCREW LEVELLING 5/16-24 | - |
| 71 | – | WD03X0757 BRACKET FOOT | - |
| 101 |  | WD3X723replaces WD03X0723 HEATER WASHER | - |
| 101 | – | WD03X0724 HEATER WASHER | - |
| 101 | – | WD03X0725 NUT HEATER | - |
| 101 | – | WD05X0059 CALROD | - |
| 111 | – | WD01X1223 SCREW LEVELLING 5/16-24 | - |
| 112 | – | WD03X0762 STABILIZER SCR - WASHER | - |
| 113 | – | WD03X0475 NUT TENZ | - |
| 203 | – | WD12X0178 FLOAT | - |
| 205 | – | WD08X0155 GASKET | - |
| 300 | – | WD03X0591 SCREW SEALING | - |
| 301 | | WD21X0349NLA SWITCH FLOOD | Discontinued |
| 306 | | WD18X0167NLA STANDPIPE | Discontinued |
| 400 | – | WD01X1062 BRACKET | - |
| 556 | – | WD24X0205 DRAIN HOSE | - |
| 615 | – | WD28X0217 PS RACK PACK | - |
| 701 | – | WD28X0230 PS RACK PACK | - |
| 702 | | WD12X258replaces WD12X0258 LWR RK ROLLR | $21.32 ApplianceParts Pro |
| 704 | – | WD28X0239 L RACK STOP | - |
| 760 |  | WD28X265replaces WD12X0219 WD28X0318 | $57.43 Part Advantage |
| 800 | – | WD12X0198 LID UPR | - |
| 801 | – | WD12X0197 VENT UPR | - |
| 802 | | WD13X62replaces WD13X0062 DOOR LATCH | - |
| 803 | – | WD01X1146 INTERLOCK SWITCH SCREW | - |
| 803 | – | WD01X5468 SWITCH GUARD | - |
| 803 | | WD6X183replaces WD06X0183 SWITCH INTERLOCK | - |
| 805 | – | WD01X1228 WASHER LOCK | - |
| 805 | – | WZ02X0471 SCR 10-32X3/8 MCH OVR SS | - |
| 806 | – | WD30X0095 VENT COVER | - |
| 807 | – | WD31X0292 DOOR FINISHED ASM | - |
| 818 | – | WD14X0071 HINGE ARM | - |
| 822 | – | WD03X0698 SCREW | - |
| 822 | – | WD16X0253 SEEPRICELIST | - |
| 823 | – | WD16X0252 CUP DET | - |
| 824 | – | WD08X5101 DETERGENT SHAFT GASKET | - |
| 826 | – | WD01X1128 WD1X1128D | - |
| 827 | – | WD16X0283 DETERGENT CUP SHAFT | - |
| 832 | – | WD08X0180 UP VENT GSKT | - |
| 833 |  | WD2X295replaces WD02X0295 #10X1\2 PH SMS | $7.18 RepairClinic |
| 836 | | WD1X781Dreplaces WD01X0781 SHAFT "O" RING | - |
| 837 | – | WD12X0027 DETERGENT CAM LEVER | - |
| 839 | | WD2X266replaces WD02X0266 DETERGENT SPRING | - |
| 840 | – | WD12X0200 SPRING TRIP | - |
| 841 | – | WD01X0863 GSKT RETAINR | - |
| 841 | – | WD01X0864 GSKT RETAINR | - |
| 843 | – | WD08X0215 DOOR GASKET | - |
| 844 | | WD08X0199NLA DOOR GASKET WITH CLIPS | Discontinued |
| 844 | | WD08X0201NLA TUB FLANGE GASKET | Discontinued |
| 845 | – | WD01X0981 NUT SELF THREADING | - |
| 846 | – | WD01X1312 WIRE GASKET | - |
| 847 | – | WD03X0754 ACTIVATOR PIVOT SCREW | - |
| 850 | – | WD12X0176 GUARD DR | - |
| 851 | – | WD16X0279 CAM | - |
| 855 | – | WD12X0117 SPACER PIVOT DET | - |
| 864 | | WD1X1030replaces WD01X1030 COMPRESSION RING | - |
| 901 | – | WD34X0550 ESCUTCHEON & INSERT ASM | - |
| 903 | – | WD02X0279 FASTENER TIMER | - |
| 903 | – | WZ04X0309 WZ4X309D | - |
| 904 | – | WD01X1180 INS TRI TERM | - |
| 904 | – | WD03X0441 SCREW 10-32X3/8 PHR | - |
| 904 | – | WD21X0504 TIMER | - |
| 906 | – | WD21X0471 PUSHBUTTON SWITCH | - |
| 907 | – | WD09X0207 PUSHBUTTON | - |
| 909 | – | WD03X0692 SCREW, TIMER | - |
| 910 | | WD09X0211NLA KNOB TIMER | Discontinued |
| 941 | – | WD12X0311 LEVER OVER-TRAVEL DET | - |
| 942 | – | WD12X0199 LEVER TRIP | - |
| 943 |  | WZ5X219Dreplaces WZ05X0219 SCREW | $32.47 ApplianceParts Pro |
| 970 | | WD09X5162NLA KNOB LATCH HANDLE | Discontinued |
| 970 | | SCREW LATCH KNOB | Discontinued |
| 972 | – | WD01X1299 WD1X1323 | - |
| 978 | – | WD01X1189 INSULATOR | - |
| 1000 | – | WD02X0303 FASTENER | - |
| 1000 |  | WZ4X241Dreplaces WZ04X0241 SCR 8-15 AB TR 1/2 SS | $14.87 Part Advantage |
| 1001 | – | WD02X0304 WZ4X216D | - |
| 1001 | – | WD27X0429 FRONT PANEL | - |
| 1001 | – | WD27X0430 FRONT PANEL | - |
| 1001 | – | WD27X0431 FRONT PANEL | - |
| 1001 | – | WD27X0432 FRONT PANEL | - |
| 1001 | – | WD27X0433 FRONT PANEL | - |
| 1004 | – | WD35X0097 WD1X1381 | - |
| 1090 | – | WZ06X0108 SCREW 10-32 X 1/2 HEX | - |
| 1101 | – | WD27X0434 PS PANEL ACCESS HARV WHE | - |
| 1101 | – | WD27X0435 ACCESS PANEL | - |
| 1101 | – | WD27X0436 ACCESS PANEL | - |
| 1101 | – | WD27X0437 ACCESS PANEL | - |
| 1101 | – | WD27X0438 ACCESS PANEL | - |
| 1101 | | WZ05X0222NLA SCR 10-32 T HEX 7/16 S | Discontinued |
| 1104 | – | WD27X0486 TOP KICK | - |
| 1200 | – | WD01X1105 BRACKET | - |
| 1201 | – | WD03X0273 WASHER | - |
| 1201 | – | WD12X0018 FILL FUNNEL | - |
| 1202 | – | WD03X0672 BAFFLE FILL FUNNEL | - |
| 1204 | – | WD24X0158 HOSE,INLET | - |
| 1209 | – | WD15X0071 COVER | - |
| 1209 |  | WD15X93replaces WD15X0080 WD15X0093 | $29.68 Part Advantage |
| 1210 | – | WD10X0326 FIT INLET | - |
| 1210 | – | WD10X0327 WATER VALVE SCREEN | - |
| 1211 | – | WD01X1320 BRACKET J-BOX | - |
| 1211 | – | WD01X1370 BRACKET THERMO | - |
| 1211 | – | WZ05X0235 AP8911213P65 | - |
| 1212 | – | WD01X1102 RETAINER HARNESS | - |
| 1214 |  | WH1X2036replaces WH01X2036 CLAMP HOSE | $9.77 Part Advantage |
| 9999 | – | 31-3426 INSTRUCTION INSTALL | - |
| 9999 | – | 31-3427 INSTRUCTION INSTALL | - |
| 9999 | – | 49-5266-1 BOOK USE - CARE | - |
| 9999 | – | 49-5275 INSTRUCTION OPER | - |
