Model
GE GSS203W-07
Dishwasher
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS203W-07Dishwasher
2 diagrams136 parts
Parts Sections (2)
Diagram

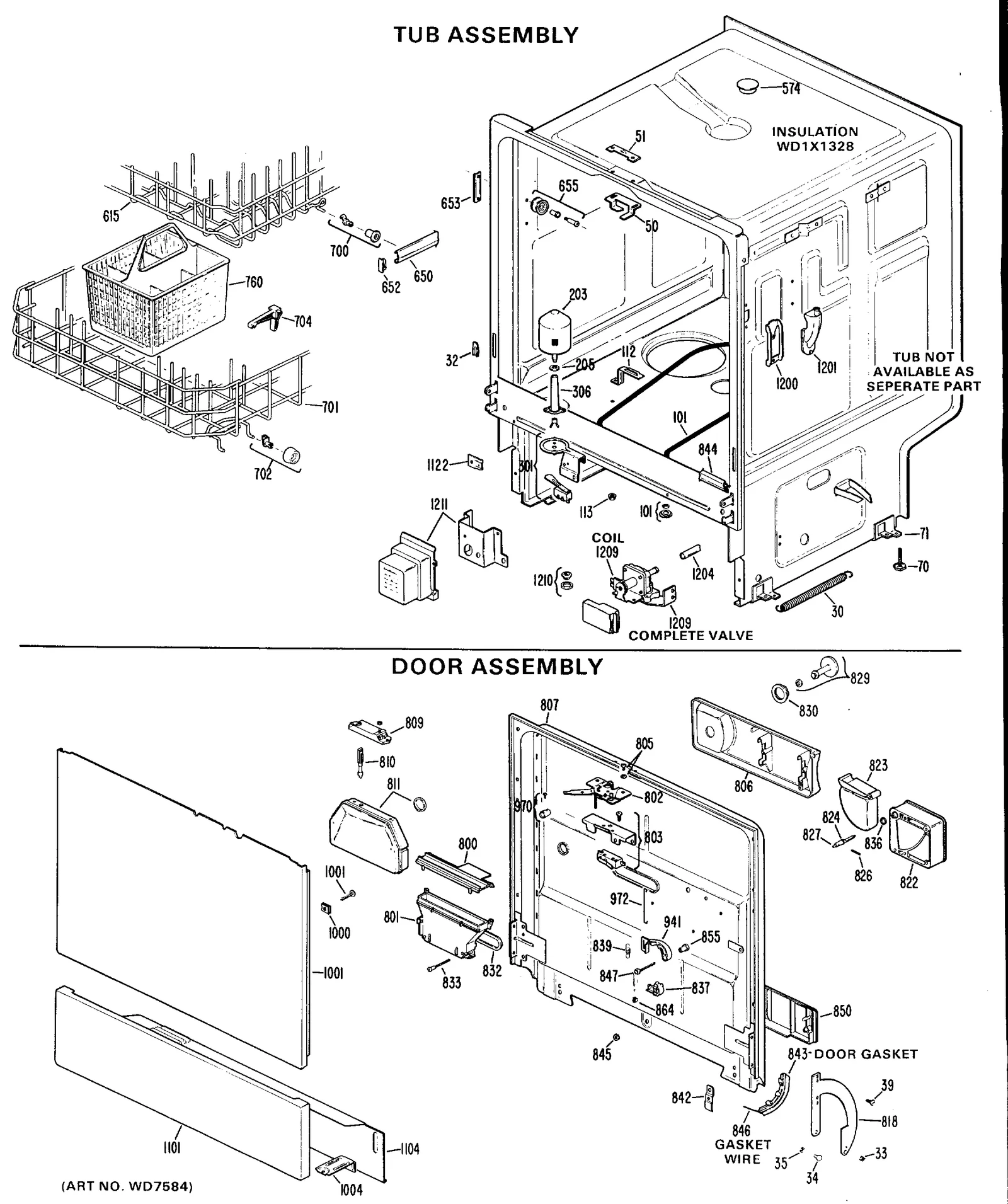

TUB ASSEMBLY
Parts in TUB ASSEMBLY
85 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 30 | – | WD01X1154 SPRING | - |
| 32 | – | WD01X1144 HINGE GUIDE | - |
| 33 | – | WD01X0940 GROMMET | - |
| 34 | – | WD01X0893 WD1X893D | - |
| 35 | – | WD12X0192 RETAINER | - |
| 39 |  | WD2X248replaces WD02X0248 SCR 10-24X3/8 TT HEX | - |
| 50 | – | WD13X0053 WD35X156 | - |
| 51 | – | WD13X0048 KEEPER FASTENER | - |
| 70 | – | WD01X1130 SCREW LEVELLING 5/16-24 | - |
| 71 | – | WD03X0757 BRACKET FOOT | - |
| 101 |  | WD3X723replaces WD03X0723 HEATER WASHER | - |
| 101 | – | WD03X0724 HEATER WASHER | - |
| 101 | – | WD03X0725 NUT HEATER | - |
| 101 | – | WD05X0059 CALROD | - |
| 112 | – | WD03X0762 STABILIZER SCR - WASHER | - |
| 113 | – | WZ07X0031 NUT | - |
| 203 | – | WD12X0178 FLOAT | - |
| 205 | – | WD08X0155 GASKET | - |
| 301 | | FLOOD SWITCH BRKT ASM | - |
| 306 | | WD18X0167NLA STANDPIPE | Discontinued |
| 574 | – | WD01X1245 PLUG POWER SHOWER | - |
| 615 | – | WD28X0217 PS RACK PACK | - |
| 701 | – | WD28X0230 PS RACK PACK | - |
| 702 | | WD12X258replaces WD12X0258 LWR RK ROLLR | $21.32 ApplianceParts Pro |
| 704 | – | WD28X0239 L RACK STOP | - |
| 760 |  | WD28X265replaces WD28X0245 SILVERWARE BASKET | $57.43 Part Advantage |
| 800 | – | WD12X0198 LID UPR | - |
| 801 | – | WD12X0197 VENT UPR | - |
| 802 | | WD13X62replaces WD13X0062 DOOR LATCH | - |
| 803 | – | WD01X0183 INTERLOCK SWITCH | - |
| 803 | – | WD01X1146 INTERLOCK SWITCH SCREW | - |
| 803 | – | WD01X5468 SWITCH GUARD | - |
| 805 | – | WD01X1228 WASHER LOCK | - |
| 805 | – | WZ02X0471 SCR 10-32X3/8 MCH OVR SS | - |
| 806 | – | WD30X0095 VENT COVER | - |
| 807 | – | WD31X0293 DOOR FINISHED ASM | - |
| 818 | – | WD14X0071 HINGE ARM | - |
| 822 | – | WD03X0698 SCREW | - |
| 823 | – | WD16X0252 CUP DET | - |
| 824 | – | WD08X5101 DETERGENT SHAFT GASKET | - |
| 826 | – | WD01X1128 WD1X1128D | - |
| 827 | – | WD16X0283 DETERGENT CUP SHAFT | - |
| 832 | – | WD08X0180 UP VENT GSKT | - |
| 833 |  | WD2X295replaces WD02X0295 #10X1\2 PH SMS | $7.18 RepairClinic |
| 836 | | WD1X781Dreplaces WD01X0781 SHAFT "O" RING | - |
| 837 | – | WD12X0027 DETERGENT CAM LEVER | - |
| 839 | | WD2X266replaces WD02X0266 DETERGENT SPRING | - |
| 842 | – | WD03X0674 CLAMP GASKET | - |
| 843 | – | WD08X0221 DOOR GASKET | - |
| 844 | | WD08X0201NLA TUB FLANGE GASKET | Discontinued |
| 845 | – | WD01X0981 NUT SELF THREADING | - |
| 846 | – | WD01X1312 WIRE GASKET | - |
| 847 | – | WD03X0754 ACTIVATOR PIVOT SCREW | - |
| 850 | – | WD12X0176 GUARD DR | - |
| 855 | – | WD12X0117 SPACER PIVOT DET | - |
| 864 | | WD1X1030replaces WD01X1030 COMPRESSION RING | - |
| 941 | – | WD12X0311 LEVER OVER-TRAVEL DET | - |
| 970 | | WD09X5162NLA KNOB LATCH HANDLE | Discontinued |
| 970 | | SCREW LATCH KNOB | Discontinued |
| 972 | – | WD01X1299 WD1X1323 | - |
| 1000 | – | WD02X0303 FASTENER | - |
| 1001 | – | WD02X0204 PANEL MOUNTING SCREW | - |
| 1001 | – | WD27X0429 FRONT PANEL | - |
| 1001 | – | WD27X0430 FRONT PANEL | - |
| 1001 | – | WD27X0431 FRONT PANEL | - |
| 1001 | – | WD27X0432 FRONT PANEL | - |
| 1001 | – | WD27X0433 FRONT PANEL | - |
| 1004 | – | WD35X0097 WD1X1381 | - |
| 1101 | – | WD27X0434 PS PANEL ACCESS HARV WHE | - |
| 1101 | – | WD27X0435 ACCESS PANEL | - |
| 1101 | – | WD27X0436 ACCESS PANEL | - |
| 1101 | – | WD27X0437 ACCESS PANEL | - |
| 1101 | – | WD27X0438 ACCESS PANEL | - |
| 1101 | | WZ05X0222NLA SCR 10-32 T HEX 7/16 S | Discontinued |
| 1104 | – | WD27X0486 TOP KICK | - |
| 1200 | – | WD01X1105 BRACKET | - |
| 1201 | – | WD12X0018 FILL FUNNEL | - |
| 1209 |  | WD15X93replaces WD15X5093 WATER VALVE ASM | $29.68 Part Advantage |
| 1209 | | WD15X93replaces WD21X0536 SOLENOID ASM | $29.68 Part Advantage |
| 1210 | – | WD10X0327 WATER VALVE SCREEN | - |
| 1211 | – | WD01X1317 JUNCTION BOX COVER | - |
| 1211 | – | WD01X1320 BRACKET J-BOX | - |
| 1211 | – | WZ05X0235 AP8911213P65 | - |
| 1212 | – | WD01X1102 RETAINER HARNESS | - |
| 1214 |  | WH1X2036replaces WH01X2036 CLAMP HOSE | $9.77 Part Advantage |
