Model
GE GSS20DBTECC
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS20DBTECCRefrigerator
7 diagrams159 parts
Parts Sections (7)
Diagram

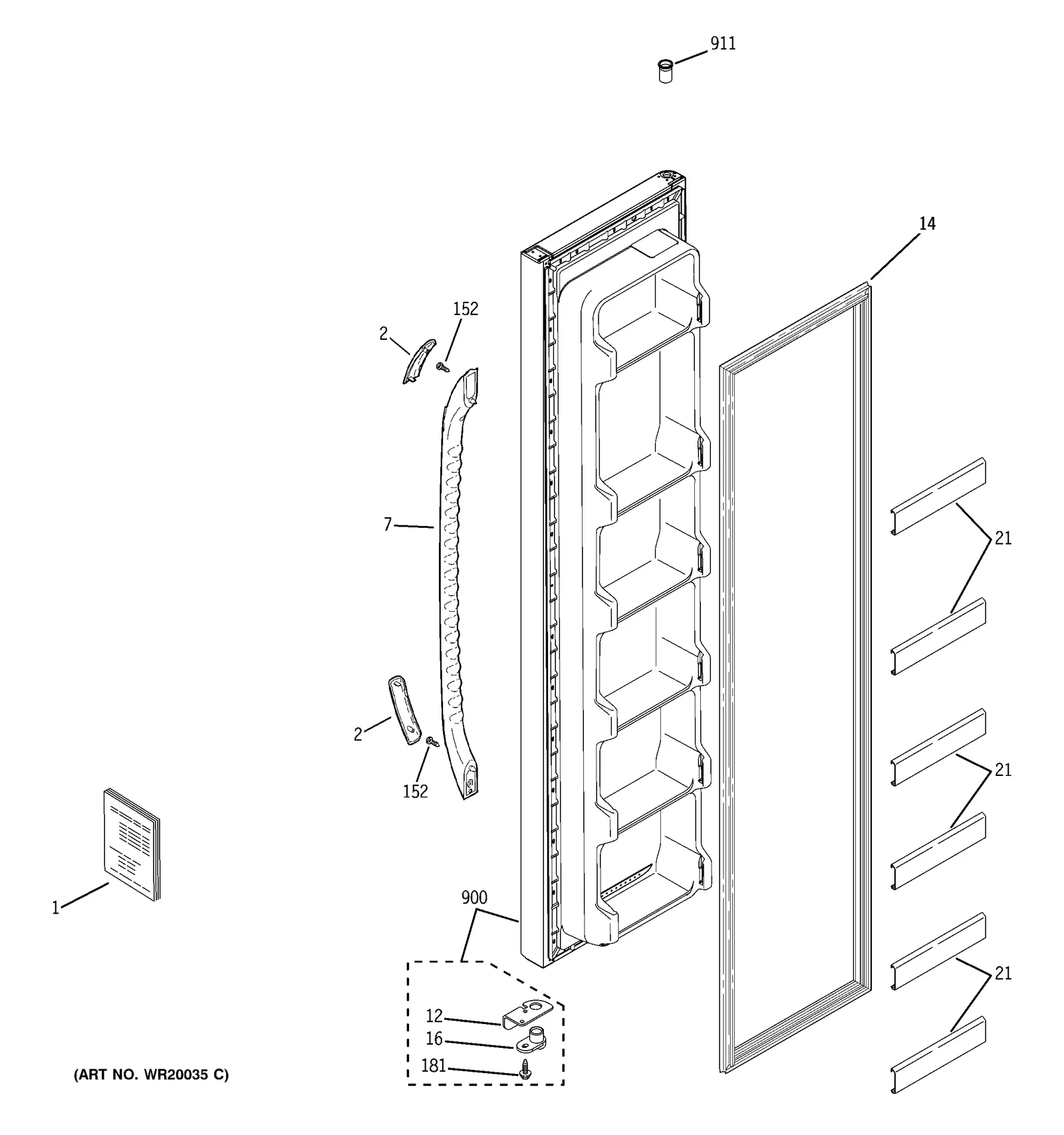

FREEZER DOOR
Parts in FREEZER DOOR
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-61716 No Item Description | - |
| 1 | – | 49-60458 PM GUIDE OWNERS | - |
| 2 |  | CAP HANDLE BQ | $6.71 RepairClinic |
| 7 | | HANDLE SXS DOOR BQ | - |
| 12 | | PLATE DOOR STOP FF | - |
| 14 |  | WR24X10302replaces WR24X10131 GASKET DOOR FZ | $86.95 ApplianceParts Pro |
| 16 | | WR02X11478NLA CAM & THIMBLE FZ | Discontinued |
| 21 |  | WR17X12069replaces WR17X12066 FRONT DOOR SHELF FZ | - |
| 152 | | WR01X10596NLA SCR 8-18 AB FLTR 5/8 S | Discontinued |
| 181 | | WR01X10655NLA SCR 10-32 F HXW 3/4 S | Discontinued |
| 900 | | DOOR ASM FOAM BQ | - |
| 911 | | THIMBLE TOP CLOSED | $6.72 ApplianceParts Pro |
