Model
GE GSS20GEWT BB
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS20GEWT BBRefrigerator
8 diagrams224 parts
Parts Sections (8)
Diagram

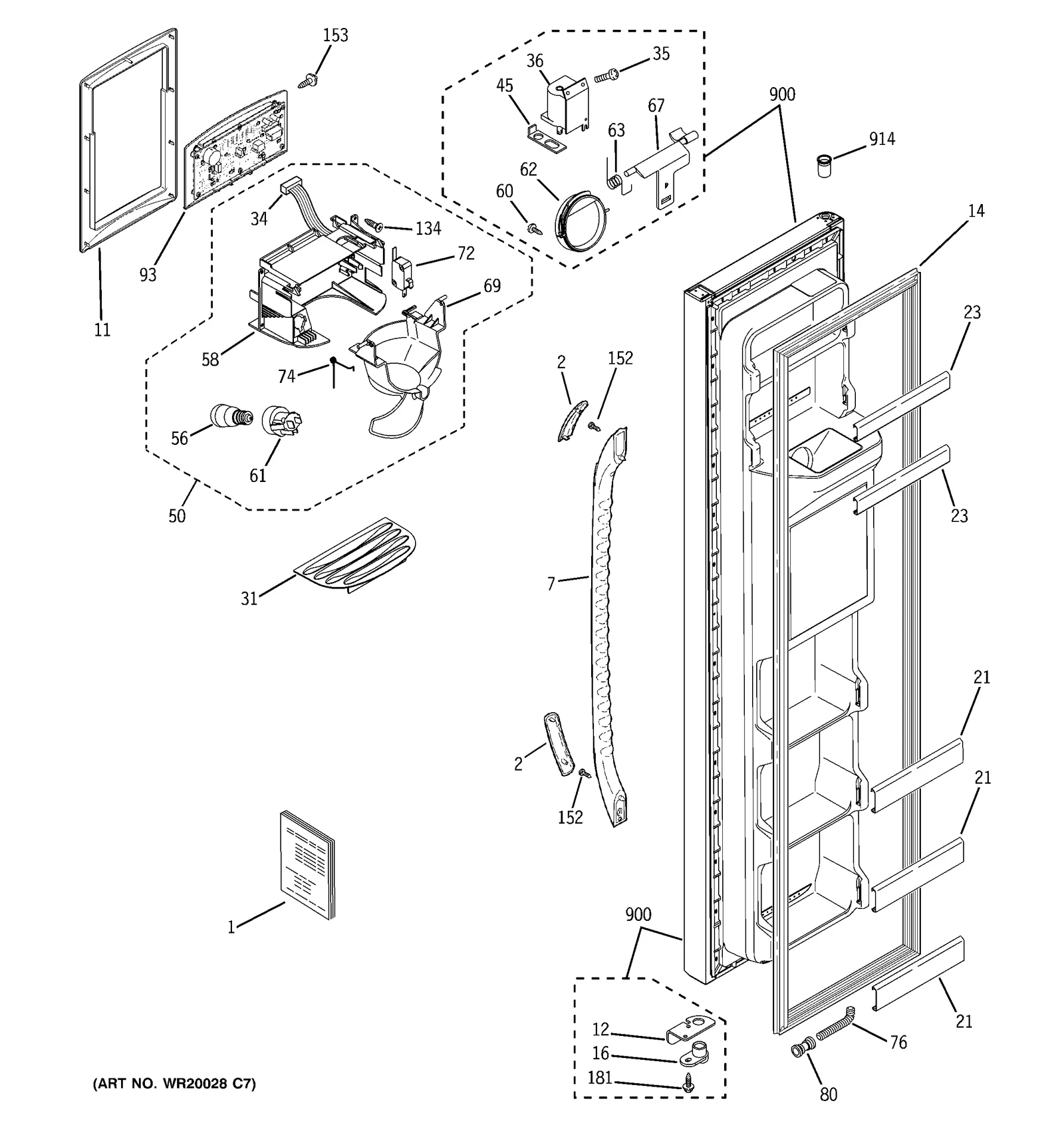

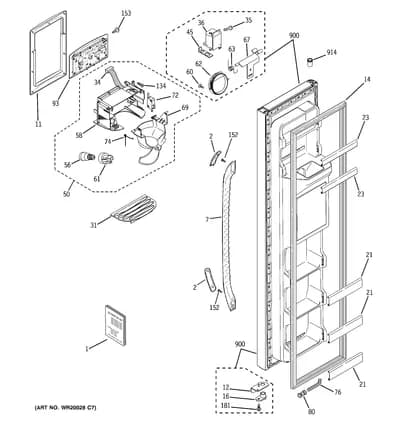

FREEZER DOOR
Parts in FREEZER DOOR
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51790 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60514 PM GUIDE OWNERS | - |
| 2 |  | CAP HANDLE BB | - |
| 7 | | HANDLE SXS DOOR BB | - |
| 11 |  | WR38X23216replaces WR38X10348 TRIM RECESS | $28.03 Parts Dr |
| 12 |  | PLATE DOOR STOP FZ | $7.69 RepairClinic |
| 14 |  | WR24X23195replaces WR24X10303 GASKET DOOR FZ | $69.79 Parts Dr |
| 16 | | WR02X11478NLA CAM & THIMBLE FZ | Discontinued |
| 21 |  | FRONT DOOR SHELF FZ | - |
| 23 | | FRONT DOOR SHELF FZ | - |
| 31 | | WR17X10745NLA GRILL RECESS BK | Discontinued |
| 34 | | HARNESS RECESS DISP | - |
| 35 |  | SCR 8-10 PL PNP 1/2 S | $9.03 Parts Dr |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 50 | | HOUSING RECESS ASM DISP | - |
| 56 |  | WR01X37886replaces WR02X12208 LIGHT DISPENSER | $13.61 Part Advantage |
| 58 |  | WR17X11170replaces WR17X12152 HOUSING SHIELD DISP | $13.52 Part Advantage |
| 60 |  | SCR 4-10 PL PNP 5/16 S5H | $14.95 ApplianceParts Pro |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | FUNNEL ICE DISPLAY | $28.96 Part Advantage |
| 72 |  | SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 76 | | WR2X8933replaces WR02X8933 SLEEVE WATER LINE | - |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | WR55X10562NLA COMBINED HMI ASM BK | Discontinued |
| 134 |  | SCR 6-10 PL FLP 1/2 S | - |
| 152 | | WR01X10596NLA SCR 8-18 AB FLTR 5/8 S | Discontinued |
| 153 |  | WR1X1505Dreplaces WR01X10597 SCR 6-20 B FHP 3/8 S | - |
| 181 | | WR01X10655NLA SCR 10-32 F HXW 3/4 S | Discontinued |
| 900 | | DOOR 20/22 FZ BK | - |
| 914 | | WR01X10200NLA THIMBLE DOOR TOP | Discontinued |
