Model
GE GSS22IBPHWW
Refrigerator

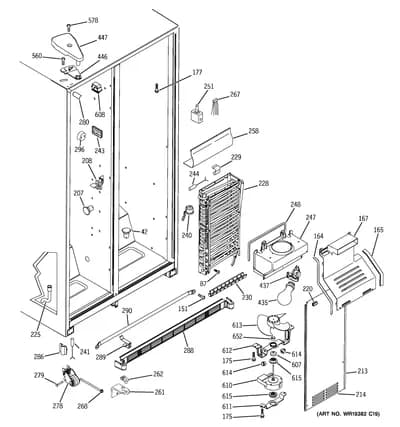

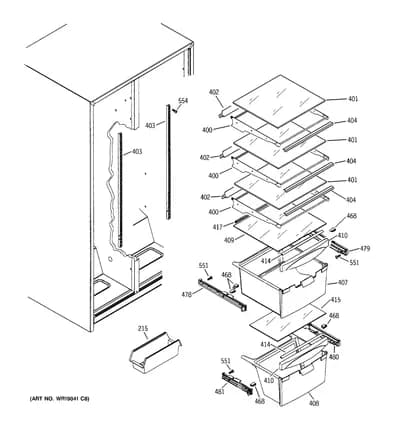

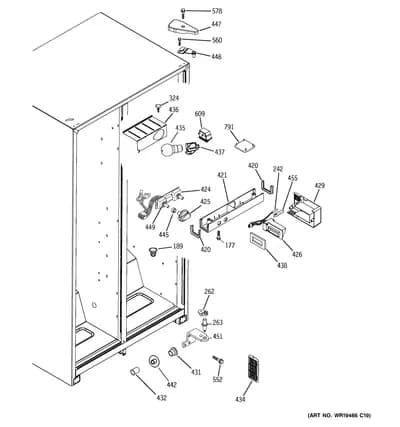

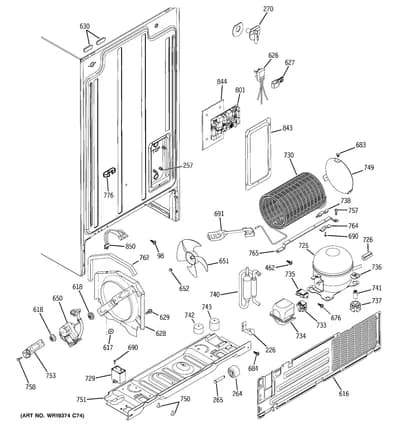

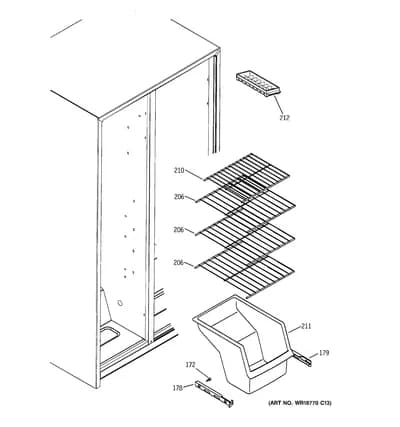

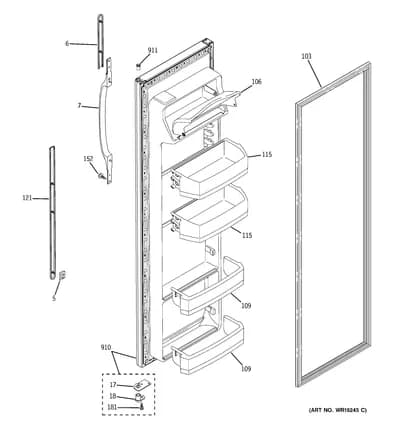

Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS22IBPHWWRefrigerator
7 diagrams176 parts
Parts Sections (7)
Diagram

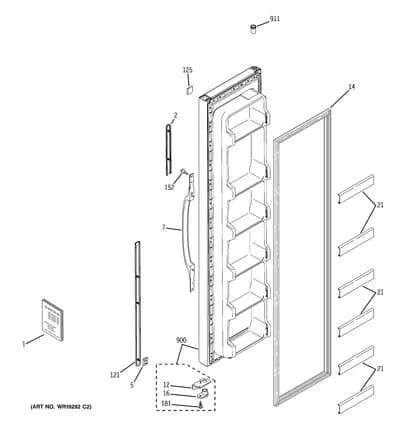

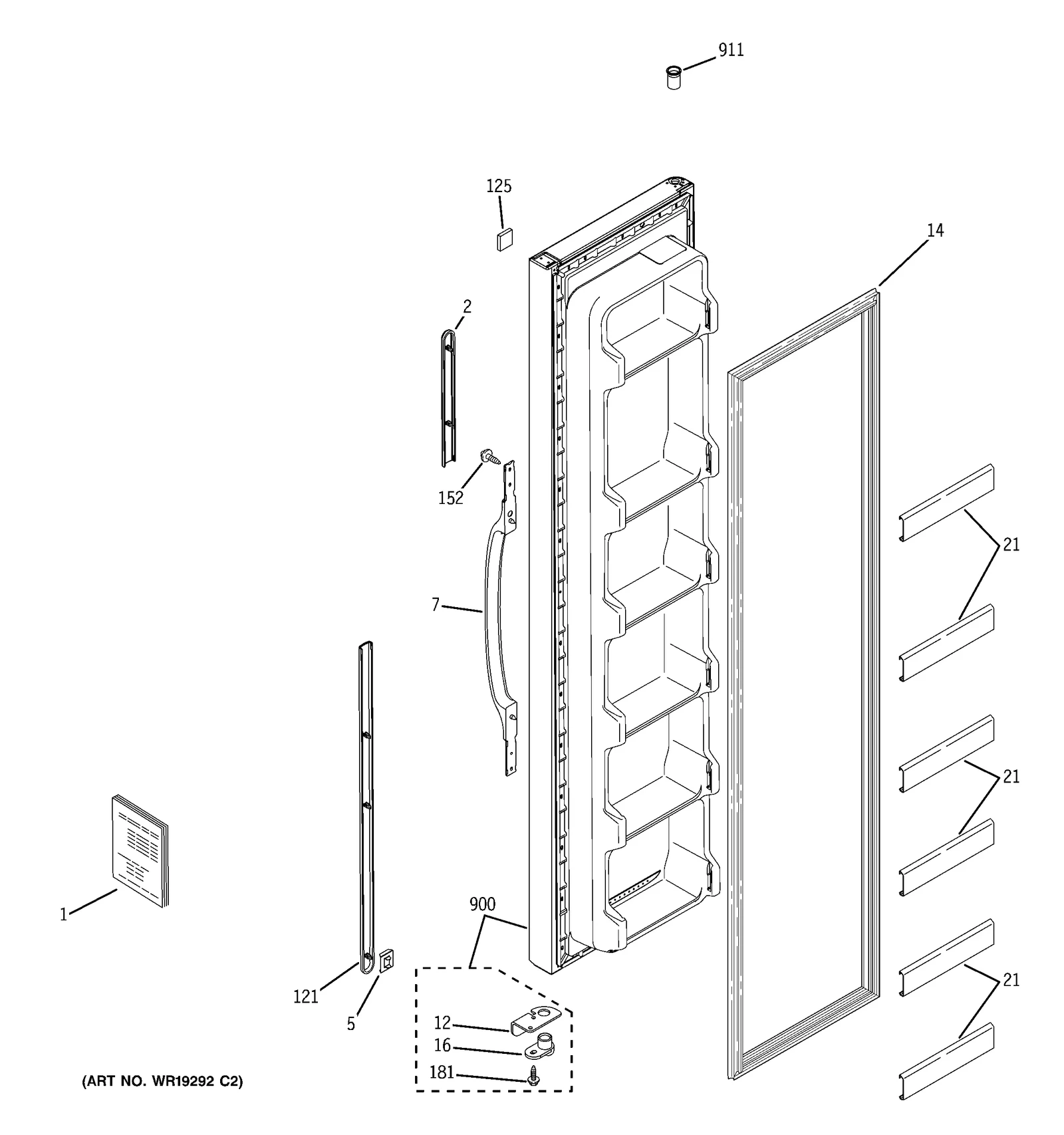

FREEZER DOOR
Parts in FREEZER DOOR
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51482 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60272 USE & CARE | - |
| 2 |  | TAIL HANDLE SXS WH | - |
| 5 | | DART CLIP | - |
| 7 |  | HANDLE SXS WHITE | $41.23 Parts Dr |
| 12 | | PLATE DOOR STOP FZ | - |
| 14 |  | WR24X10302replaces WR24X10131 GASKET DOOR FZ | $86.95 ApplianceParts Pro |
| 16 | | WR02X11478NLA CAM & THIMBLE FZ | Discontinued |
| 21 |  | WR17X12069replaces WR17X10760 FRONT DOOR SHELF | - |
| 121 |  | TAIL HANDLE SXS WH | $65.95 ApplianceParts Pro |
| 125 | | LENS NAMEPLATE | - |
| 152 | | WR01X10038NLA SCREW 8-18 AB FILTER 5/8 | Discontinued |
| 181 | | SCREW 10-32 TT HXW 3/4 S | Discontinued |
| 900 | | WR49X10141replaces WR78X10710 DOOR FZ WH | $167.91 PartSelect |
| 911 | | THIMBLE TOP CLOSED | $6.72 ApplianceParts Pro |
