Model
GE GSS22IFRJCC
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS22IFRJCCRefrigerator
8 diagrams256 parts
Parts Sections (8)
Diagram

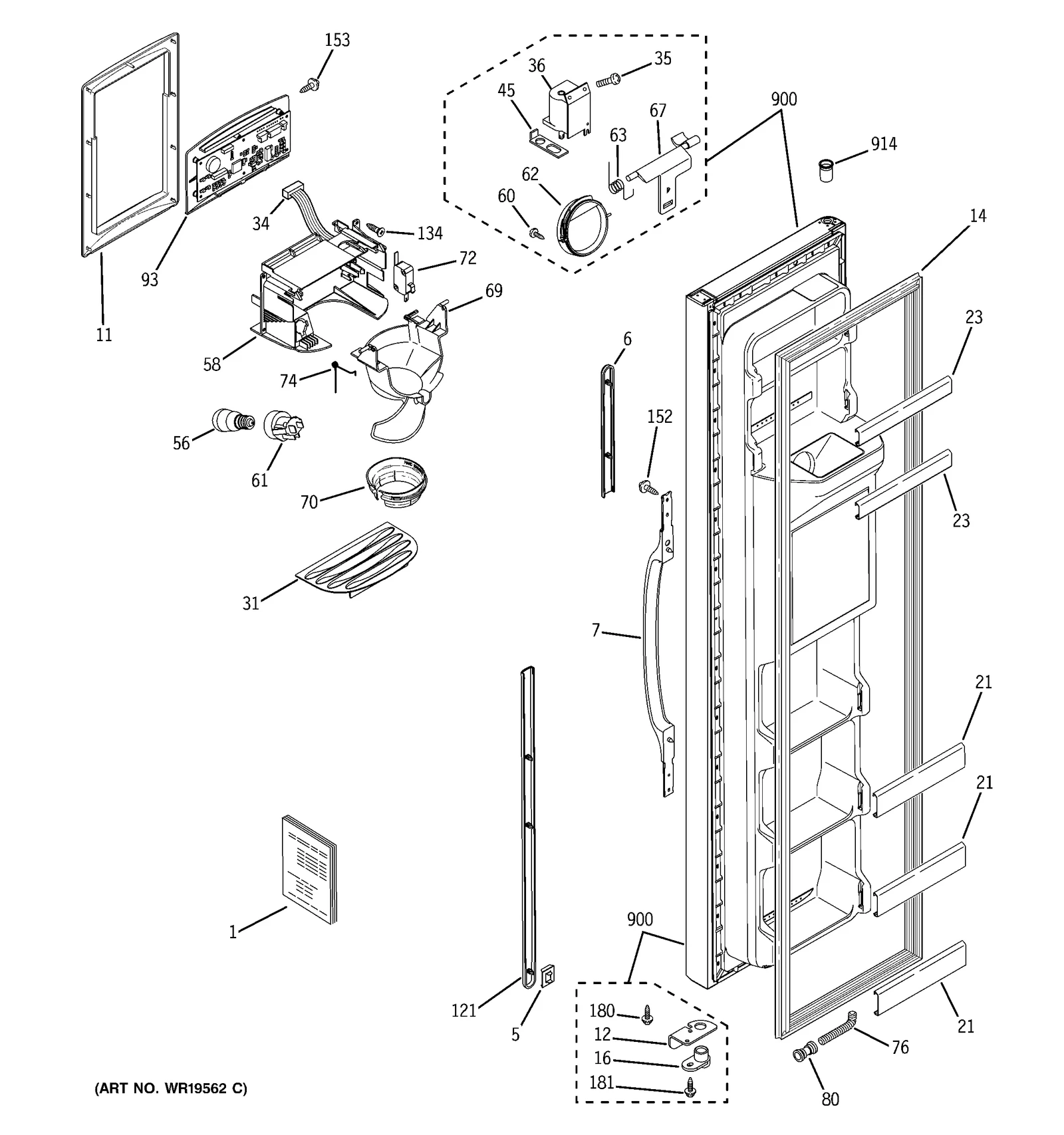

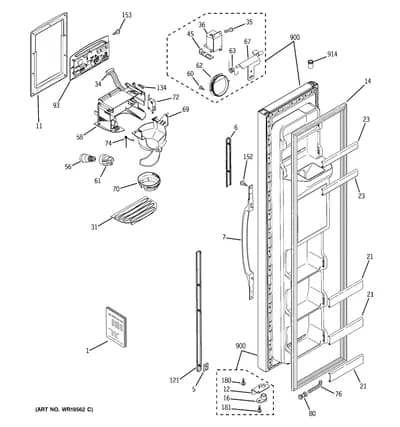

FREEZER DOOR
Parts in FREEZER DOOR
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51635 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60379 PM GUIDE OWNERS | - |
| 5 |  | DART CLIP | - |
| 6 | | WR12X10395NLA TAIL HANDLE SXS BISQUE | Discontinued |
| 7 | | HANDLE SXS BISQUE | - |
| 11 | | RECESS TRIM BISQUE | - |
| 12 | | PLATE DOOR STOP FF | - |
| 14 |  | WR24X10302replaces WR24X10131 GASKET DOOR FZ | $86.95 ApplianceParts Pro |
| 16 | | WR02X11478NLA CAM & THIMBLE FZ | Discontinued |
| 21 |  | WR17X12069replaces WR17X12066 FRONT DOOR SHELF FZ | - |
| 23 | | WR17X12075replaces WR17X12072 FRONT DOOR SHELF FZ | - |
| 31 | | WR17X10751NLA GRILL RECESS BISQUE | Discontinued |
| 34 | | HARNESS RECESS DISP | Discontinued |
| 35 |  | WR01X10649replaces WR01X10221 SCREW 8-10 PL PNP 1/2 S | $9.03 Parts Dr |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 58 |  | HOUSING SHIELD DISP | $13.52 Part Advantage |
| 60 |  | WR01X10656replaces WR01X10377 SCR 4-10 PL PNP 5/16 S5H | $14.95 ApplianceParts Pro |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | FUNNELL ICE BQ DISPLAY BISQUE | $39.21 ApplianceParts Pro |
| 70 | | WR17X11270NLA EXTENSION FUNNEL ICE | Discontinued |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 76 | | WR2X8933replaces WR02X8933 SLEEVE WATER LINE | - |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | RECESS DSPLY 4 BTN BQ | - |
| 121 | | TAIL HANDLE SXS BQ | - |
| 134 |  | SCREW 6-10 PL FLP 1/2 S | $7.95 ApplianceParts Pro |
| 152 | | WR01X10038NLA SCREW 8-18 AB FILTER 5/8 | Discontinued |
| 153 |  | WR1X1505Dreplaces WR01X1505 SCREW | - |
| 180 |  | WE02X10011replaces WR01X1966 SCREW 6-32 PL IHW 3/8 | - |
| 181 | | SCREW 10-32 TT HXW 3/4 S | Discontinued |
| 900 | | WR49X10141replaces WR78X10982 DOOR ASM FOAM FZ | $167.91 PartSelect |
| 914 | | WR01X10200NLA THIMBLE DOOR TOP | Discontinued |
