Model
GE GSS22JEMBCC
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS22JEMBCCRefrigerator
8 diagrams260 parts
Parts Sections (8)
Diagram

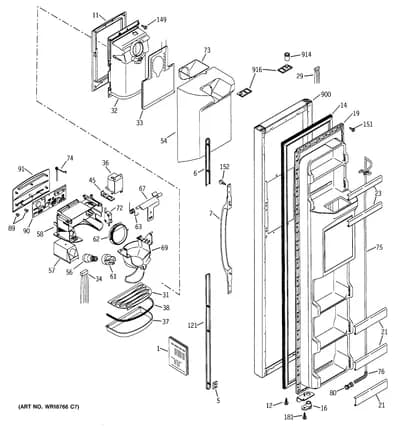

FREEZER DOOR
Parts in FREEZER DOOR
48 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51350 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60087 PM GUIDE OWNERS | - |
| 5 |  | DART CLIP | - |
| 6 | | WR12X10395NLA TAIL HANDLE SXS BISQUE | Discontinued |
| 7 | | HANDLE SXS BISQUE | - |
| 11 | | TRIM RECESS DISP BQ | - |
| 12 | | WR02X11475replaces WR02X10612 PLATE DOOR STOP FZ BQ | - |
| 14 | | WR24X10058NLA GASKET DOOR FZ WH | Discontinued |
| 16 | – | WR02X10566 HINGE CAM & THIMBLE FZ | - |
| 19 | | DOOR INNER FZ DISP | - |
| 21 |  | WR17X12069replaces WR17X10760 FRONT DOOR SHELF | - |
| 23 | | WR17X12075replaces WR17X10761 FRONT DOOR SHELF | - |
| 29 | – | WR23X10219 HARNESS COMM FZ DR | - |
| 31 | | WR17X10751NLA GRILL RECESS BISQUE | Discontinued |
| 32 | – | WR17X10749 RECESS ICE DISPENSER BQ | - |
| 33 | | HEATER RECESS | - |
| 34 | | HARNESS RECESS DISP | Discontinued |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 37 | – | WR02X10615 CUP RECESS BQ | - |
| 38 | – | WR14X10046 GASKET CUP RECESS | - |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 54 | | INSULATION RECESS | - |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 57 |  | REFLECTOR LIGHT | - |
| 58 | – | WR17X10814 HOUSING SHIELD DISP BQ | - |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | WR17X11269replaces WR17X10752 FUNNEL ICE DISP BQ | $39.21 ApplianceParts Pro |
| 72 |  | WR23X10783replaces WR23X10171 SWITCH | $32.20 Part Advantage |
| 73 | | WR17X11386replaces WR17X10767 CHUTE ICE ASM | - |
| 74 |  | SPRING FUNNEL | Discontinued |
| 75 | – | WR17X10824 TUBE FORMED ASM BQ | - |
| 76 | | WR2X8933replaces WR02X8933 SLEEVE WATER LINE | - |
| 80 |  | WR02X11330replaces WR02X10471 CONNECTOR UNION 5/16 | $4.50 Part Advantage |
| 89 | – | WR02X10704 PIN SWITCH SHORT | - |
| 89 | – | WR02X10705 PIN SWITCH TALL | - |
| 90 | | WR55X10052NLA BOARD ASM DISP | Discontinued |
| 91 | | WR55X10054NLA BRACKET & OVERLAY BQ | Discontinued |
| 121 | | TAIL HANDLE SXS BQ | - |
| 149 |  | SCREW 8-18 HI/LO 5/8 | $7.95 ApplianceParts Pro |
| 151 |  | WR01X10623replaces WR01X1554 SCR 8-18 AB IHXW 1/2 S | $4.39 Parts Dr |
| 152 | | WR01X10038NLA SCREW 8-18 AB FILTER 5/8 | Discontinued |
| 181 | | SCREW 10-32 TT HXW 3/4 S | Discontinued |
| 900 | | WR78X11707replaces WR78X10366 DOOR FOAM ASM FZ BQ | - |
| 914 | | WR01X10200NLA THIMBLE DOOR TOP | Discontinued |
| 916 | – | WR02X10617 COVER ASM CORNER BQ | - |
