Model
GE GSS22KGMCAA
Refrigerator
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS22KGMCAARefrigerator
10 diagrams289 parts
Parts Sections (10)
Diagram

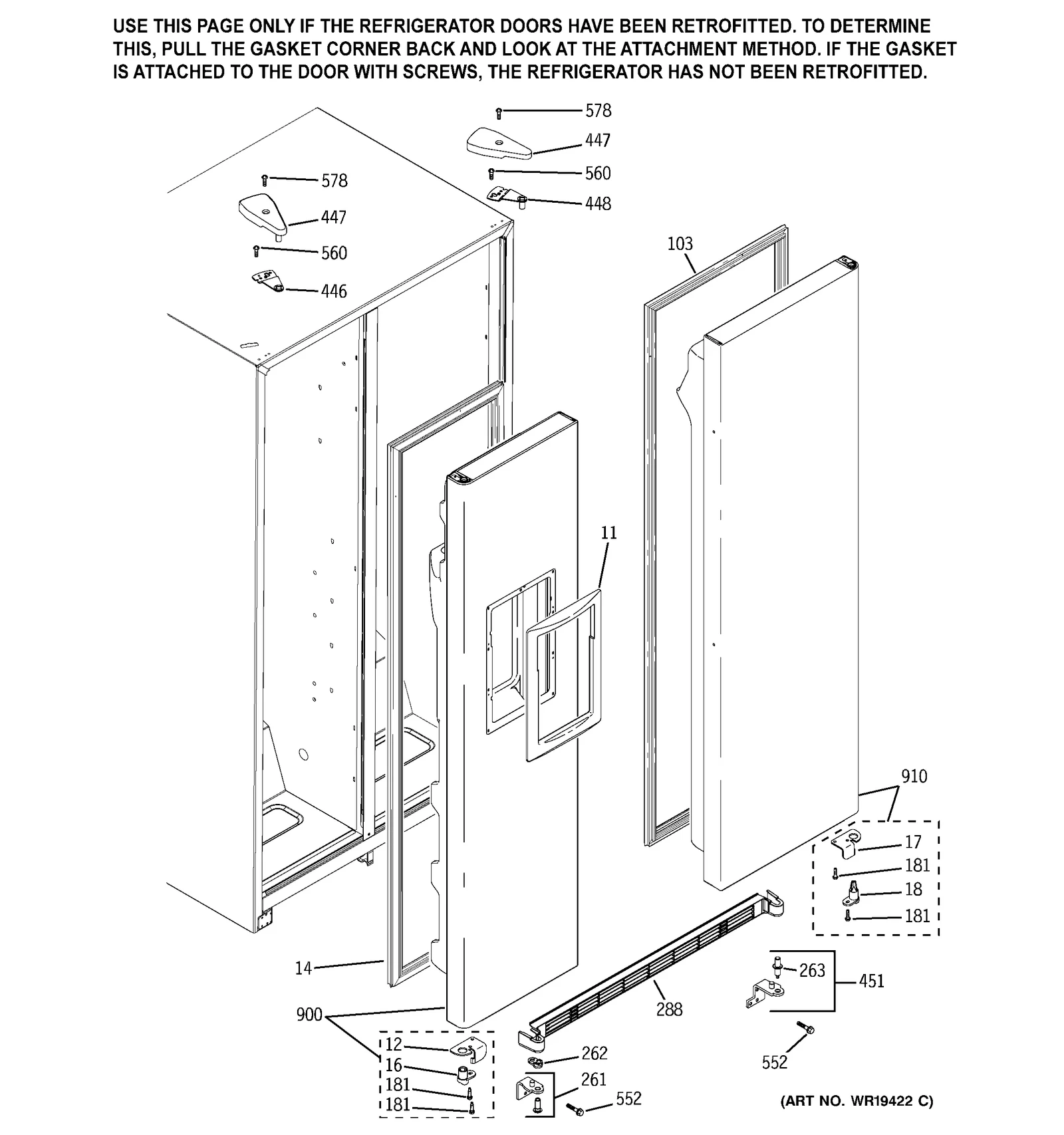

DOOR KIT
Parts in DOOR KIT
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 | – | WR38X10266 TRIM RECESS DISP AD | - |
| 12 |  | WR02X11475replaces WR02X10597 PLATE DOOR STOP FZ AD | - |
| 14 | | WR24X10058NLA GASKET DOOR FZ WH | Discontinued |
| 16 | – | WR02X10566 HINGE CAM & THIMBLE FZ | - |
| 17 | | WR02X11474replaces WR02X10596 PLATE DOOR STOP FF AD | - |
| 18 | | WR02X10567NLA HINGE CAM & THIMBLE FF | Discontinued |
| 103 | | WR24X10057NLA GASKET DOOR FF WH | Discontinued |
| 181 | | SCREW 10-32 TT HXW 3/4 S | Discontinued |
| 261 | | THRUST WASHER | - |
| 261 | | WR13X10120NLA HINGE BTM PIN & CAM ASM | Discontinued |
| 262 | | WR02X10568NLA HINGE CAM RISER | Discontinued |
| 263 |  | PIN HINGE BTM ADJ | - |
| 288 | – | WR74X10059 GRILLE BASE ASM AD | - |
| 446 | | HINGE TOP ASM FZ | - |
| 447 | | COVER HINGE AD | - |
| 448 | | HINGE TOP ASM FF | - |
| 451 | | WR13X10154NLA HINGE BTM & PIN ASM | Discontinued |
| 552 |  | WR01X10600replaces WR01X10034 SCREW 12-24 TT IH 811 S | $7.37 ApplianceParts Pro |
| 560 | | WR01X10650replaces WR01X10195 SCREW 12-24 CA HX 7/8 S | - |
| 578 |  | WZ2X464Dreplaces WZ02X0503 SCREW 8-32 , 13-32 | - |
| 900 | | DOOR FOAM ASM FZ AD | - |
| 910 | | DOOR FOAM ASM FF AD | - |
