Model
GE GSS23GGKRCWW
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23GGKRCWWRefrigerator
9 diagrams201 parts
Parts Sections (9)
Diagram

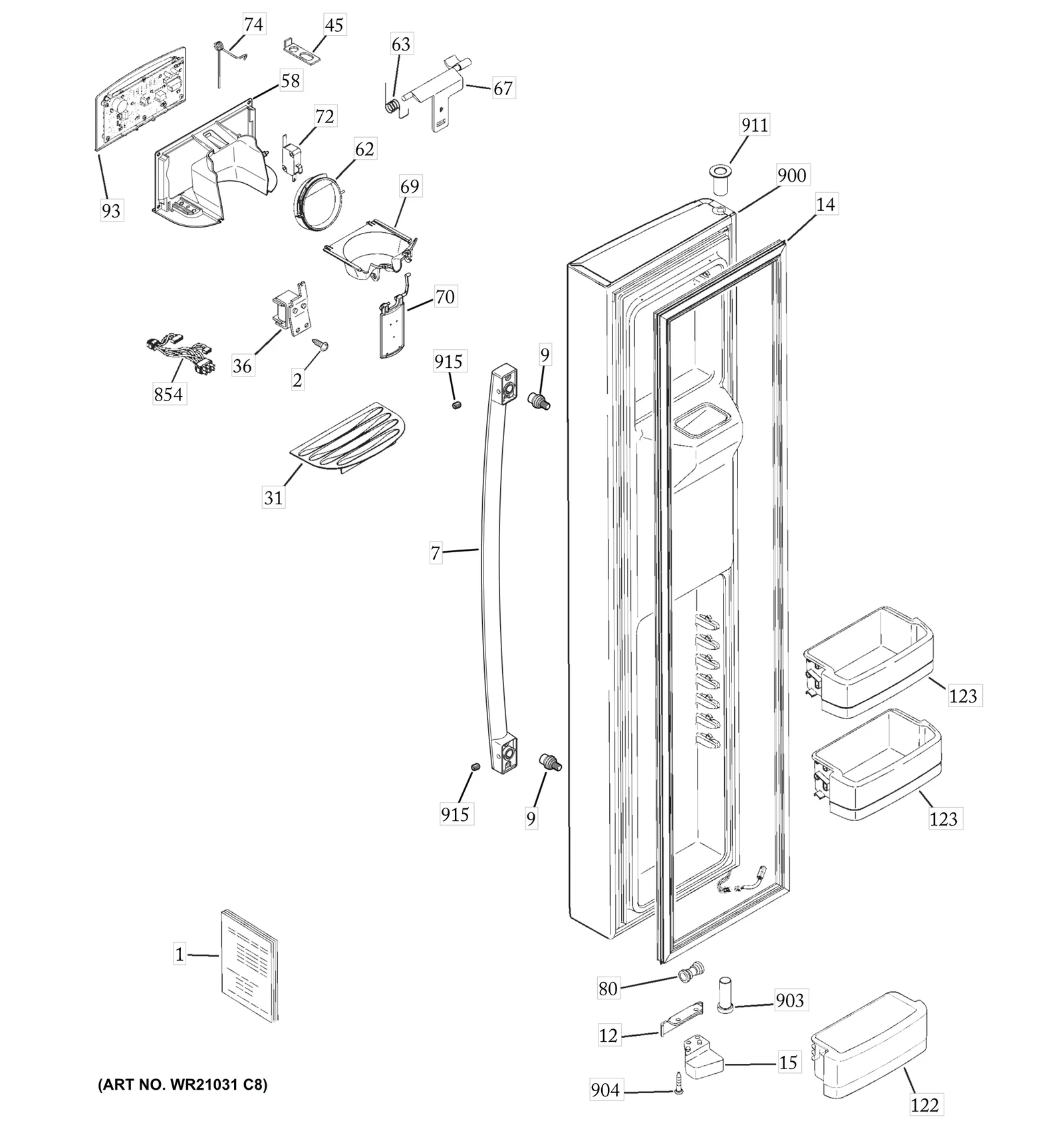

FREEZER DOOR
Parts in FREEZER DOOR
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-1000468 PM QUICK OWNERS MANUAL | - |
| 1 | – | 31-1000505 PM MINI MANUAL AND WIRING | - |
| 2 |  | SCR 4-10 PL PNP 3/4 SS | $10.95 ApplianceParts Pro |
| 7 |  | WHITE HANDLE DOOR ASM | $78.77 PartSelect |
| 9 |  | DOOR HANDLE FASTENER | $5.09 Part Advantage |
| 12 |  | STOP DOOR WHITE | $10.95 ApplianceParts Pro |
| 14 |  | GASKET DOOR FZ WW | - |
| 15 |  | CAM CLOSURE FZ WHITE | - |
| 31 |  | GRILL RECESS | $10.26 Part Advantage |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 58 |  | HOUSING SHIELD DISP WHITE | $16.56 ApplianceParts Pro |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 |  | DISPENSER ICE FUNNEL | $20.89 Part Advantage |
| 70 |  | PADDLE ASM | $44.87 Parts Dr |
| 72 |  | SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING TORSION | $6.79 Part Advantage |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 |  | INTERFACE DISPENSER ASM WHITE | $85.46 ApplianceParts Pro |
| 122 |  | MODULE SHELF FZ FIXED | - |
| 123 |  | MODULE SHELF FZ | - |
| 854 |  | HARNESS RECESS DISP | - |
| 900 | | DOOR FOAM ASM FZ | - |
| 903 |  | THIMBLE DOOR BTM FZ WHITE | - |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 911 |  | THIMBLE DOOR | - |
| 915 |  | SET SCREW (9.5MM) | $5.14 Part Advantage |
