Model
GE GSS23GSKECSS
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23GSKECSSRefrigerator
9 diagrams209 parts
Parts Sections (9)
Diagram

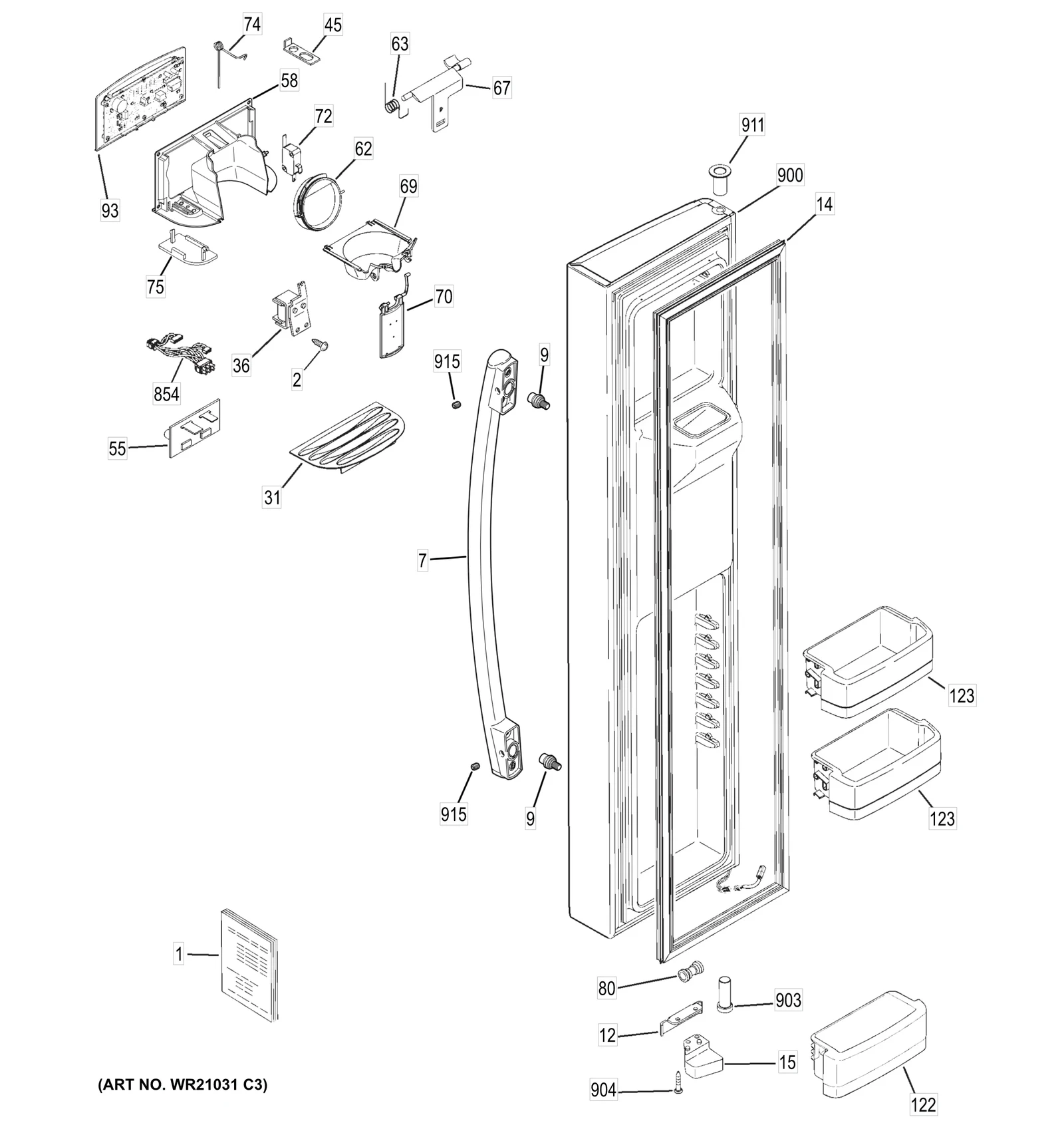

FREEZER DOOR
Parts in FREEZER DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-60646 PM GUIDE OWNERS | - |
| 1 | – | 31-51949-3 PM MINI WIRING MANUAL | - |
| 2 |  | SCR 4-10 PL PNP 3/4 SS | $10.95 ApplianceParts Pro |
| 7 |  | WR12X21070replaces WR12X20441 ARC HANDLE ASM | $70.08 Part Advantage |
| 9 |  | DOOR HANDLE FASTENER | $5.09 Part Advantage |
| 12 |  | STOP DOOR BLACK | $15.15 Part Advantage |
| 14 |  | WR24X20454replaces WR24X25781 GASKET DOOR FZ DG | $72.25 Parts Dr |
| 15 |  | CAM CLOSURE FZ BLACK | $10.46 Parts Dr |
| 31 |  | GRILL RECESS | $16.19 Parts Dr |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 55 |  | BOARD ASM DISP LIGHTING | $49.53 Parts Dr |
| 58 |  | WR17X34253replaces WR17X12900 HOUSING SHIELD DISP | $26.08 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 |  | FUNNEL ICE DISP | $18.56 Part Advantage |
| 70 |  | PADDLE ASM | $19.76 Part Advantage |
| 72 |  | SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING TORSION | $6.79 Part Advantage |
| 75 |  | COVER LED HOUSING SHIELD | $10.95 ApplianceParts Pro |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 |  | INTERFACE DISPENSER ASM | $117.31 Part Advantage |
| 122 |  | MODULE SHELF FZ FIXED | - |
| 123 |  | MODULE SHELF FZ | - |
| 854 |  | HARNESS RECESS DISP | - |
| 900 |  | DOOR FOAM ASM FZ | - |
| 903 |  | THIMBLE DOOR BTM FZ BLACK | $9.95 ApplianceParts Pro |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 911 |  | THIMBLE DOOR | $10.95 ApplianceParts Pro |
| 915 |  | SET SCREW (9.5MM) | $5.14 Part Advantage |
