Model
GE GSS23KGSABB
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23KGSABBRefrigerator
9 diagrams225 parts
Parts Sections (9)
Diagram

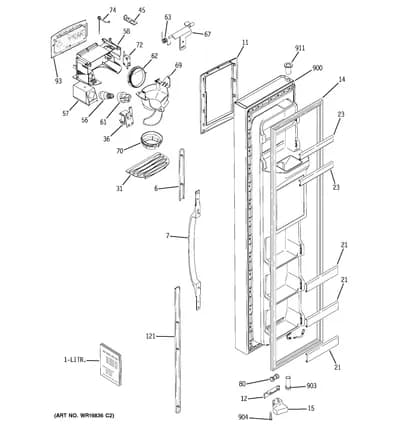

FREEZER DOOR
Parts in FREEZER DOOR
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51605 PM MINI WIRING MANUAL | - |
| 1 | – | 49-60343 No Item Description | - |
| 6 |  | WR12X10164NLA TAIL HANDLE SXS BLACK | Discontinued |
| 7 | | HANDLE SXS BLACK | - |
| 11 | – | WR38X10365 TRIM RECESS DISP FLAT | - |
| 12 |  | WR02X13425replaces WR02X10814 STOP DOOR BLACK | $13.84 RepairClinic |
| 14 |  | WR24X20454replaces WR24X10171 GASKET DOOR FZ | $72.25 Parts Dr |
| 15 |  | CAM CLOSURE FZ BLACK | $10.46 Parts Dr |
| 21 | | FRONT DOOR SHELF FZ | - |
| 23 | | FRONT DOOR SHELF FZ | - |
| 31 |  | GRILLE RECESS BK | $17.81 RepairClinic |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 57 |  | REFLECTOR LIGHT | - |
| 58 |  | WR17X12784replaces WR17X11954 HOUSING SHIELD DISP | - |
| 61 |  | WR2X9561replaces WR02X12007 SOCKET LAMP | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 | | WR17X11881NLA FUNNEL ICE DISP | Discontinued |
| 70 |  | WR49X10076replaces WR17X11268 EXTENSION FUNNEL ICE | $71.95 ApplianceParts Pro |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | WR55X10517NLA INTERFACE DISP ASM BK | Discontinued |
| 121 | | TAIL HANDLE SXS BLACK | - |
| 900 | – | WR78X11369 DOOR FOAM ASM FZ BK | - |
| 903 |  | THIMBLE DOOR BTM FZ BLACK | $9.95 ApplianceParts Pro |
| 904 |  | WR01X10611replaces WR01X10316 SCREW DOOR STOP | $3.47 RepairClinic |
| 904 | | WR01X10611replaces WR01X10375 SCREW DOOR STOP T20 | $3.47 RepairClinic |
| 911 |  | WR01X10956replaces WR01X10233 THIMBLE DOOR TOP BLACK | $10.95 ApplianceParts Pro |
