Model
GE GSS23LGTCCC
Refrigerator
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23LGTCCCRefrigerator
10 diagrams276 parts
Parts Sections (10)
Diagram

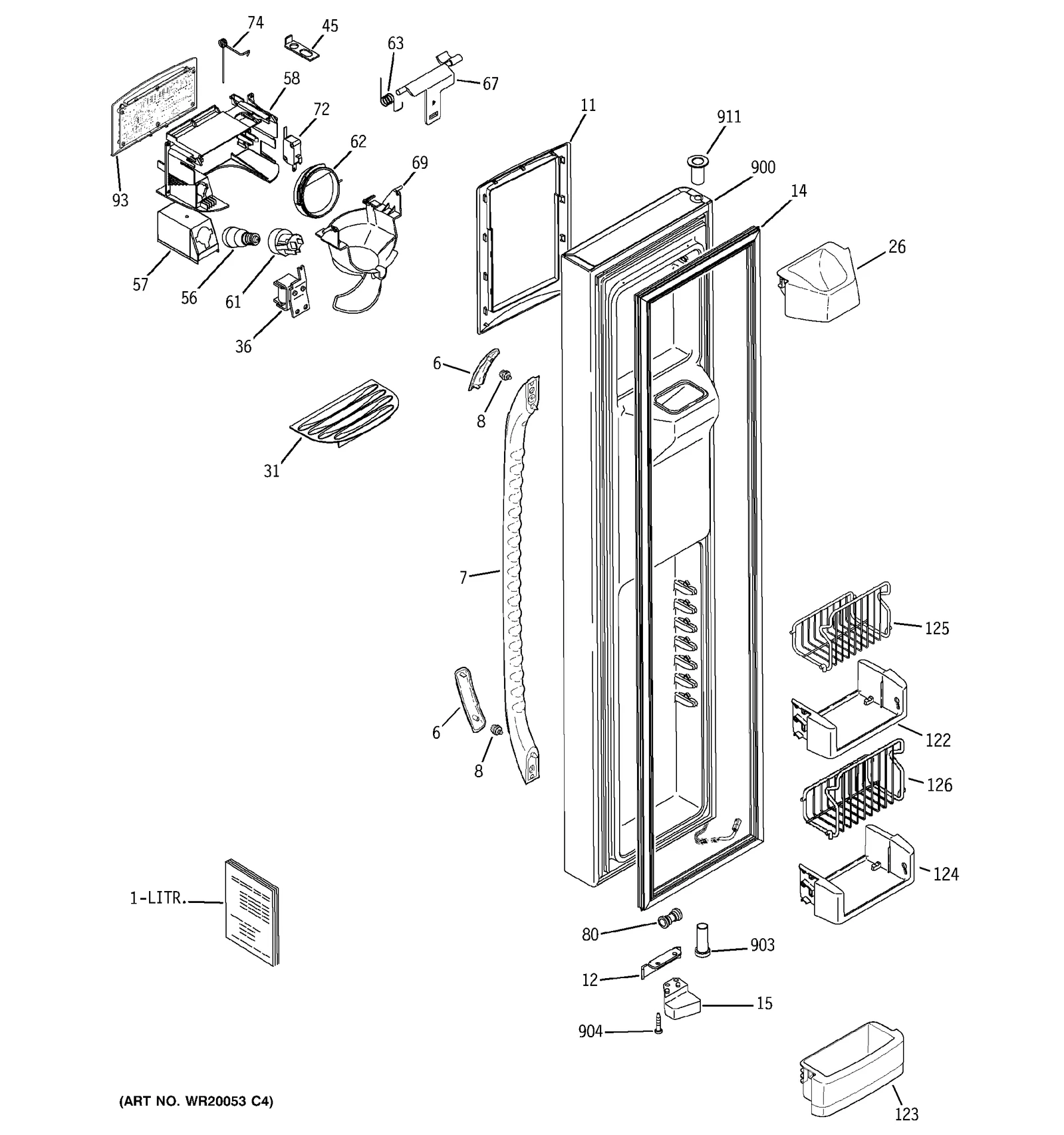

FREEZER DOOR
Parts in FREEZER DOOR
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51659 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60406 No Item Description | - |
| 6 |  | CAP HANDLE BQ | $6.71 RepairClinic |
| 7 | | HANDLE SXS DOOR BQ | - |
| 8 | | SCR 5/16-18 RNP | - |
| 11 | – | WR38X10371 TRIM RECESS DISP BOW BQ | - |
| 12 |  | STOP DOOR BISQUE | $6.04 RepairClinic |
| 14 | | GASKET DOOR FZ WW | - |
| 15 |  | CAM CLOSURE FZ WHITE | - |
| 26 | | GUIDE ICE | - |
| 31 | | GRILLE RECESS BQ | - |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X12208 LIGHT DISPENSER | $13.61 Part Advantage |
| 58 | | HOUSING SHIELD DISP | Discontinued |
| 61 |  | WR2X9561replaces WR02X12007 SOCKET LAMP | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 | | WR17X12135NLA FUNNEL ICE DISP BQ | Discontinued |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | INTERFACE DISPENSER ASM | - |
| 122 | | MODULE SUPPORT FZ | - |
| 123 |  | MODULE SHELF FZ | - |
| 124 | | MODULE SUPPORT FZ | - |
| 125 | | BASKET WIRE TILTOUT FZ | - |
| 126 | | BASKET WIRE TILTOUT FZ | - |
| 900 | – | WR78X11788 DOOR FOAM ASM FZ BQ | - |
| 903 |  | THIMBLE DOOR BTM FZ BISQUE | - |
| 904 |  | SCR 10-16 | $3.47 RepairClinic |
| 911 | | WR01X10957replaces WR01X10236 THIMBLE DOOR TOP BISQUE | - |
