Model
GE GSS23QGTMWW
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23QGTMWWRefrigerator
9 diagrams233 parts
Parts Sections (9)
Diagram

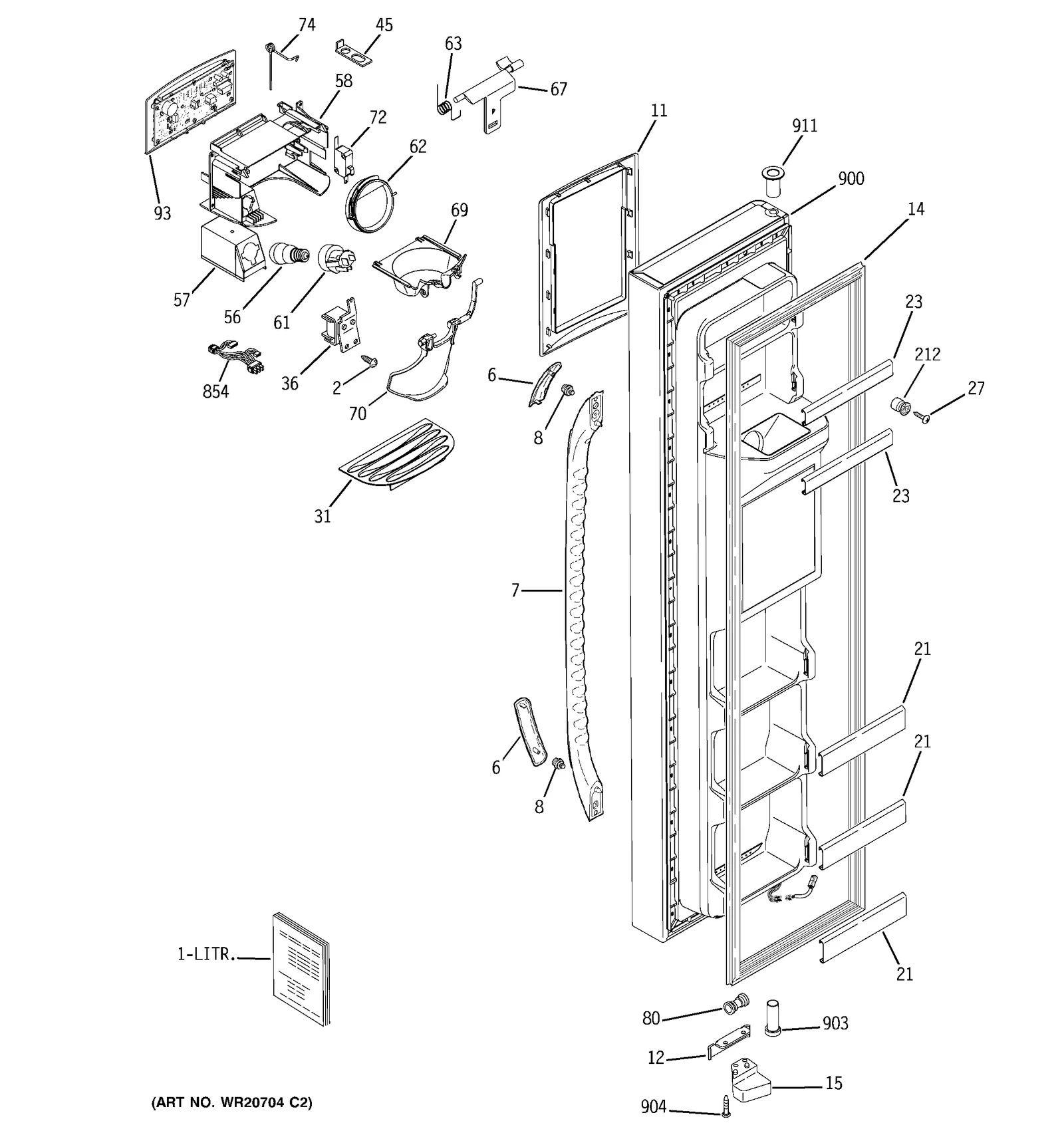

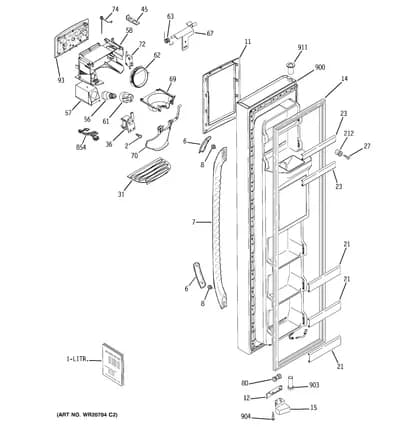

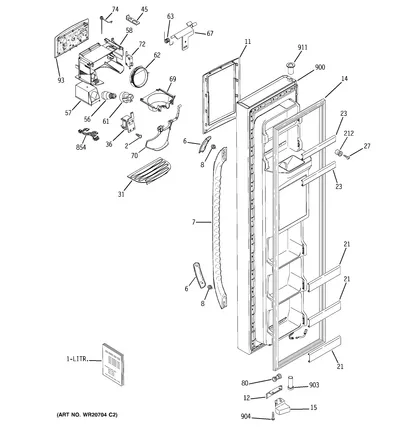

FREEZER DOOR
Parts in FREEZER DOOR
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51662 PM MINI WIRING MANUAL | - |
| 1 | – | 49-60593 PM GUIDE OWNERS | - |
| 2 |  | SCR 4-10 PL PNP 3/4 SS | $10.95 ApplianceParts Pro |
| 6 |  | WR12X10816NLA CAP HANDLE WW | Discontinued |
| 7 | | HANDLE SXS DOOR WH | - |
| 8 | | SCR 5/16-18 RNP | - |
| 11 | | TRIM RECESS DISP FLAT | - |
| 12 |  | WR02X13424replaces WR02X10649 STOP DOOR WH | - |
| 14 | | GASKET DOOR FZ WW | - |
| 15 |  | CAM CLOSURE FZ WHITE | - |
| 21 | | FRONT DOOR SHELF FZ | - |
| 23 | | FRONT DOOR SHELF FZ | - |
| 27 |  | SCR 8-18 AB FLP 7/8 S | - |
| 31 |  | GRILLE RECESS WH | $13.16 Parts Dr |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X12208 LIGHT DISPENSER | $13.61 Part Advantage |
| 58 | | HOUSING SHIELD DISP | - |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 |  | WR17X21781replaces WR17X12787 FUNNEL ICE DISP | $20.89 Part Advantage |
| 70 |  | PADDLE ICE DISP WH | $17.91 Parts Dr |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING TORSION | $6.79 Part Advantage |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | WR55X10857NLA INTERFACE DISPENSER ASM | Discontinued |
| 212 | | GROMMET BASE GRILLE | $3.47 RepairClinic |
| 854 | | HARNESS RECESS DISP | - |
| 900 | | DOOR FOAM ASM FZ WH | - |
| 903 |  | THIMBLE DOOR BTM FZ WHITE | - |
| 904 |  | WR01X10611replaces WR01X10375 SCREW DOOR STOP T20 | $3.47 RepairClinic |
| 911 |  | WR01X10955replaces WR01X10207 THIMBLE DOOR TOP WHITE | - |
