Model
GE GSS23QSWLSS
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23QSWLSSRefrigerator
9 diagrams220 parts
Parts Sections (9)
Diagram

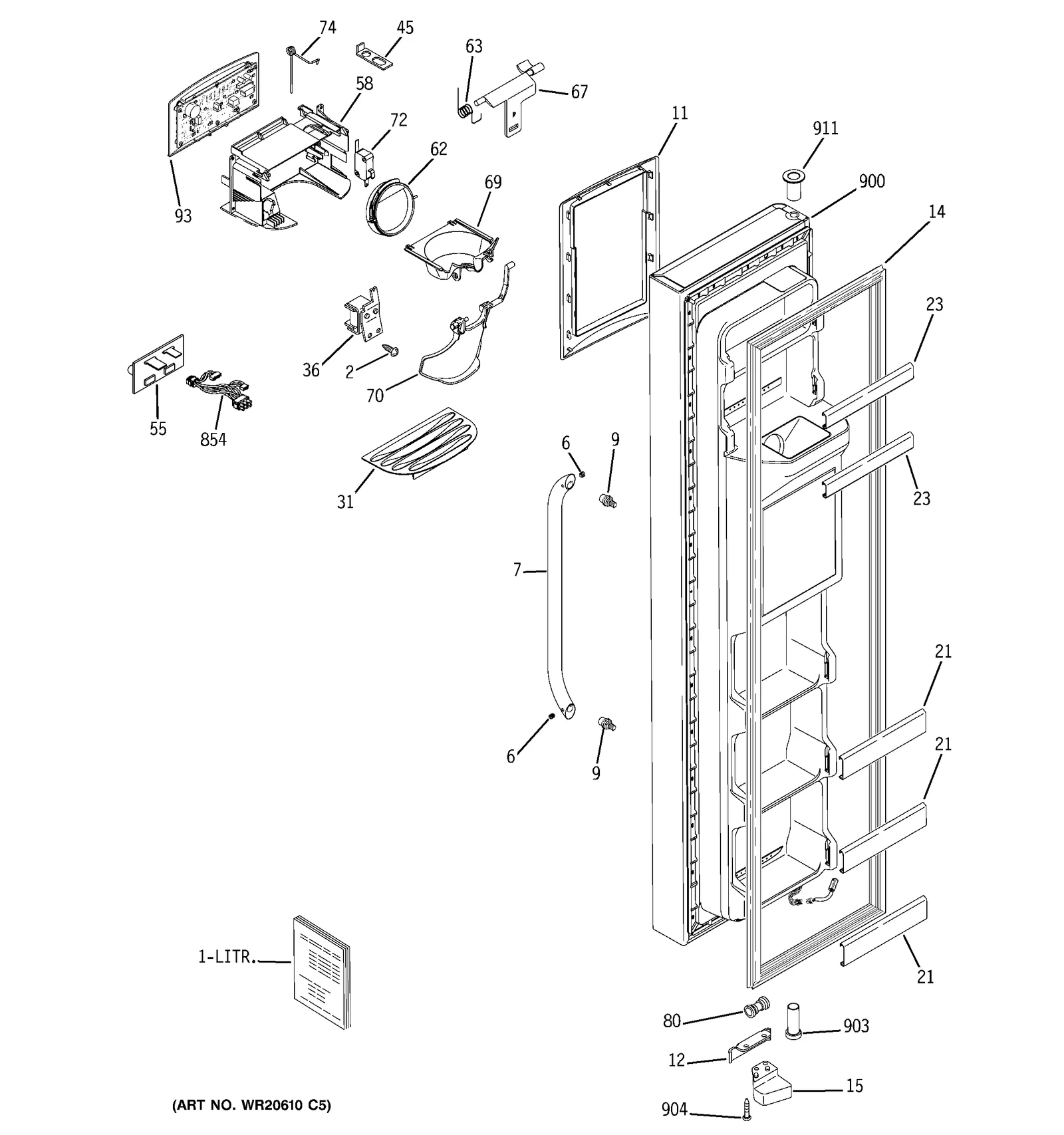

FREEZER DOOR
Parts in FREEZER DOOR
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 49-60593 PM GUIDE OWNERS | - |
| 2 |  | SCR 4-10 PL PNP 3/4 SS | $10.95 ApplianceParts Pro |
| 6 |  | SET SCREW | $5.14 Part Advantage |
| 7 |  | TUBULUR HANDLE ASM | $163.50 PartSelect |
| 9 |  | FASTENER HANDLE SS | $11.62 Part Advantage |
| 11 | – | WR38X10365 TRIM RECESS DISP FLAT | - |
| 14 |  | GASKET DOOR FZ WW | - |
| 15 |  | CAM CLOSURE FZ BLACK | $10.52 Parts Dr |
| 21 | | FRONT DOOR SHELF FZ | - |
| 23 | | FRONT DOOR SHELF FZ | - |
| 31 |  | GRILLE RECESS BK | $17.81 RepairClinic |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 58 |  | HOUSING SHIELD DISP | - |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 |  | WR17X21781replaces WR17X12786 FUNNEL ICE DISP | $20.89 Part Advantage |
| 70 |  | PADDLE ICE DISP BK | $6.58 Part Advantage |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING TORSION | $6.79 Part Advantage |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 |  | INTERFACE DISPENSER ASM | $149.79 Parts Dr |
| 854 | | HARNESS RECESS DISP | - |
| 900 | – | WR78X12080 DOOR FOAM ASM FZ | - |
| 903 |  | THIMBLE DOOR BTM FZ BLACK | $9.95 ApplianceParts Pro |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 911 |  | WR01X10956replaces WR01X10233 THIMBLE DOOR TOP BLACK | $10.95 ApplianceParts Pro |
