Model
GE GSS23WGTJBB
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS23WGTJBBRefrigerator
9 diagrams224 parts
Parts Sections (9)
Diagram

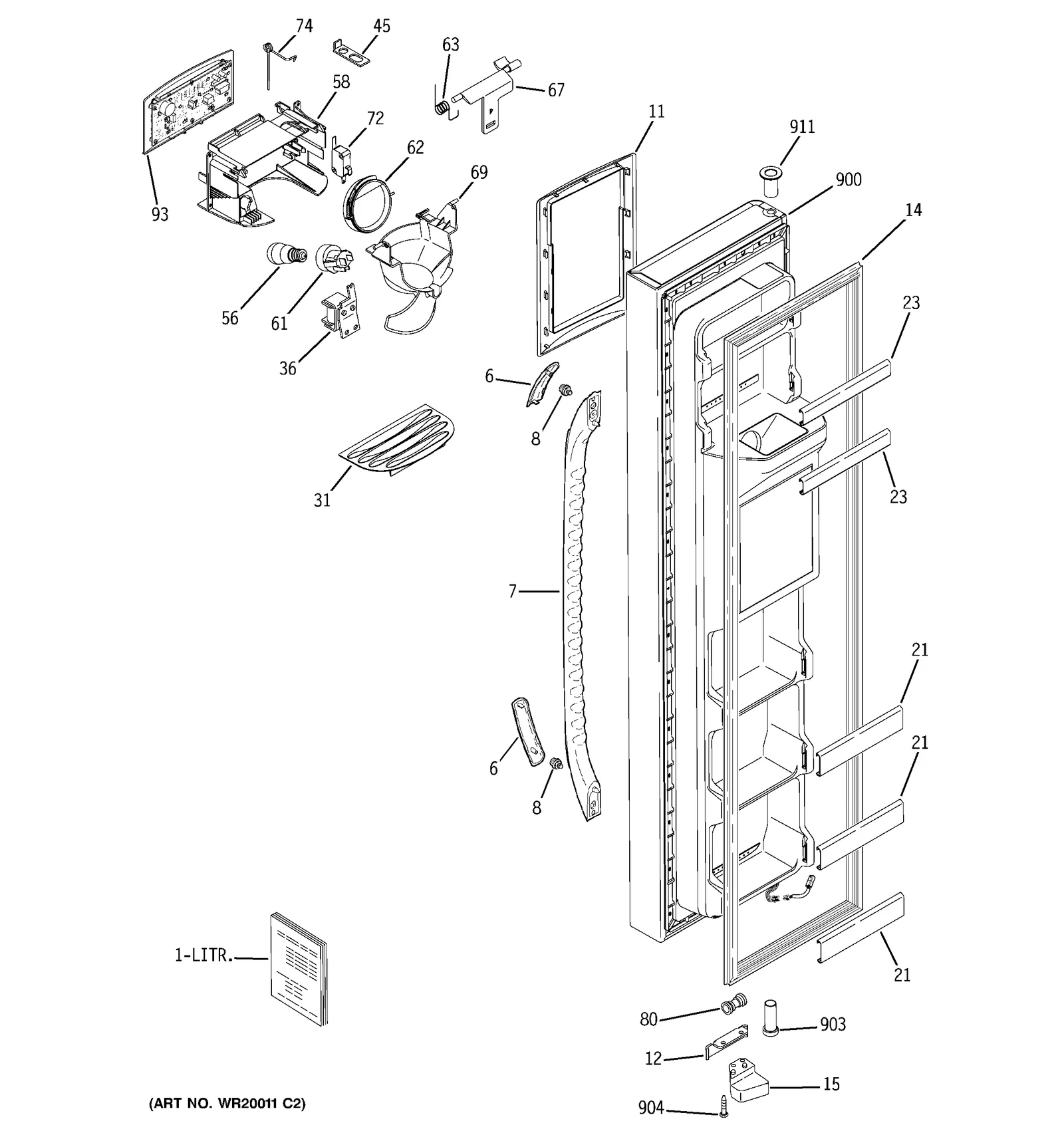

FREEZER DOOR
Parts in FREEZER DOOR
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51662 PM MINI WIRING MANUAL | - |
| 1 | – | 49-60407 PM GUIDE OWNERS | - |
| 6 |  | CAP HANDLE BB | - |
| 7 |  | HANDLE SXS DOOR BK | - |
| 8 | | SCR 5/16-18 RNP | - |
| 11 | – | WR38X10365 TRIM RECESS DISP FLAT | - |
| 12 |  | WR02X13425replaces WR02X10814 STOP DOOR BLACK | $13.84 RepairClinic |
| 14 |  | WR24X20454replaces WR24X10171 GASKET DOOR FZ | $72.25 Parts Dr |
| 15 |  | CAM CLOSURE FZ BLACK | $10.52 Parts Dr |
| 21 | | FRONT DOOR SHELF FZ | - |
| 23 | | FRONT DOOR SHELF FZ | - |
| 31 |  | GRILLE RECESS BK | $17.81 RepairClinic |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X12208 LIGHT DISPENSER | $13.61 Part Advantage |
| 58 |  | WR49X10228replaces WR17X12153 HOUSING SHIELD DISP | $55.58 Part Advantage |
| 61 |  | WR2X9561replaces WR02X12007 SOCKET LAMP | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $7.20 Part Advantage |
| 67 |  | CRANK DOOR RECESS | $13.13 Parts Dr |
| 69 | | WR49X10228replaces WR17X12084 FUNNEL ICE DISP BK | $55.58 Part Advantage |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 |  | INTERFACE DISPENSER ASM | $149.79 Parts Dr |
| 900 | | DOOR FOAM ASM FZ BK | - |
| 903 |  | THIMBLE DOOR BTM FZ BLACK | $9.95 ApplianceParts Pro |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 911 |  | WR01X10956replaces WR01X10233 THIMBLE DOOR TOP BLACK | $10.95 ApplianceParts Pro |
