Model
GE GSS25IBNBHTS
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25IBNBHTSRefrigerator
9 diagrams199 parts

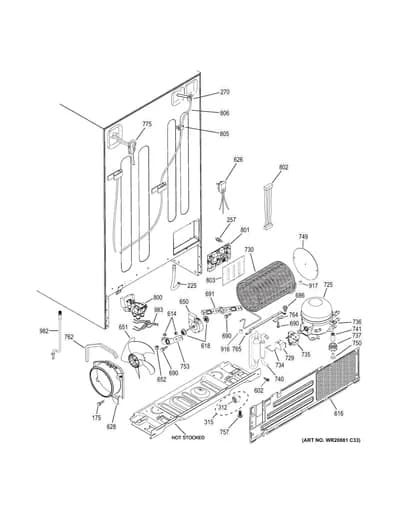

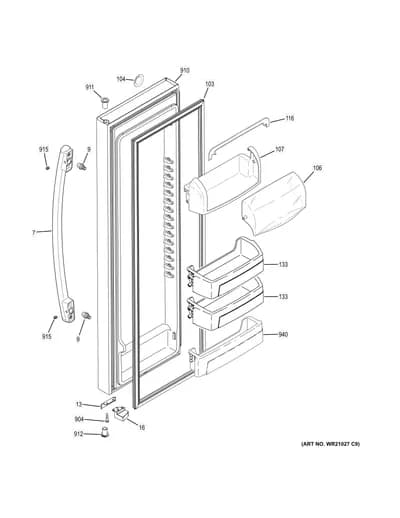

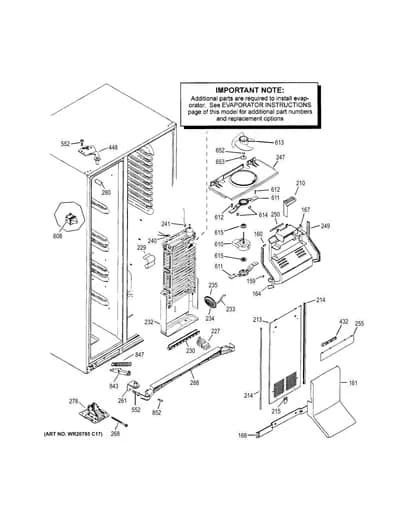

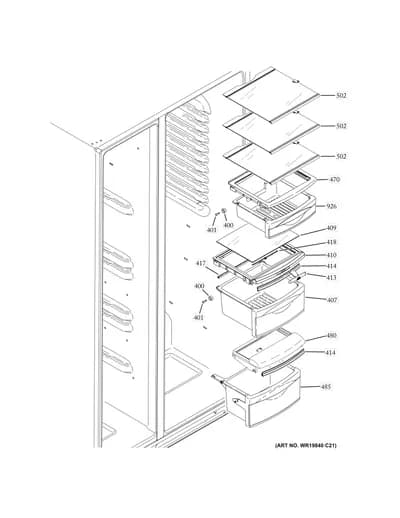

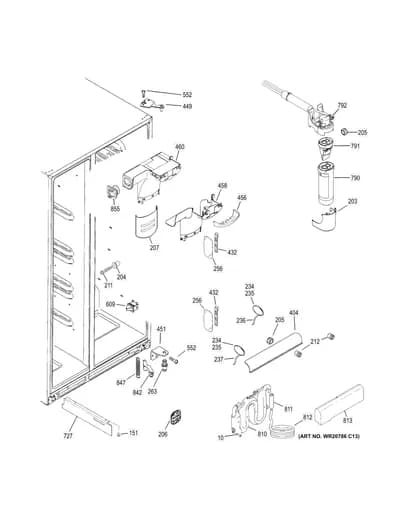

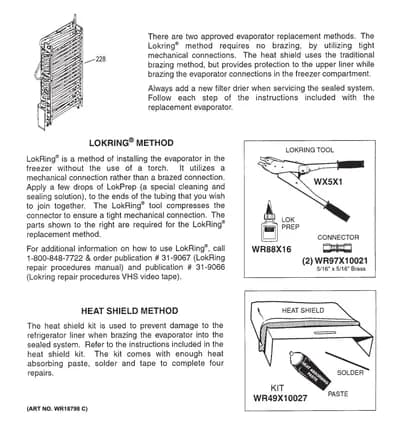

Parts Sections (9)
Diagram

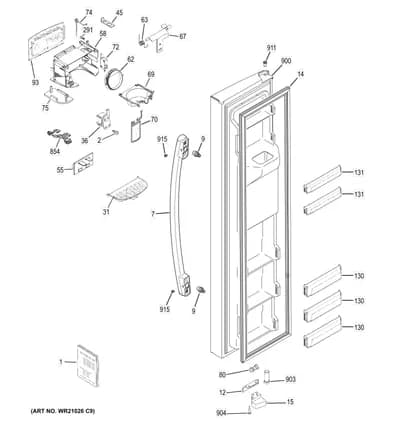

FREEZER DOOR
Parts in FREEZER DOOR
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-1000062 PM MINI MANUAL AND WIRING | - |
| 1 | – | 49-60822 PM QUICK USE & CARE CAFE | - |
| 2 |  | SCR 4-10 PL PNP 3/4 SS | $10.95 ApplianceParts Pro |
| 7 |  | BLACK STAINLESS DOOR HANDLE | - |
| 9 |  | DOOR HANDLE FASTENER | $5.09 Part Advantage |
| 12 |  | FREEZER DOOR STOP BLACK | $18.95 ApplianceParts Pro |
| 14 |  | GASKET | $63.40 Part Advantage |
| 15 |  | CAM CLOSURE FZ BLACK | $10.52 Parts Dr |
| 31 |  | RECESS GRILL DORIAN GRAY | $17.34 ApplianceParts Pro |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 55 |  | BOARD ASM DISP LIGHTING | $49.53 Parts Dr |
| 58 |  | WR17X34253replaces WR17X12900 HOUSING SHIELD DISP | $26.08 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | DISPENSER ICE FUNNEL | $20.89 Part Advantage |
| 70 |  | DISPENSER PADDLE DORIAN GRAY | - |
| 72 |  | SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING TORSION | $6.79 Part Advantage |
| 75 |  | COVER LED HOUSING SHIELD | $10.95 ApplianceParts Pro |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 |  | BLACK SS UI AND BOARD | - |
| 130 |  | WR71X38335replaces WR71X24432 SHELF DOOR FZ BOTTOM | $14.36 Part Advantage |
| 131 |  | WR17X38320replaces WR71X24431 SHELF DOOR FZ UPPER | $13.05 Part Advantage |
| 291 |  | WR01X10649replaces WR01X10221 SCREW 8-10 PL PNP 1/2 S | $9.03 Parts Dr |
| 854 |  | HARNESS RECESS DISP | - |
| 900 |  | BLACK SS FREEZER DOOR | - |
| 903 |  | THIMBLE DOOR | $9.83 ApplianceParts Pro |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 911 |  | THIMBLE DOOR | $7.95 ApplianceParts Pro |
| 915 |  | SET SCREW (9.5MM) | $5.14 Part Advantage |
