Model
GE GSS25KGMDWW
Refrigerator
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25KGMDWWRefrigerator
10 diagrams288 parts
Parts Sections (10)
Diagram

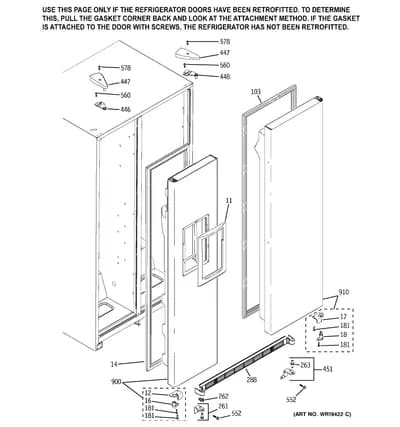

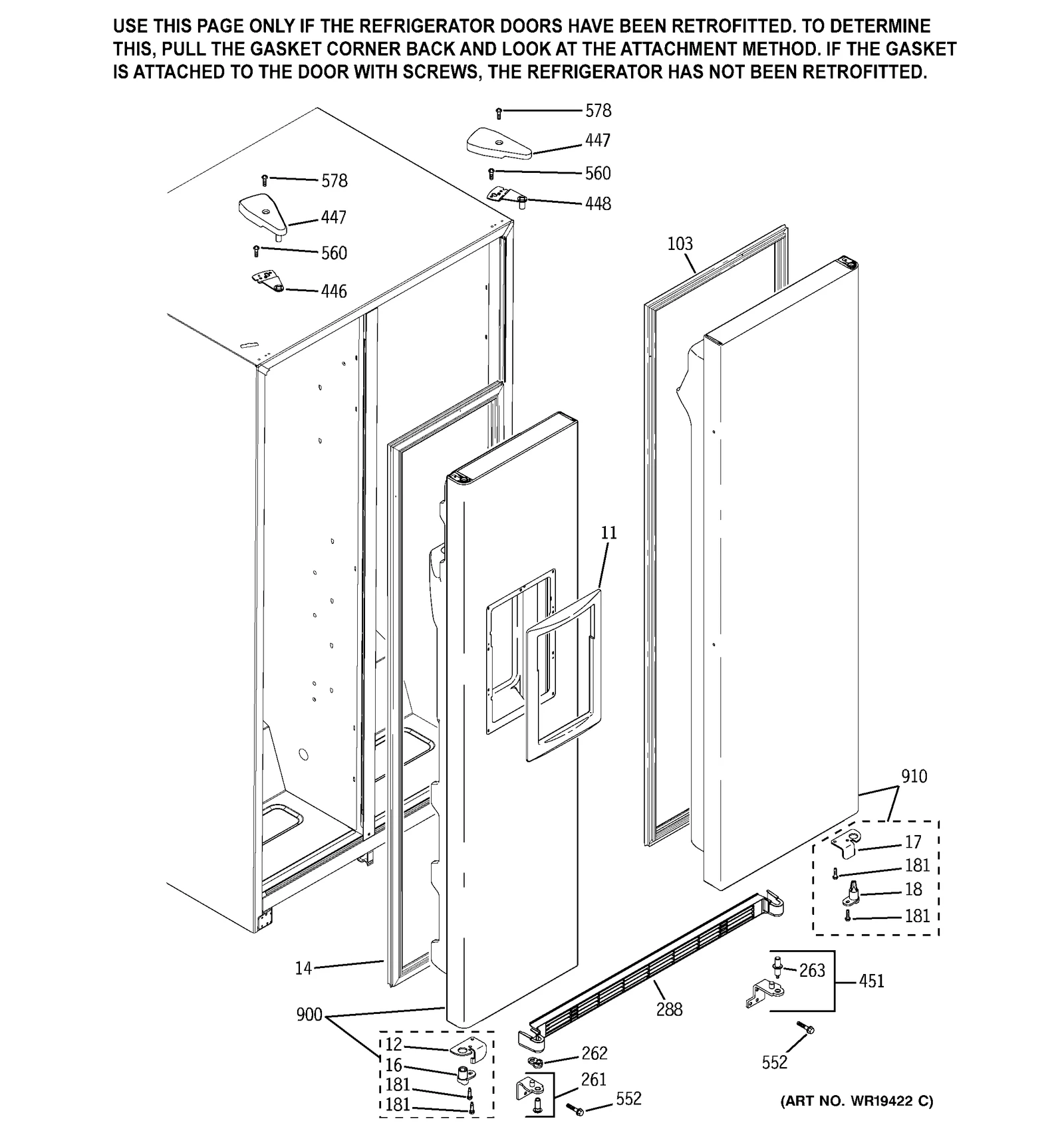

DOOR KIT
Parts in DOOR KIT
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | TRIM RECESS DISP WH | - |
| 12 | | PLATE DOOR STOP FZ | - |
| 14 | | WR24X10053NLA GASKET DOOR FZ WH | Discontinued |
| 16 | | CAM & THIMBLE | - |
| 17 | | PLATE DOOR STOP FF WHITE | - |
| 18 | | WR02X11285NLA CAM & THIMBLE | Discontinued |
| 103 | | WR24X10054NLA GASKET DOOR FF WH | Discontinued |
| 181 | | SCREW 10-32 TT HXW 3/4 S | Discontinued |
| 261 | | THRUST WASHER | - |
| 261 | | WR13X10120NLA HINGE BTM PIN & CAM ASM | Discontinued |
| 262 | – | WR02X11286 HINGE CAM RISER | - |
| 263 |  | PIN HINGE BTM ADJ | - |
| 288 | | GRILLE BASE ASM WH | - |
| 446 | | HINGE TOP ASM FZ | - |
| 447 | | WR02X10555NLA COVER HINGE WH | Discontinued |
| 448 | | HINGE TOP ASM FF | - |
| 451 | | WR13X10154NLA HINGE BTM & PIN ASM | Discontinued |
| 552 |  | WR01X10600replaces WR01X10034 SCREW 12-24 TT IH 811 S | $7.37 ApplianceParts Pro |
| 560 | | WR01X10650replaces WR01X10195 SCREW 12-24 CA HX 7/8 S | - |
| 578 |  | WZ2X464replaces WZ02X0503 SCREW 8-32 , 13-32 | - |
| 900 | – | WR78X10338 DOOR FOAM ASM FZ WH | - |
| 910 | | WR78X11646replaces WR78X10337 DOOR FOAM ASM FF WH | - |
