Model
GE GSS25KGSACC
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25KGSACCRefrigerator
9 diagrams228 parts
Parts Sections (9)
Diagram

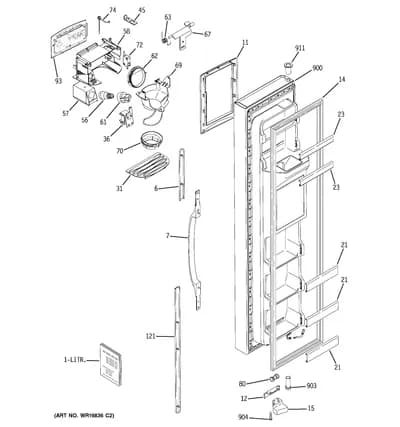

FREEZER DOOR
Parts in FREEZER DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51607 PM MINIMANUAL WIRING | - |
| 1 | – | 49-60343 No Item Description | - |
| 6 |  | TAIL HANDLE SXS BISQUE | - |
| 7 | | HANDLE SXS BISQUE | - |
| 11 |  | TRIM RECESS DISP CLAD BQ | - |
| 12 | | STOP DOOR BISQUE | Discontinued |
| 14 |  | GASKET DOOR FZ WH** | $75.98 Part Advantage |
| 15 |  | CAM CLOSURE FZ WHITE | - |
| 21 | | WR17X11940NLA FRONT DOOR SHELF FZ | Discontinued |
| 23 | | FRONT DOOR SHELF FZ | - |
| 31 | | GRILLE RECESS BQ | - |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 58 | | WR17X11863NLA HOUSING SHIELD DISP | Discontinued |
| 61 |  | WR2X9561replaces WR02X12007 SOCKET LAMP | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 | | ICE ASSEMBLY | - |
| 69 | | WR17X11966NLA FUNNEL ICE DISP | Discontinued |
| 70 | | WR17X11270NLA EXTENSION FUNNEL ICE | Discontinued |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | WR55X10516NLA INTERFACE DISP ASM BQ | Discontinued |
| 121 |  | TAIL HANDLE SXS | - |
| 900 | – | WR78X11360 DOOR FOAM ASM FZ BQ | - |
| 903 |  | THIMBLE DOOR BTM FZ BISQUE | - |
| 904 |  | WR01X10611replaces WR01X10375 SCREW DOOR STOP T20 | $3.47 RepairClinic |
| 911 | | WR01X10957replaces WR01X10236 THIMBLE DOOR TOP BISQUE | - |
