Model
GE GSS25LGMFCC
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25LGMFCCRefrigerator
9 diagrams250 parts
Parts Sections (9)

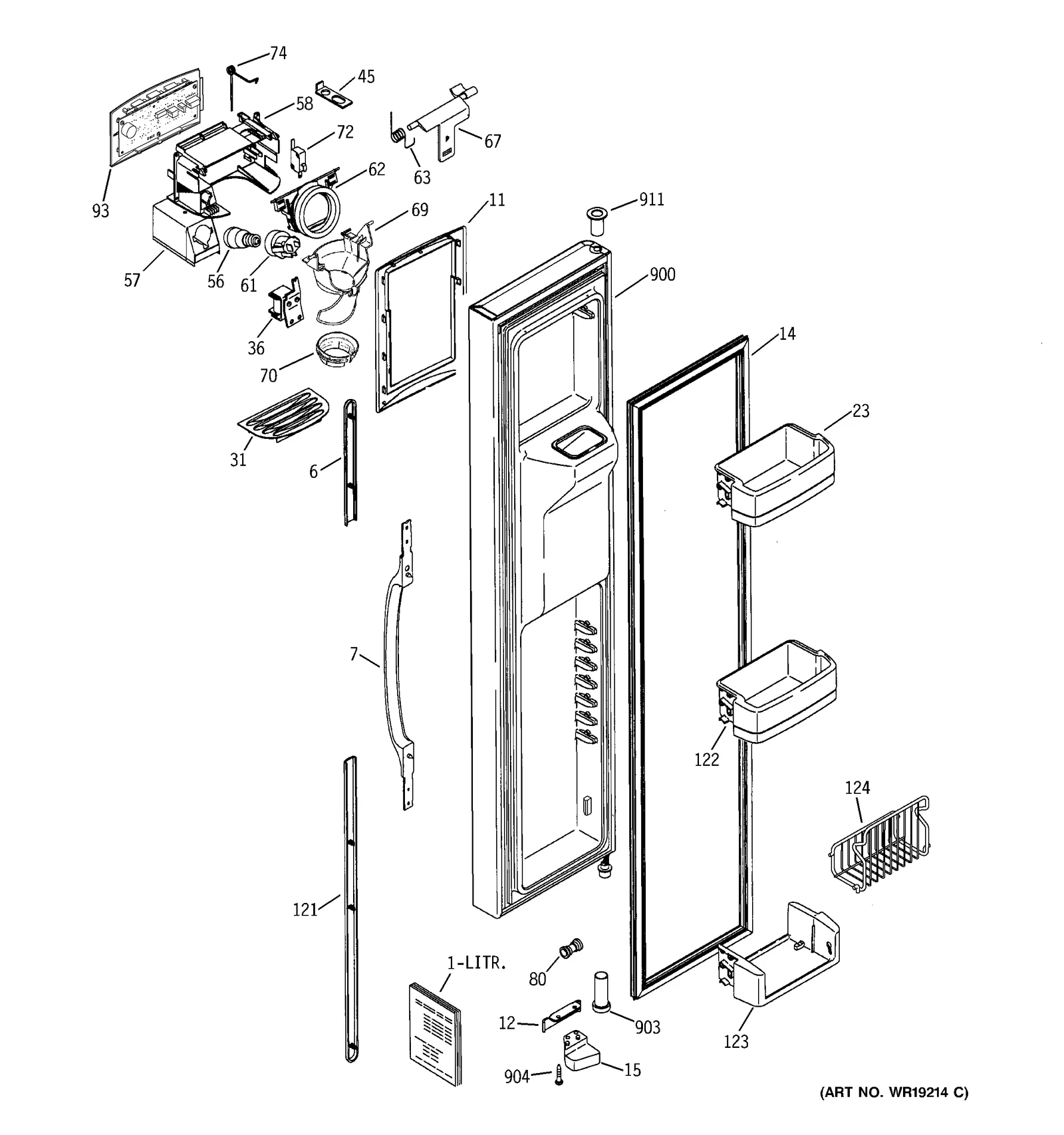

Diagram
FREEZER DOOR
Parts in FREEZER DOOR
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51361 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60187 PM GUIDE OWNERS | - |
| 6 |  | TAIL HANDLE SXS BISQUE | - |
| 7 | | HANDLE SXS BISQUE | - |
| 11 |  | WR38X10364replaces WR38X10229 RECESS TRIM CLAD BISQUE | - |
| 12 | | STOP DOOR BISQUE | Discontinued |
| 14 |  | WR24X10156replaces WR24X10065 GASKET DOOR FZ WH | $75.98 Part Advantage |
| 15 |  | CAM CLOSURE FZ WHITE | - |
| 23 |  | MODULE SHELF FZ FIXED | $27.20 RepairClinic |
| 31 | | WR17X11656replaces WR17X10897 GRILLE RECESS BQ | - |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 58 | – | WR17X11121 HOUSING SHIELD DISP BQ | - |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | FUNNELL ICE BQ DISPLAY BISQUE | $39.21 ApplianceParts Pro |
| 70 | | WR17X11270NLA EXTENSION FUNNEL ICE | Discontinued |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | WR02X11330replaces WR02X10471 CONNECTOR UNION 5/16 | $4.50 Part Advantage |
| 93 | – | WR55X10251 INTERFACE DISP ASM BQ | - |
| 121 |  | TAIL HANDLE SXS | - |
| 122 |  | MODULE SHELF FZ | $77.39 Parts Dr |
| 123 | | MODULE SUPPORT FZ | $47.48 ApplianceParts Pro |
| 124 |  | WR21X10111replaces WR21X10053 BASKET WIRE TILTOUT FZ | $45.37 ApplianceParts Pro |
| 900 | – | WR78X10429 DOOR FOAM ASM FZ BQ | - |
| 903 |  | THIMBLE DOOR BTM FZ BISQUE | - |
| 904 |  | WR01X10610replaces WR01X2134 SCR 10-32 PNT 1.0 S LW | $2.27 Parts Dr |
| 911 | | WR01X10957replaces WR01X10236 THIMBLE DOOR TOP BISQUE | - |
