Model
GE GSS25LGPAWW
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25LGPAWWRefrigerator
9 diagrams249 parts
Parts Sections (9)
Diagram

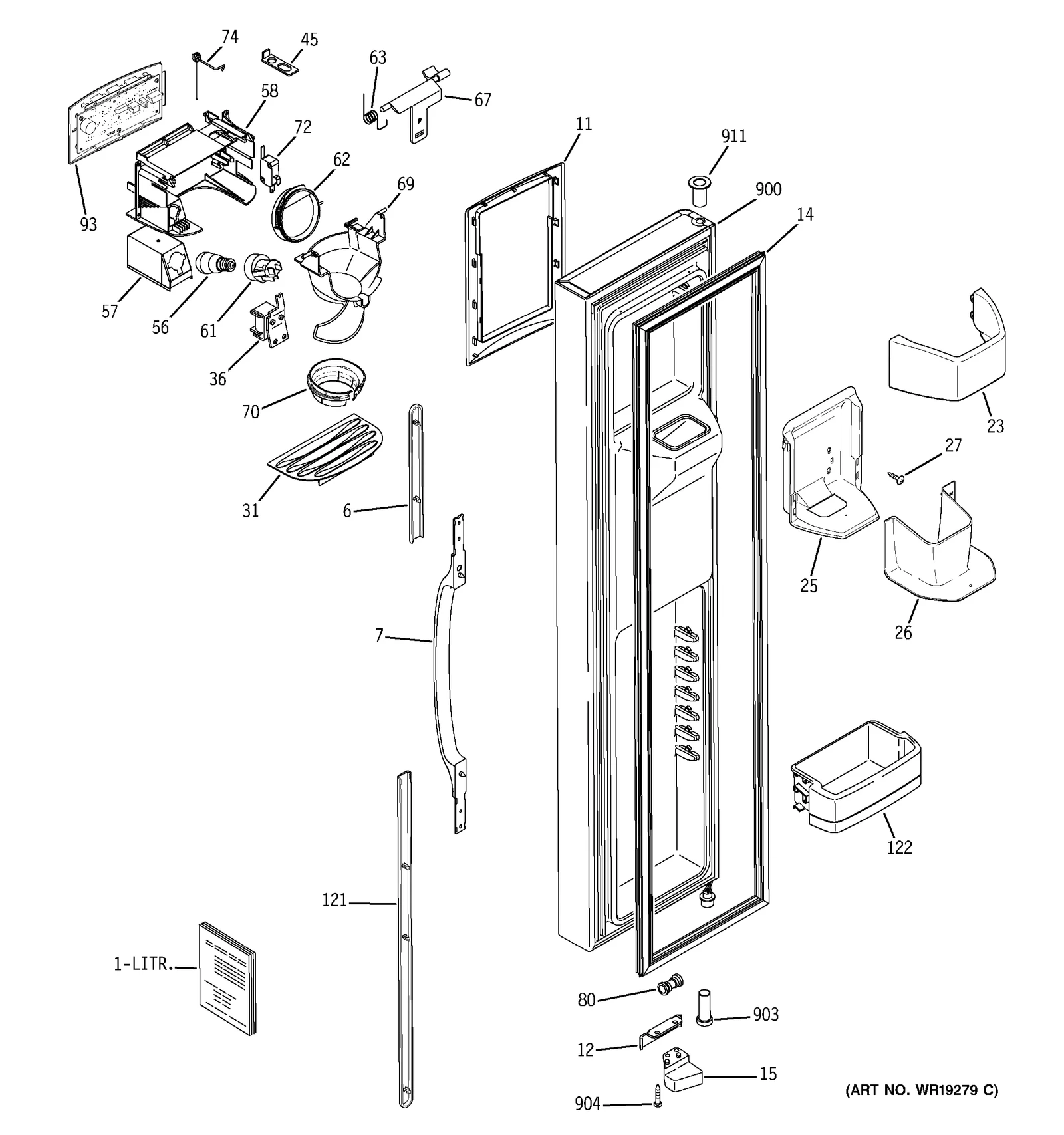

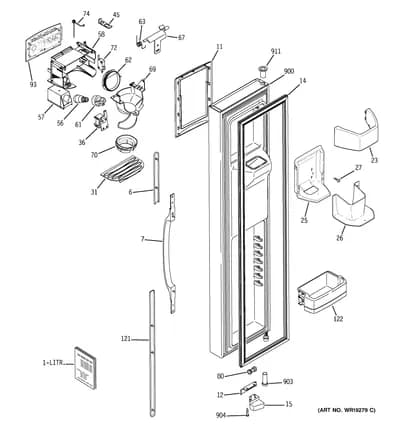

FREEZER DOOR
Parts in FREEZER DOOR
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-46040 PM HELPFUL HINTS LABEL | - |
| 1 | – | 31-51456 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60240 PM GUIDE OWNERS | - |
| 6 |  | TAIL HANDLE SXS WHITE | - |
| 7 |  | HANDLE SXS WHITE | $41.23 Parts Dr |
| 11 | | RECESS TRIM FLAT | - |
| 12 |  | WR02X13424replaces WR02X10649 STOP DOOR WH | - |
| 14 |  | WR24X10156replaces WR24X10065 GASKET DOOR FZ WH | $75.98 Part Advantage |
| 15 |  | CAM CLOSURE FZ WHITE | - |
| 23 | | WR71X10493NLA MODULE FZ UPPER | Discontinued |
| 25 | | SEAT BUCKET | - |
| 26 | | GUIDE ICE | - |
| 27 | | SCR 8-18 AB OVP 7/8 SS | $4.81 ApplianceParts Pro |
| 31 |  | WR17X11654replaces WR17X10810 GRILLE RECESS WH | $13.16 Parts Dr |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 58 |  | WR49X10227replaces WR17X11081 HOUSING SHIELD DISP WH | $59.85 Parts Dr |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | FUNNEL ICE DISPLAY | $37.82 Parts Dr |
| 70 | | WR17X11265NLA EXTENSION FUNNEL ICE WH | Discontinued |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | INTERFACE DISP ASM WH | - |
| 121 | | TAIL HANDLE SXS WHITE | - |
| 122 |  | MODULE SHELF FZ | $77.39 Parts Dr |
| 900 | | WR78X10819NLA DOOR FOAM ASM FZ WH | Discontinued |
| 903 |  | THIMBLE DOOR BTM FZ WHITE | - |
| 904 |  | WR01X10611replaces WR01X10316 SCREW DOOR STOP | $3.47 RepairClinic |
| 911 |  | WR01X10955replaces WR01X10207 THIMBLE DOOR TOP WHITE | - |
