Model
GE GSS25LSMEBS
Refrigerator
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25LSMEBSRefrigerator
9 diagrams257 parts
Parts Sections (9)
Diagram

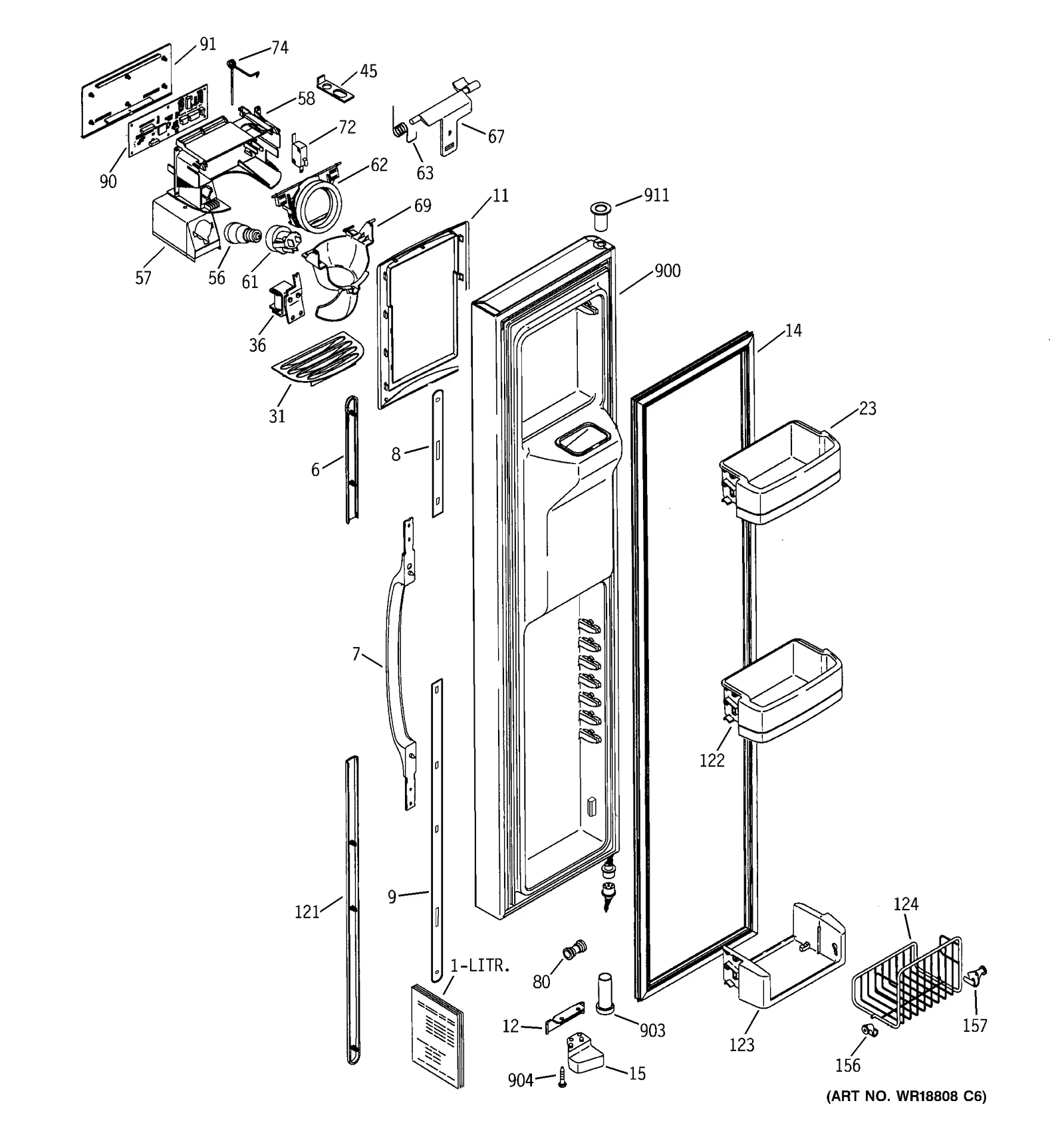

FREEZER DOOR
Parts in FREEZER DOOR
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51361 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60159 PM GUIDE OWNERS | - |
| 6 |  | WR12X10151NLA TAIL HANDLE SXS BLACK | Discontinued |
| 7 | | WR12X10132NLA HANDLE SXS ASSY BLACK | Discontinued |
| 8 | | TRIM HANDLE SXS | - |
| 9 | | TRIM HANDLE SXS | - |
| 11 |  | RECESS TRIM BLACK | - |
| 12 |  | WR02X13425replaces WR02X10814 STOP DOOR BLACK | $13.84 RepairClinic |
| 14 |  | WR24X20455replaces WR24X10072 GASKET DOOR FZ BLACK | $63.40 Part Advantage |
| 15 |  | CAM CLOSURE FZ BLACK | $10.52 Parts Dr |
| 23 |  | MODULE SHELF FZ FIXED | $27.20 RepairClinic |
| 31 |  | WR17X11655replaces WR17X10895 GRILLE RECESS | $17.81 RepairClinic |
| 36 |  | WR62X10055replaces WR62X10020 SOLENOID ASSY | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X10675 BULB RECS 12V | $13.61 Part Advantage |
| 57 |  | REFLECTOR LIGHT | - |
| 58 |  | WR17X11170replaces WR17X11077 HOUSING SHIELD DISPLAY BLACK | $13.52 Part Advantage |
| 61 |  | WR2X9561replaces WR02X9561 LAMP SOCKET | $13.89 Parts Dr |
| 62 |  | WR17X11653replaces WR17X3093 DOOR RECESS ASSY | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 |  | WR17X11267replaces WR17X11148 FUNNEL ICE DISP BK | $28.96 Part Advantage |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | WR02X11330replaces WR02X10471 CONNECTOR UNION 5/16 | $4.50 Part Advantage |
| 90 | – | WR55X10031 BOARD ASM DISP | - |
| 91 | | WR55X10071NLA CONTROL DISP ASM | Discontinued |
| 121 | | TAIL HANDLE SXS BLACK | - |
| 122 |  | MODULE SHELF FZ | $77.39 Parts Dr |
| 123 | | MODULE SUPPORT FZ | $47.48 ApplianceParts Pro |
| 124 |  | WR21X10111replaces WR21X10024 BASKET WIRE TILTOUT FZ | $45.37 ApplianceParts Pro |
| 156 | | HINGE TILTOUT FZ LH | - |
| 157 | | HINGE TILTOUT FZ RH | - |
| 900 | – | WR78X10499 DOOR FOAM ASM FZ SS | - |
| 903 |  | THIMBLE DOOR BTM FZ BLACK | $9.95 ApplianceParts Pro |
| 904 |  | WR01X10610replaces WR01X2134 SCR 10-32 PNT 1.0 S LW | $2.27 Parts Dr |
| 911 |  | WR01X10956replaces WR01X10233 THIMBLE DOOR TOP BLACK | $10.95 ApplianceParts Pro |
