Model
GE GSS25LSWCSS
Refrigerator
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGE
GSS25LSWCSSRefrigerator
10 diagrams274 parts
Parts Sections (10)
Diagram

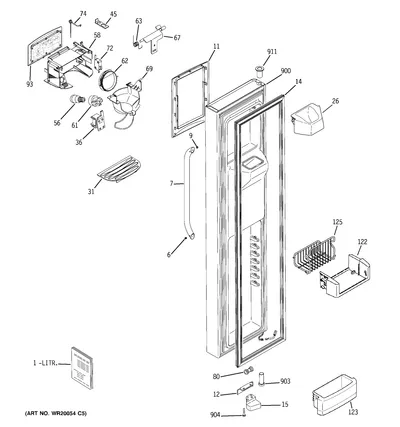

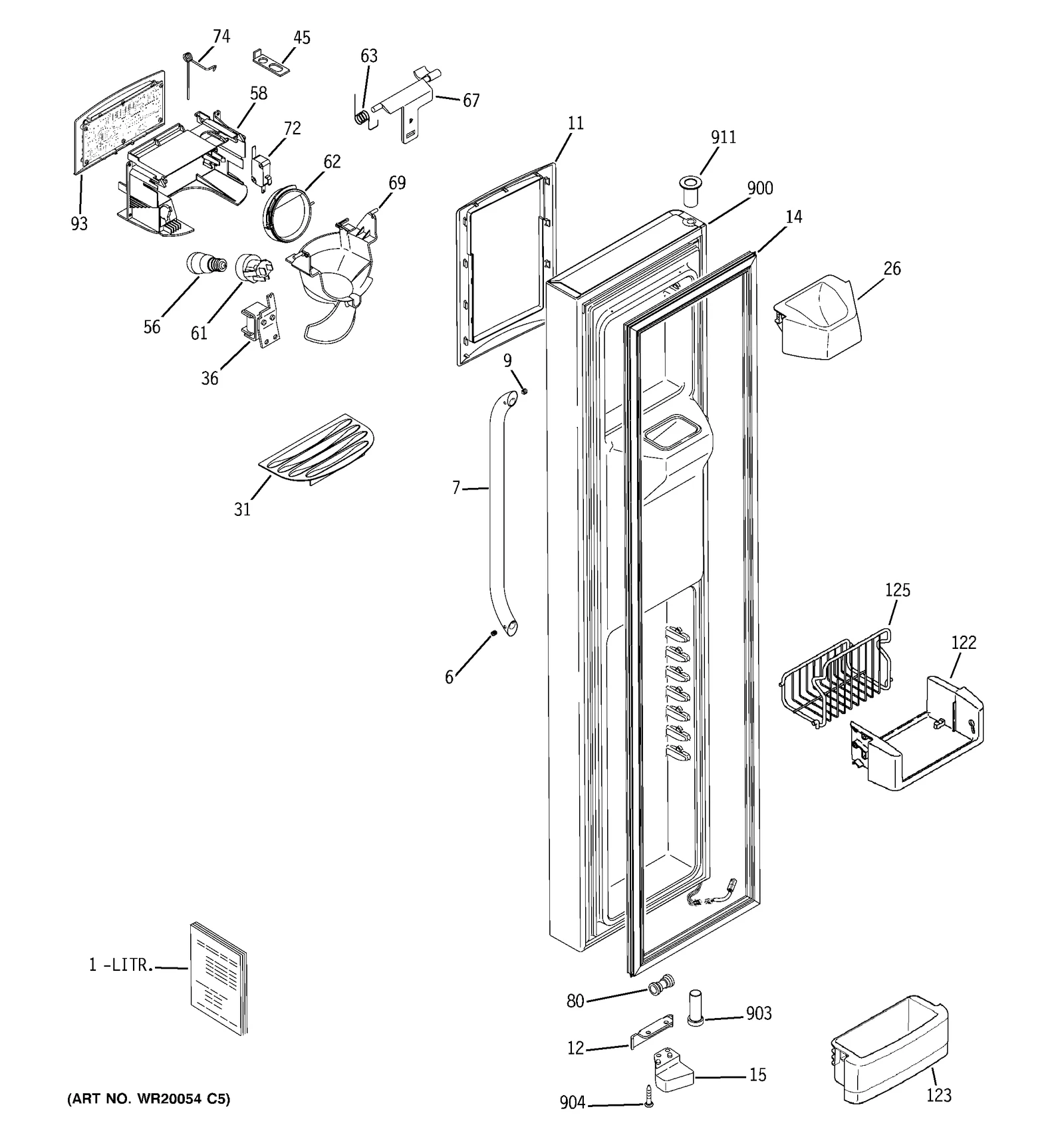

FREEZER DOOR
Parts in FREEZER DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 31-51660 PM MINI MANUAL WIRING | - |
| 1 | – | 49-60486 PM GUIDE OWNERS | - |
| 6 |  | SET SCREW | $5.14 Part Advantage |
| 7 |  | TUBULUR HANDLE ASM | $163.50 PartSelect |
| 9 |  | WR02X12800replaces WR02X12390 FASTENER HANDLE SS | $11.62 Part Advantage |
| 11 |  | TRIM RECESS ASM SS | $141.83 PartSelect |
| 12 |  | STOP DOOR BLACK | $15.15 Part Advantage |
| 14 |  | GASKET DOOR FZ WH** | $75.98 Part Advantage |
| 15 |  | CAM CLOSURE FZ BLACK | $10.46 Parts Dr |
| 26 | | ICE GUIDE | $75.95 ApplianceParts Pro |
| 31 |  | GRILLE RECESS BK | $17.81 RepairClinic |
| 36 |  | SOLENOID ASM | $41.58 Part Advantage |
| 45 |  | WR2X8818replaces WR02X8818 RETAINER RECESS DOOR | $6.72 ApplianceParts Pro |
| 56 |  | WR01X37886replaces WR02X12208 LIGHT DISPENSER | $13.61 Part Advantage |
| 58 |  | WR49X10228replaces WR17X12116 HOUSING SHIELD DISP | $55.58 Part Advantage |
| 61 |  | WR2X9561replaces WR02X12007 SOCKET LAMP | $13.89 Parts Dr |
| 62 |  | DOOR RECESS ASM | $12.29 Part Advantage |
| 63 |  | SPRING RECESS DOOR | $5.26 Part Advantage |
| 67 |  | REFRIGERATOR RECESS DOOR CRANK | $4.77 Parts Dr |
| 69 | | WR49X10228replaces WR17X12084 FUNNEL ICE DISP BK | $55.58 Part Advantage |
| 72 |  | WR23X10783replaces WR23X10224 SWITCH | $32.20 Part Advantage |
| 74 |  | SPRING FUNNEL | Discontinued |
| 80 |  | UNION CONNECTOR | $4.50 Part Advantage |
| 93 | | WR55X10894replaces WR55X10708 INTERFACE DISPENSER ASM | - |
| 122 |  | MODULE SUPPORT FZ | $69.95 ApplianceParts Pro |
| 123 |  | MODULE SHELF FZ FIXED | $83.42 PartSelect |
| 125 |  | BASKET WIRE TILTOUT FZ | $57.48 ApplianceParts Pro |
| 900 | – | WR78X12000 DOOR FOAM ASM FZ | - |
| 903 |  | THIMBLE DOOR BTM FZ BLACK | $9.95 ApplianceParts Pro |
| 904 |  | WR01X10611replaces WR01X10582 SCR 10-16 | $3.47 RepairClinic |
| 911 |  | WR01X10956replaces WR01X10233 THIMBLE DOOR TOP BLACK | $10.95 ApplianceParts Pro |
